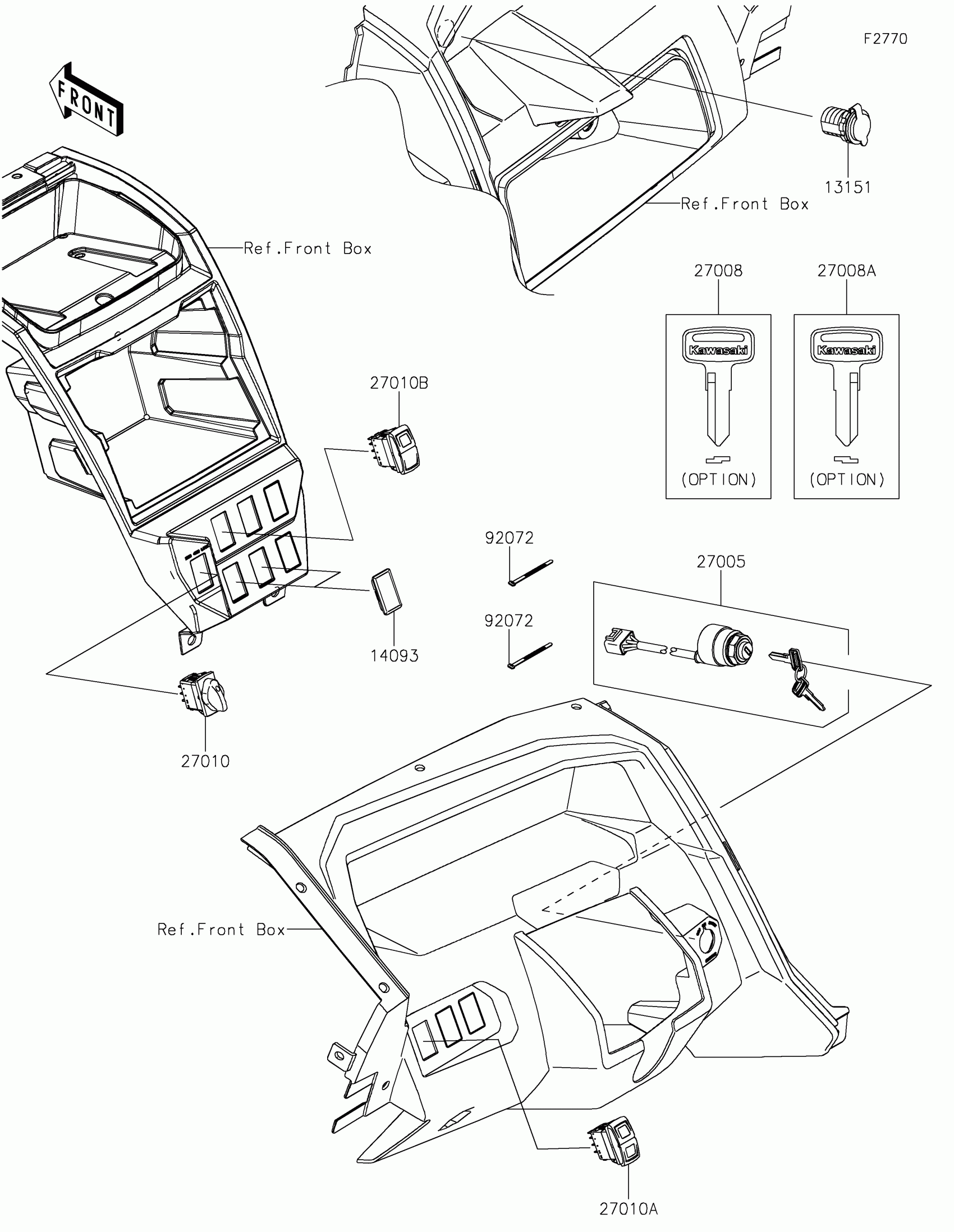

Kawasaki Teryx KRX®4 1000 SE Ignition Switch Diagram

#

Description
Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$11.56

14093

COVER,SWITCH

14093-1202

$2.02

27005

SWITCH-ASSY-IGNITION

27005-0643

$79.99

27008

KEY-LOCK,BLANK

27008-1153

$14.13

27008A

KEY-LOCK,BLANK

27008-1157

$14.13

27010

SWITCH,2WD/4WD

27010-0902

$25.92

27010A

SWITCH,HEAD LIGHT

27010-0903

$71.61

27010B

SWITCH,POWER MODE

27010-0904

$86.09

92072

BAND,L=123

92072-030

$3.97
