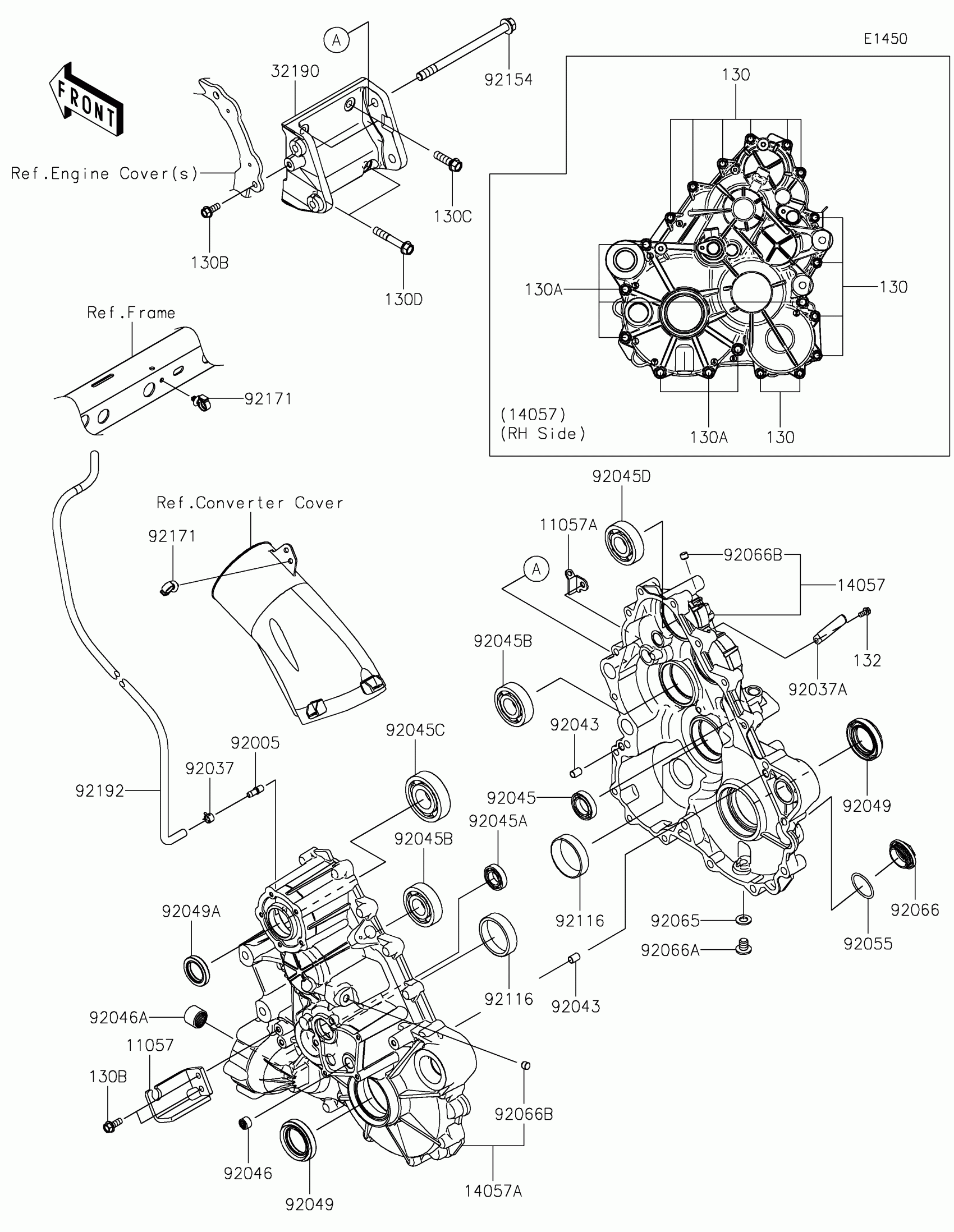

Kawasaki Teryx KRX®4 1000 SE Gear Box Diagram

#

Description
Price

11057

BRACKET,CABLE

11057-1898

$8.80

11057A

BRACKET

11057-4094

$2.46

14057

CASE-COMP-GEAR

14057-0023

$373.99

14057A

CASE-COMP-GEAR

14057-0024

$631.69

32190

BRACKET-ENGINE

32190-0776

$379.87

92005

FITTING,BREATHER

92005-1127

$16.10

92037

CLAMP,TUBE

92037-1505

$3.78

92037A

CLAMP

92037-1993

$4.37

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92045

BEARING-BALL,#6905

92045-036

$24.62

92045A

BEARING-BALL,6904

92045-0705

$21.00

92045B

BEARING-BALL,6305RSH2

92045-0899

$30.06

92045C

BEARING-BALL,TMB306C3

92045-0900

$29.58

92045D

BEARING-BALL,6305

92045-0947

$17.61

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$12.37

92046A

BEARING-NEEDLE

92046-0039

$22.59

92049

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

$10.74

92049A

SEAL-OIL,HTC 30X45X8

92049-0848

$12.97

92055

RING-O,35.8MM

92055-1281

$5.84

92065

GASKET,12X22X2

92065-097

$0.76

92066

PLUG,36X7.5

92066-0744

$6.54

92066A

PLUG,12X15

92066-0943

$14.33

92066B

PLUG

92066-1013

$2.17

92116

BEARING-ROLLER,HC30305J

92116-0011

$9.66

92154

BOLT,12X175

92154-3859

$17.36

92171

CLAMP

92171-0453

$3.12

92192

TUBE,5.8X10.8X935

92192-1921

$15.44

130

BOLT-FLANGED,8X45

130BA0845

$1.39

130A

BOLT-FLANGED,10X55

130BA1055

$1.92

130B

BOLT-FLANGED,8X20

130CA0820

$1.47

130C

BOLT-FLANGED,10X35

130CA1035

$5.35

130D

BOLT-FLANGED,10X60

130CA1060

$3.14

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12
