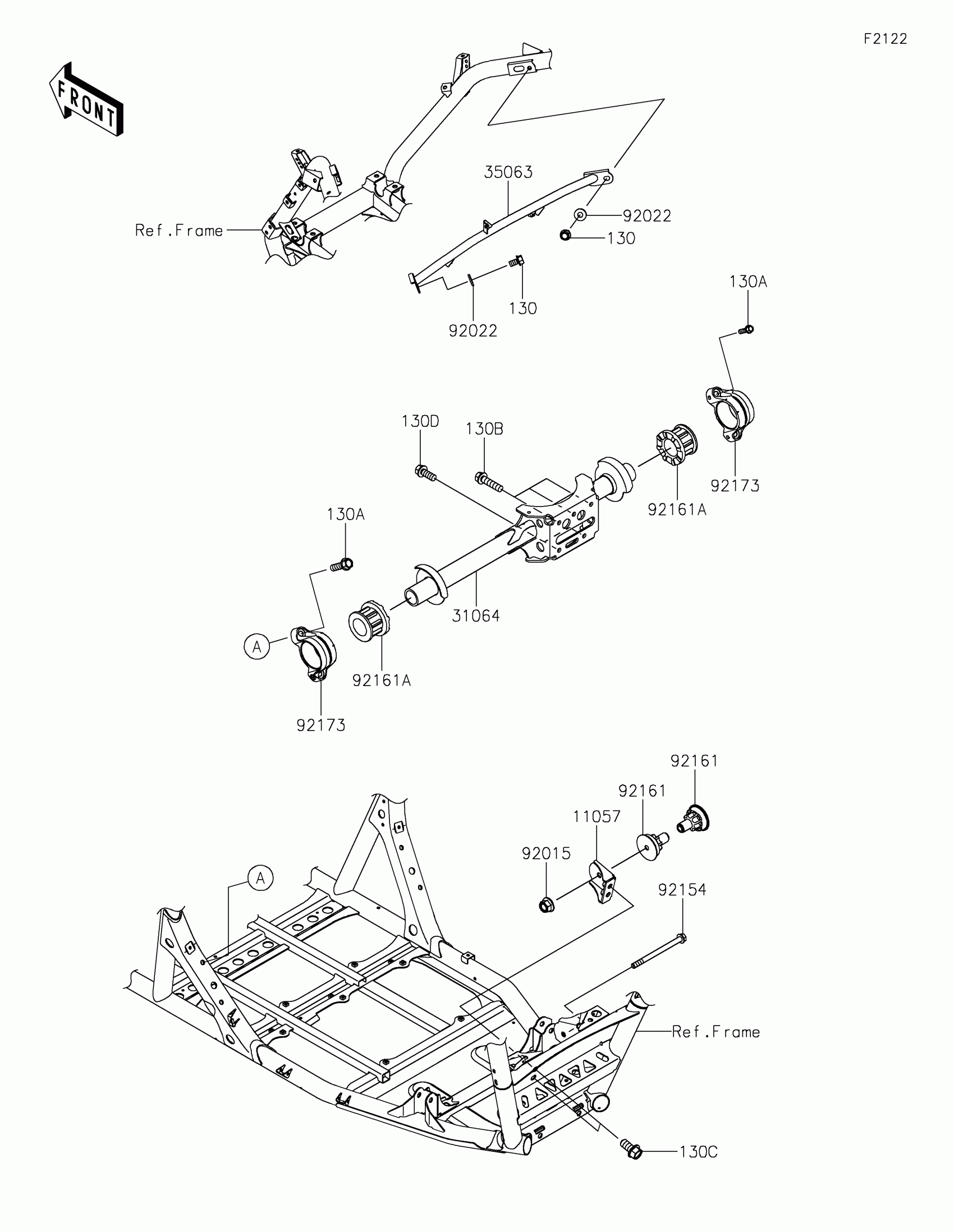

Kawasaki Teryx KRX®4 1000 SE Engine Mount Diagram

Description

Price

11057

BRACKET,RR

11057-2103

$10.12

31064

PIPE-COMP,FR

31064-0732

$271.46

35063

STAY,UPP

35063-1466

$23.81

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92022

WASHER,8.2X19X2

92022-1533

$4.85

92154

BOLT,FLANGED,12X160

92154-3916

$18.22

92161

DAMPER

92161-2171

$35.55

92161A

DAMPER

92161-2205

$23.11

92173

CLAMP

92173-2399

$58.57

130

BOLT-FLANGED,8X14

130BA0814

$1.78

130A

BOLT-FLANGED,10X35

130CA1035

$5.35

130B

BOLT-FLANGED,10X40

130CA1040

$2.29

130C

BOLT-FLANGED,12X25

130CA1225

$6.16

130D

BOLT-FLANGED,10X25

130CB1025

$2.29
