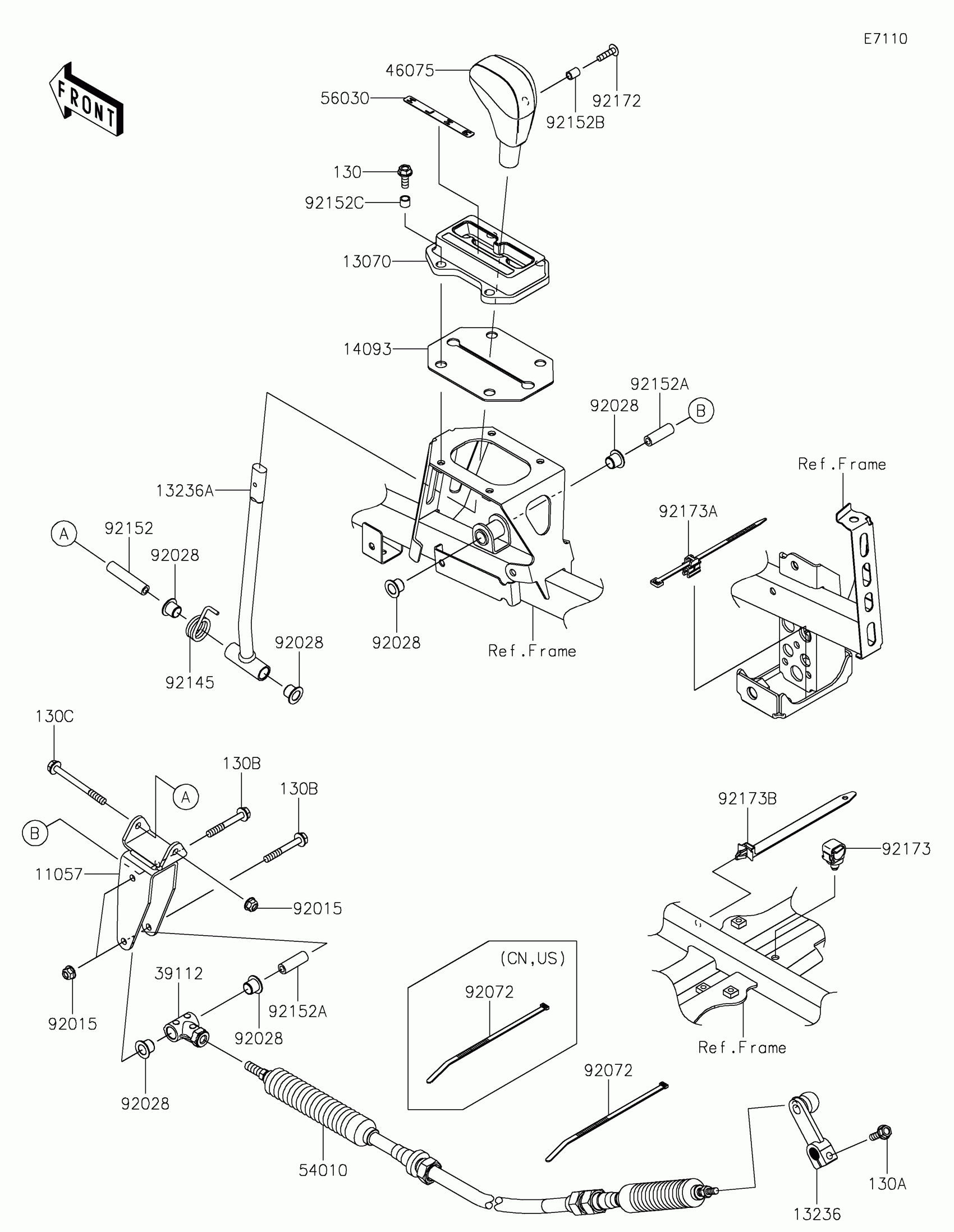

Kawasaki Teryx KRX®4 1000 SE Control Diagram

#

Description
Price

11057

BRACKET,LEVER

11057-7665

$13.05

13070

GUIDE

13070-0894

$9.02

13236

LEVER-COMP,CHANGE LEVER

13236-0708

$46.03

13236A

LEVER-COMP

13236-0817

$45.57

14093

COVER,HEAT GUARD

14093-1245

$2.27

39112

RODEND-TIE

39112-0036

$21.80

46075

GRIP

46075-0569

$21.39

54010

CABLE

54010-0650

$118.66

56030

LABEL,POSITION

56030-1421

$1.54

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92028

BUSHING

92028-1507

$4.16

92072

BAND,L=292.1

92072-3509

Unavailable

92145

SPRING

92145-1839

$4.64

92152

COLLAR,6.0X10X47

92152-1517

$7.32

92152A

COLLAR,6.0X10X30

92152-1518

$5.25

92152B

COLLAR,5.6X8X10.5

92152-1545

$2.19

92152C

COLLAR,6.8X9.2X8.8

92152-2863

$1.49

92172

SCREW,5X20

92172-2081

$0.76

92173

CLAMP,12MM DIA.

92173-0736

$4.01

92173A

CLAMP,W/EDGE CLIP,DIA.6-45

92173-1827

$1.93

92173B

CLAMP

92173-1980

$2.29

130

BOLT-FLANGED,6X18

130BB0618

$1.54

130A

BOLT-FLANGED,6X20

130CA0620

$1.41

130B

BOLT-FLANGED,6X45

130CA0645

$1.29

130C

BOLT-FLANGED,6X65

130CA0665

$1.49

92072

BAND,L=292.1

92072-3509

Unavailable
