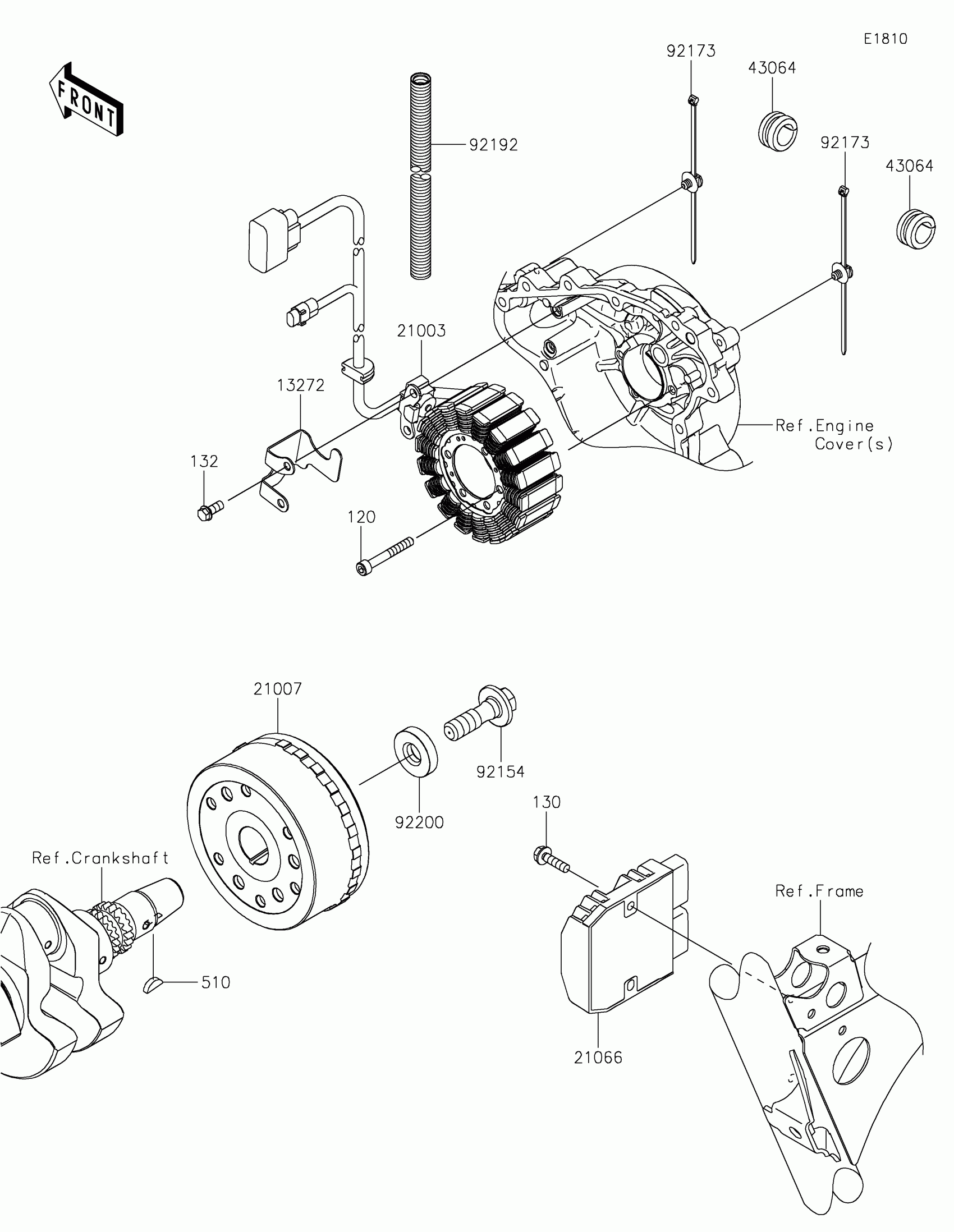

Kawasaki Teryx KRX®4 1000 eS Special Edition Generator Diagram

Description

Price

13272

PLATE,LEAD WIRE

13272-2627

$2.63

21003

STATOR

21003-0196

$957.36

21007

ROTOR

21007-0685

$640.85

21066

REGULATOR-VOLTAGE

21066-0771

$312.48

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

92154

BOLT,FLANGED,14X45

92154-3915

$15.92

92173

CLAMP

92173-2259

$0.69

92192

TUBE,CONVOLUTED,10.7X14.1X140

92192-2521

$9.05

92200

WASHER,14X36X8

92200-2240

$7.88

120

BOLT-SOCKET,6X45

120CA0645

$1.73

130

BOLT-FLANGED,6X22

130BA0622

$1.00

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

510

KEY-WOODRUFF

510A4200

$2.04
