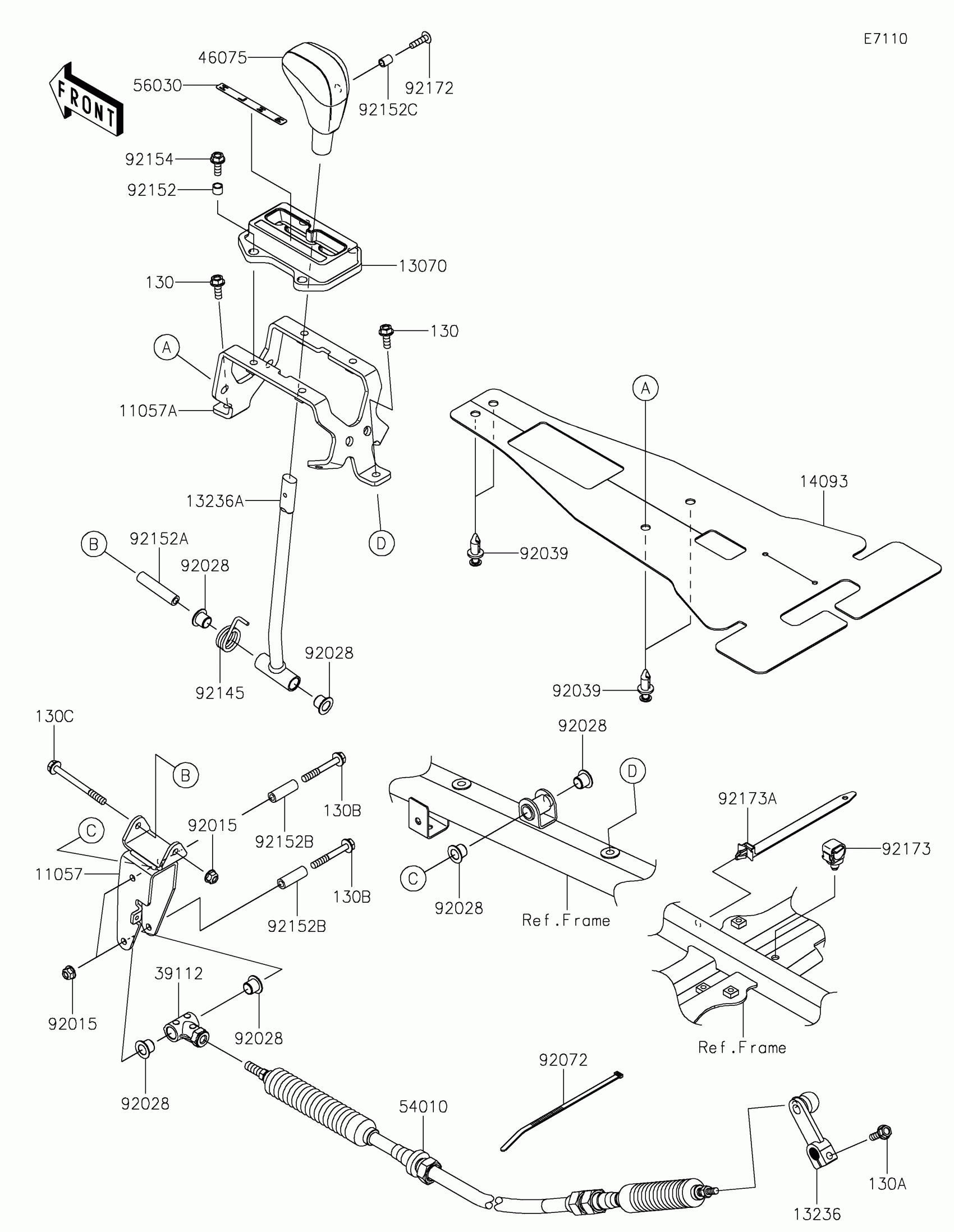

Kawasaki TERYX KRX® 1000 SPECIAL EDITION Control Diagram

Description

Price

11057

BRACKET,LEVER

11057-1900

$21.51

11057A

BRACKET,GUIDE

11057-1901

$32.89

13070

GUIDE

13070-0894

$9.02

13236

LEVER-COMP,CHANGE LEVER

13236-0708

$46.03

13236A

LEVER-COMP

13236-0817

$45.57

14093

COVER,HEAT GUARD

14093-0845

$5.71

39112

RODEND-TIE

39112-0036

$21.80

46075

GRIP

46075-0569

$21.39

54010

CABLE

54010-0629

Unavailable

56030

LABEL,POSITION

56030-1421

$1.54

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92028

BUSHING

92028-1507

$3.99

92039

RIVET

92039-0776

$0.80

92072

BAND,L=292.1

92072-3509

Unavailable

92145

SPRING

92145-1839

$4.64

92152

COLLAR

92152-1332

$3.19

92152A

COLLAR,6.0X10X47

92152-1517

$7.32

92152B

COLLAR,6.0X10X30

92152-1518

$4.97

92152C

COLLAR,5.6X8X10.5

92152-1545

$1.89

92154

BOLT,FLANGED,6X16

92154-0887

$1.24

92172

SCREW,5X20

92172-2081

$0.66

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-1980

$2.29

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X20

130CA0620

$1.22

130B

BOLT-FLANGED,6X45

130CA0645

$1.11

130C

BOLT-FLANGED,6X65

130CA0665

$1.28
