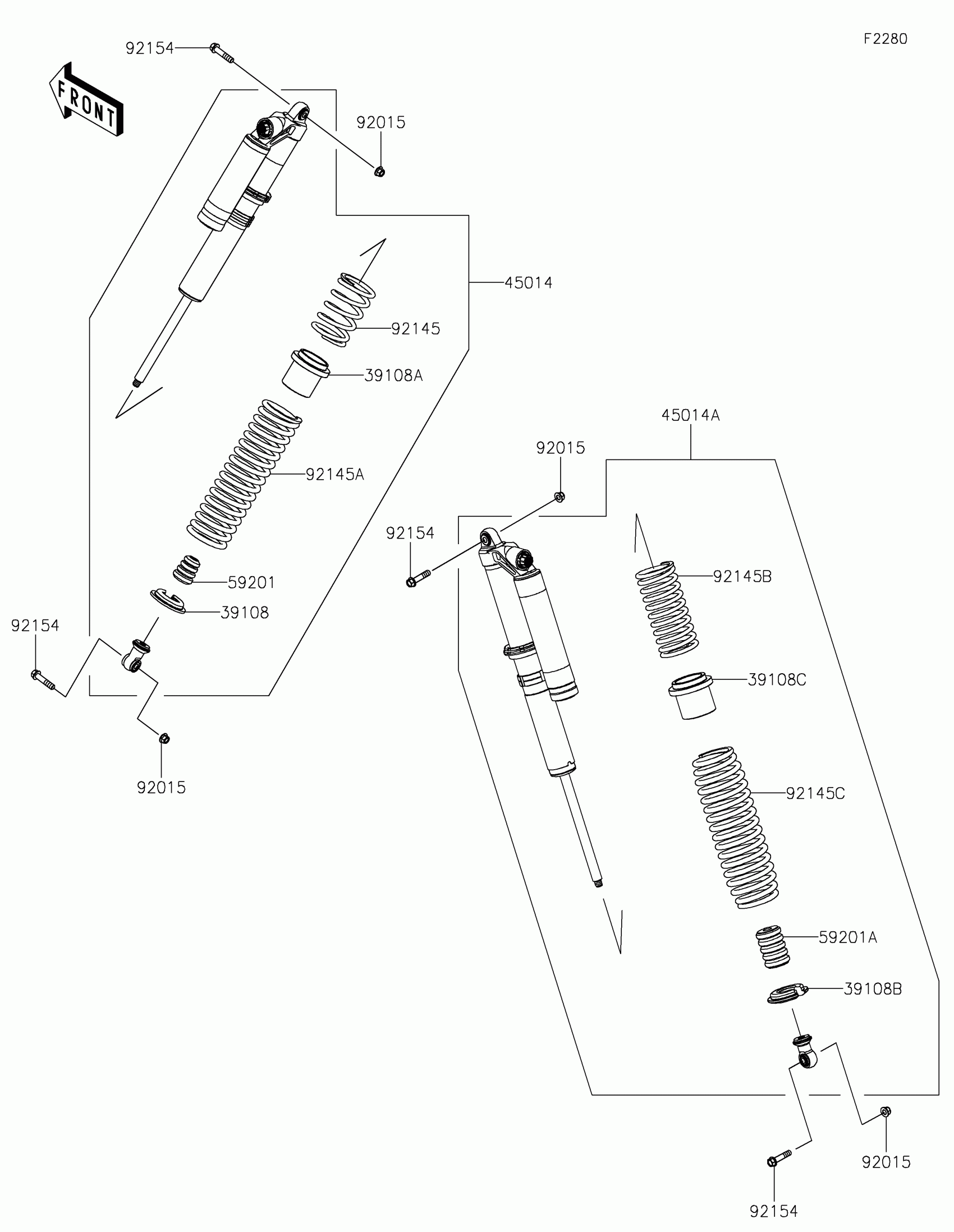

Kawasaki TERYX KRX® 1000 SE Shock Absorber(s) Diagram

Description

Price

39108

RETAINER-SPRING

39108-0015

$49.35

39108A

RETAINER-SPRING

39108-0016

$50.79

39108B

RETAINER-SPRING

39108-0017

$49.35

39108C

RETAINER-SPRING

39108-0018

$50.79

45014

SHOCKABSORBER,FR,SILVER

45014-0740-42P

$1,102.67

45014A

SHOCKABSORBER,RR,SILVER

45014-0741-42P

$1,186.76

59201

BUMPER

59201-0004

$61.69

59201A

BUMPER

59201-0005

$61.69

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92145

SPRING,TENDER,SILVER

92145-1952-42P

$50.31

92145A

SPRING,MAIN,SILVER

92145-1953-42P

$182.83

92145B

SPRING,TENDER,SILVER

92145-1954-42P

$101.34

92145C

SPRING,MAIN,SILVER

92145-1955-42P

$176.93

92154

BOLT,FLANGED,12X55

92154-0289

$7.52
