Description

Price

11057

BRACKET

11057-2767

$1.22

11057A

BRACKET

11057-2788

$3.98

13070

GUIDE

13070-0998

$5.75

13168

LEVER,STOP

13168-0883

$13.53

13168A

LEVER,SEAT ADJUST

13168-0884

$10.75

32046

BRACKET-SEAT,RAIL,RH

32046-0462

$43.24

32046A

BRACKET-SEAT,RAIL,LH

32046-0463

$16.31

53007

FRAME-SEAT

53007-0450

$83.33

53045

HOOK-ASSY,SEAT BOTTOM

53045-0039

$23.66

53061

BELT-SEAT,BUCKLE,PASSENGER

53061-0358

$32.38

53061A

BELT-SEAT,RETRACTOR

53061-0360

$159.72

53061B

BELT-SEAT,BUCKLE,DRIVER

53061-0365

$56.84

53066

SEAT-ASSY,BOTTOM,SIL+BLK+BLK

53066-0632-13B

$470.82

53066A

SEAT-ASSY,BOTTOM,BLACK+GRY+BLK

53066-0632-71U

$470.82

53066B

SEAT-ASSY,BACK,SIL+BLK+SIL

53066-0633-64L

$512.42

53066C

SEAT-ASSY,BACK,GRAY+BLK+GLD

53066-0633-71S

$532.27

92015

NUT,8MM

92015-1432

$5.21

92022

WASHER,6.5X16X2

92022-1565

$3.12

92043

PIN

92043-0991

$2.46

92122

ROLLER

92122-0564

$2.58

92139

BUSHING

92139-0230

$4.10

92145

SPRING,SEAT LATCH

92145-0022

$5.66

92145A

SPRING,ADJUST LEVER

92145-1858

$6.71

92154

BOLT,SOCKET,6X18

92154-0139

$1.51

92154A

BOLT,FLANGED,10X16

92154-2089

$7.25

92154B

BOLT,ADJUST LEVER

92154-3923

$37.72

92154C

BOLT,FLANGED,6X14

92154-3968

$1.69

92154D

BOLT,SOCKET,6X45

92154-4135

$2.12

92154E

BOLT,FLANGED,10X18

92154-7022

$2.24

92161

DAMPER,SEAT

92161-1489

$2.68

130

BOLT-FLANGED,6X16

130BA0616

$1.12

130A

BOLT-FLANGED,12X18

130BA1218

$2.29

130B

BOLT-FLANGED,12X22

130BA1222

$2.46

482

CIRCLIP-TYPE-E,4MM

482J4000

$1.19

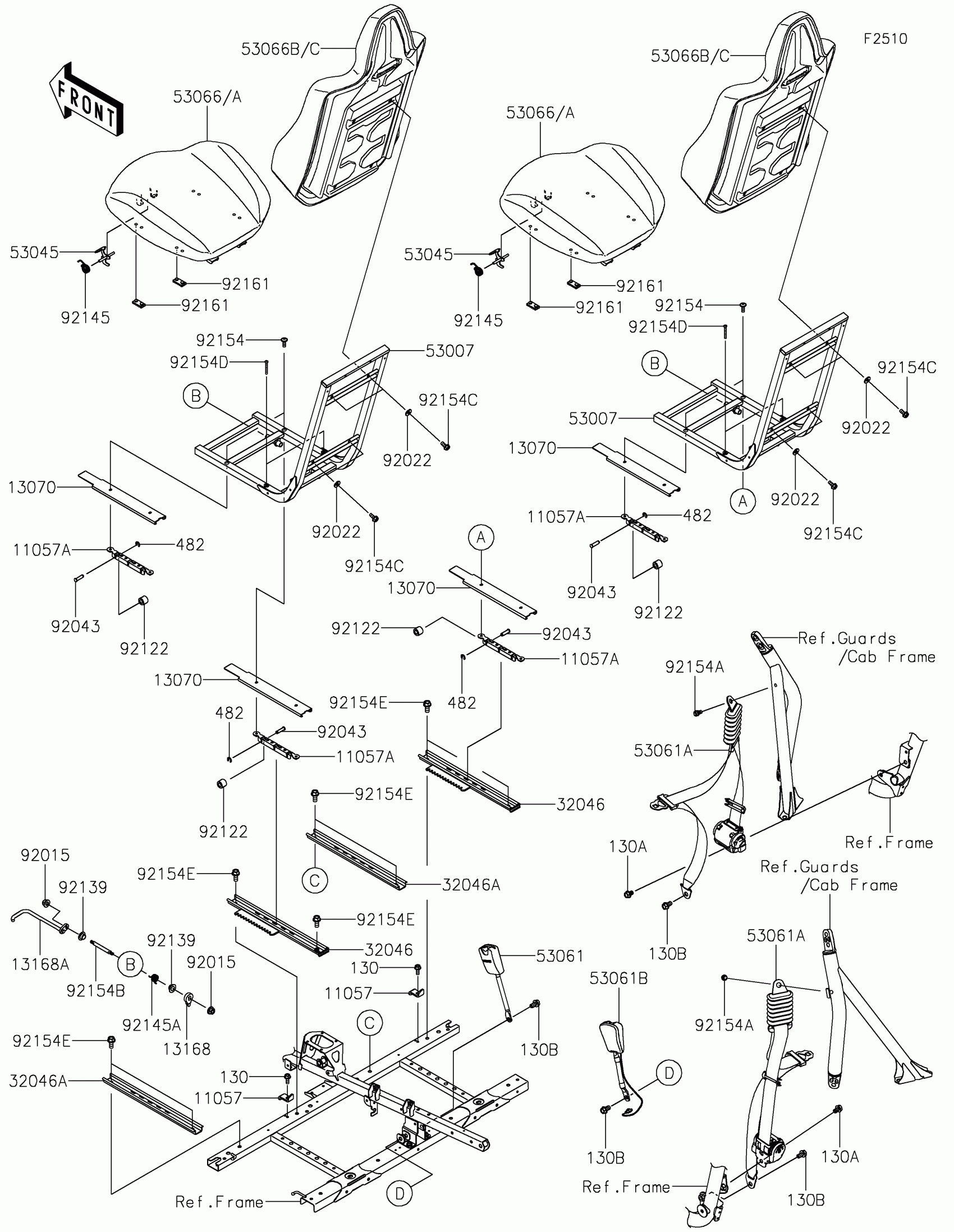

Kawasaki TERYX KRX® 1000 SE Seat Diagram
