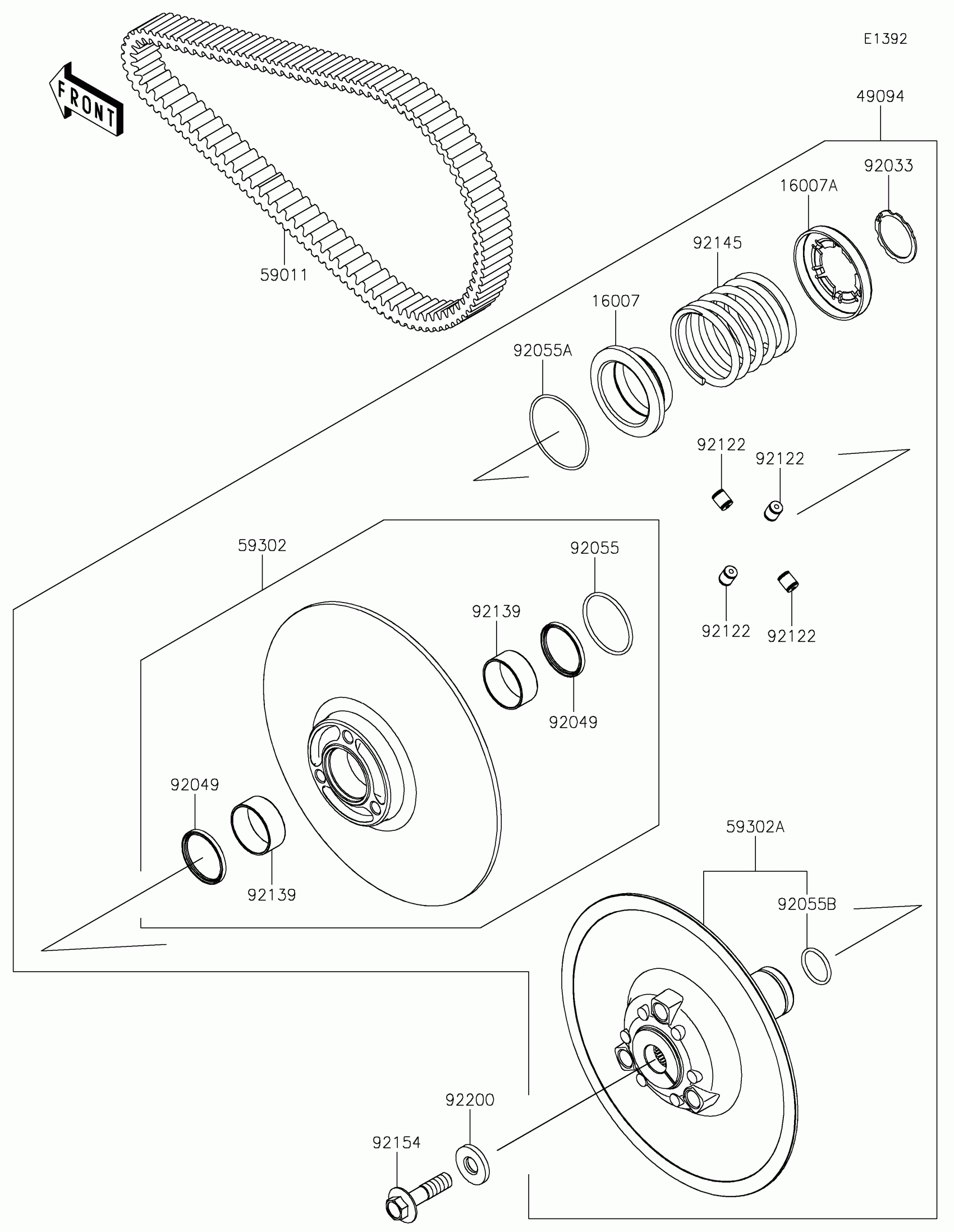

Kawasaki TERYX KRX® 1000 SE Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0754

$17.41

16007A

SEAT-SPRING,FIXED

16007-0755

$15.18

49094

CONVERTER-ASSY-DRIVEN

49094-0107

$866.48

59011

BELT,CVT

59011-0047

$209.85

59302

SHEAVE-COMP,MOVABLE

59302-0104

$466.40

59302A

SHEAVE-COMP,FIXED

59302-0109

$466.40

92033

RING-SNAP,41.5MM

92033-0801

$2.10

92049

SEAL-OIL,GD45X52X4 V1

92049-0821

$10.53

92055

RING-O,54.4X3.1

92055-0924

$3.49

92055A

RING-O,68.2X2.4

92055-0925

$3.92

92055B

RING-O,29X3.1

92055-0926

$3.25

92122

ROLLER

92122-0560

$24.22

92139

BUSHING

92139-0936

$26.33

92145

SPRING

92145-1856

$73.02

92154

BOLT,14X55

92154-3920

Unavailable

92200

WASHER

92200-2389

$9.19
