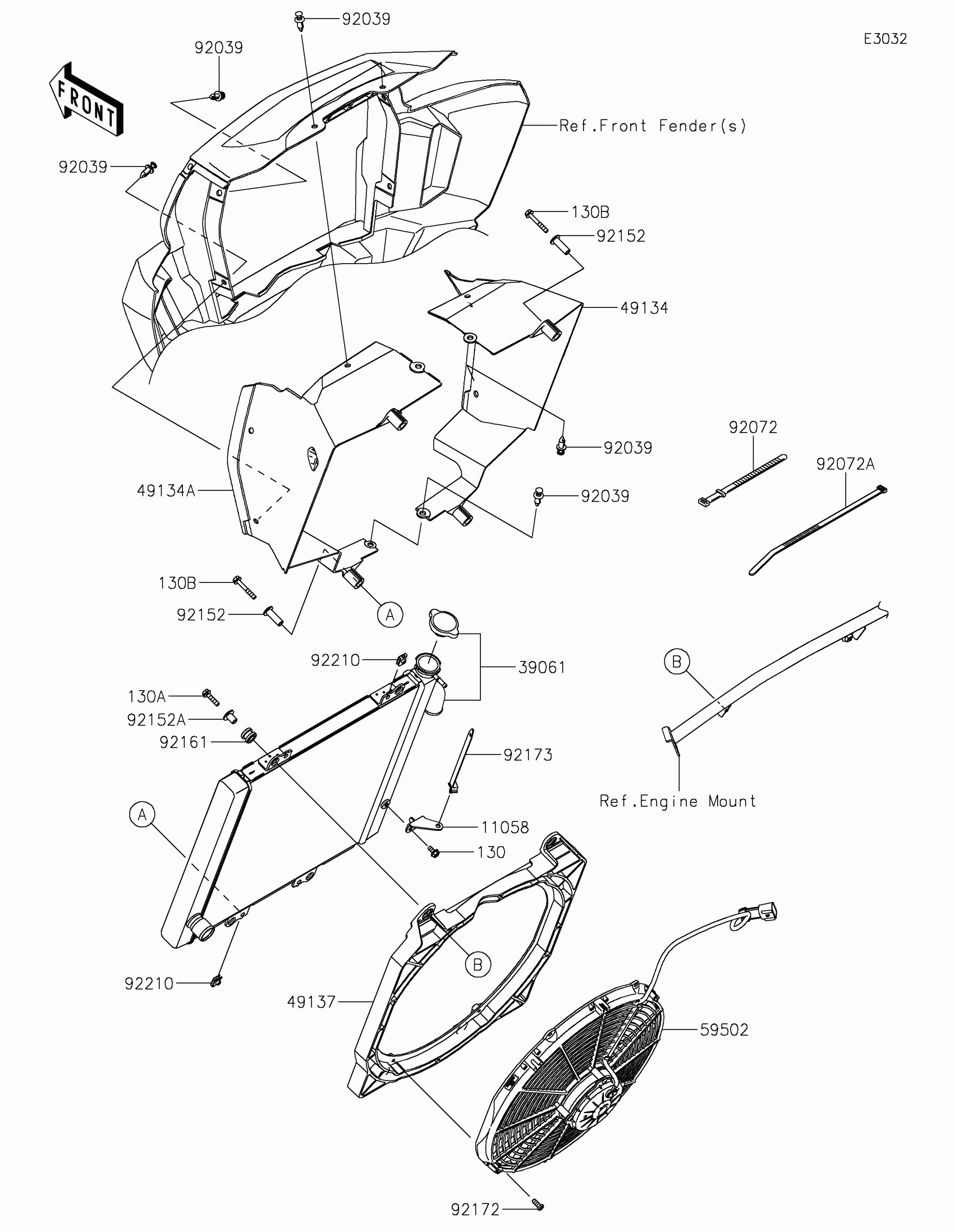

Kawasaki TERYX KRX® 1000 LIFTED EDITION Radiator Diagram

Description

Price

11058

BRACKET

11058-1983

$5.88

39061

RADIATOR-ASSY,WITH CAP

39061-0957

$758.63

49134

SHROUD,RH

49134-0001

$12.01

49134A

SHROUD,LH

49134-0002

$12.18

49137

SHROUD

49137-0010

$36.03

59502

FAN-ASSY

59502-0656

$224.31

92039

RIVET

92039-0776

$0.80

92072

BAND,L=186

92072-056

$3.81

92072A

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR

92152-1215

$7.27

92152A

COLLAR

92152-3845

$3.36

92161

DAMPER

92161-2578

$0.60

92172

SCREW,TAPPING,6X16

92172-1607

$1.25

92173

CLAMP

92173-1980

$2.29

92210

NUT

92210-0754

$1.47

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X25

130BA0625

$0.97

130B

BOLT-FLANGED,6X40

130BA0640

$0.97
