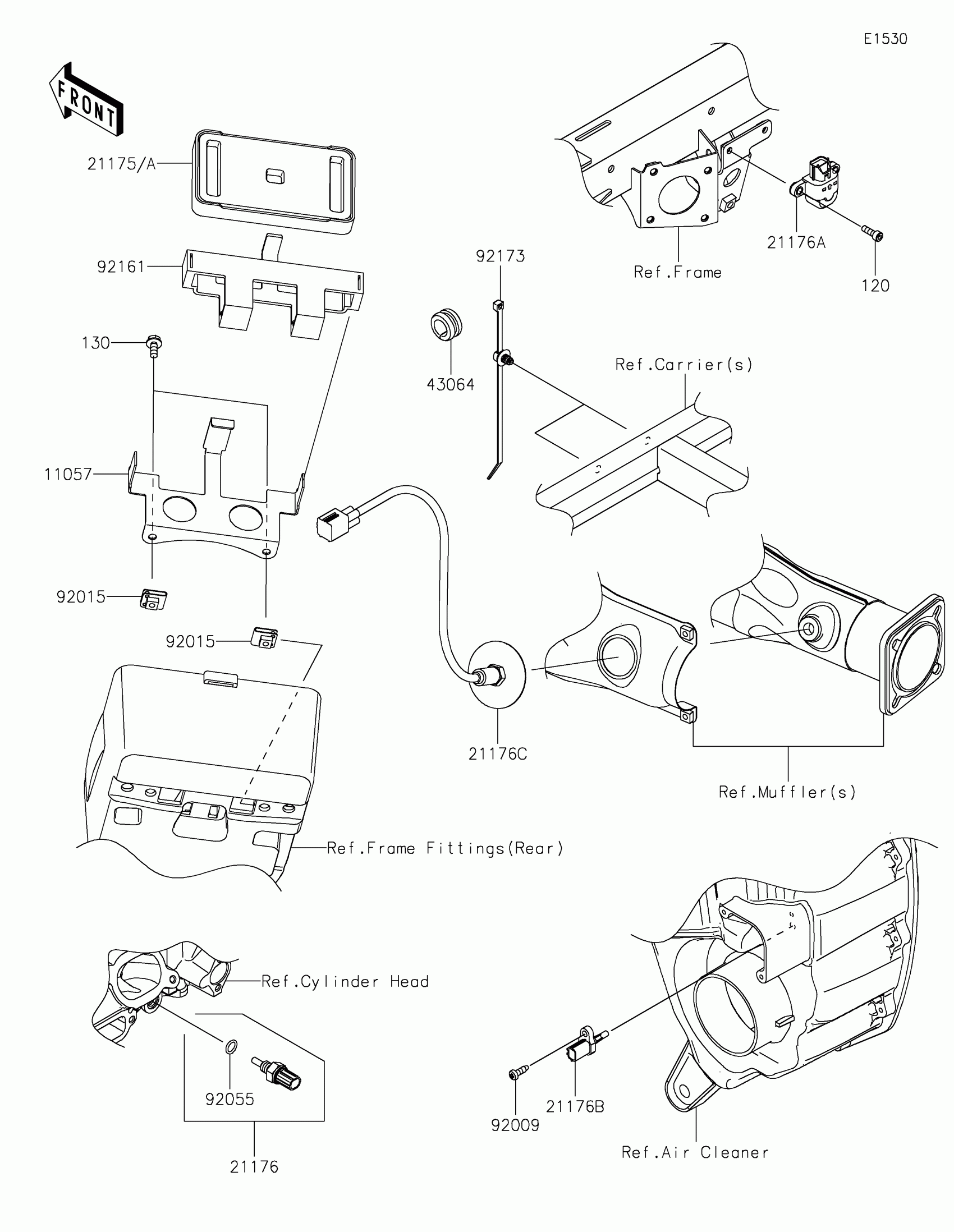

Kawasaki TERYX KRX® 1000 eS Fuel Injection Diagram

Description

Price

11057

BRACKET,ECU

11057-2230

$3.12

21175

CONTROL UNIT-ELECTRONIC

21175-1674

$883.17

21175A

CONTROL UNIT-ELECTRONIC

21175-1675

$883.17

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$79.06

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

21176C

SENSOR,OXYGEN

21176-0900

$307.27

43064

GROMMET,HOSE CLAMP

43064-007

$4.37

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92015

NUT,CLAMP,6MM

92015-1678

$4.37

92055

RING-O,9.5X1.9

92055-0016

$7.06

92161

DAMPER,ECU

92161-2183

$3.98

92173

CLAMP

92173-2188

$0.83

120

BOLT-SOCKET,5X16

120CA0516

$1.81

130

BOLT-FLANGED,6X14

130CA0614

$3.28
