Description

Price

11065

CAP

11065-0253

$3.08

13272

PLATE

13272-2677

$2.03

39007

ARM-SUSP,FR,UPP,LH,P.C.P.RED

39007-0424-57C

$325.90

39007A

ARM-SUSP,FR,UPP,RH,P.C.P.RED

39007-0425-57C

$325.90

39007B

ARM-SUSP,FR,LWR,LH,P.C.P.RED

39007-0463-57C

$240.88

39007C

ARM-SUSP,FR,LWR,RH,P.C.P.RED

39007-0464-57C

$259.77

39186

KNUCKLE,FR,LH

39186-0333

$202.33

39186A

KNUCKLE,FR,RH

39186-0334

$216.87

42036

SLEEVE,12.1X22X76

42036-0836

$32.21

46102

ROD,STABILIZER,LH

46102-0100

$44.03

46102A

ROD,STABILIZER,RH

46102-0101

$44.03

59266

JOINT-BALL

59266-0738

$26.14

59437

STABILIZER,FR

59437-0025

$177.41

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92045

BEARING-BALL,40X74X36

92045-0919

$93.78

92139

BUSHING

92139-0937

$6.54

92154

BOLT,FLANGED,12X100

92154-1318

$6.04

92161

DAMPER

92161-2188

$9.14

92200

WASHER,14.2X28X1.5

92200-0217

$3.11

92200A

WASHER,10.3X23X1.6

92200-0724

$2.97

92210

NUT,CASTLE,14MM

92210-0104

$4.37

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$8.16

130

BOLT-FLANGED,10X16

130CA1016

$2.68

480

CIRCLIP-TYPE-C,42MM

480J4200

$2.63

481

CIRCLIP-TYPE-C

481J7500

$4.35

550

PIN-COTTER,3.0X25

550AA3025

$0.67

670

O RING,18MM

670B2018

$1.25

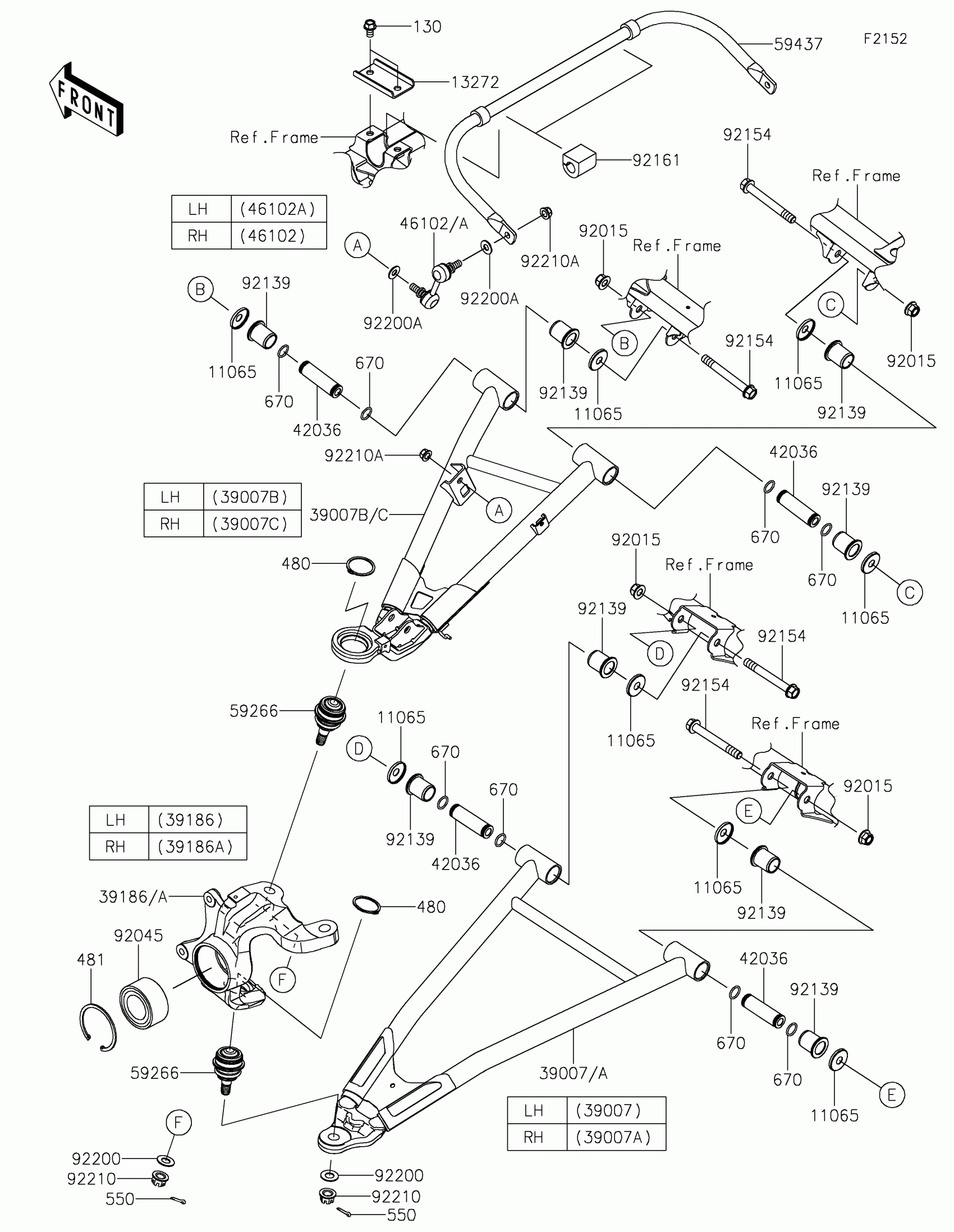

Kawasaki TERYX KRX® 1000 eS Front Suspension Diagram

CAP
