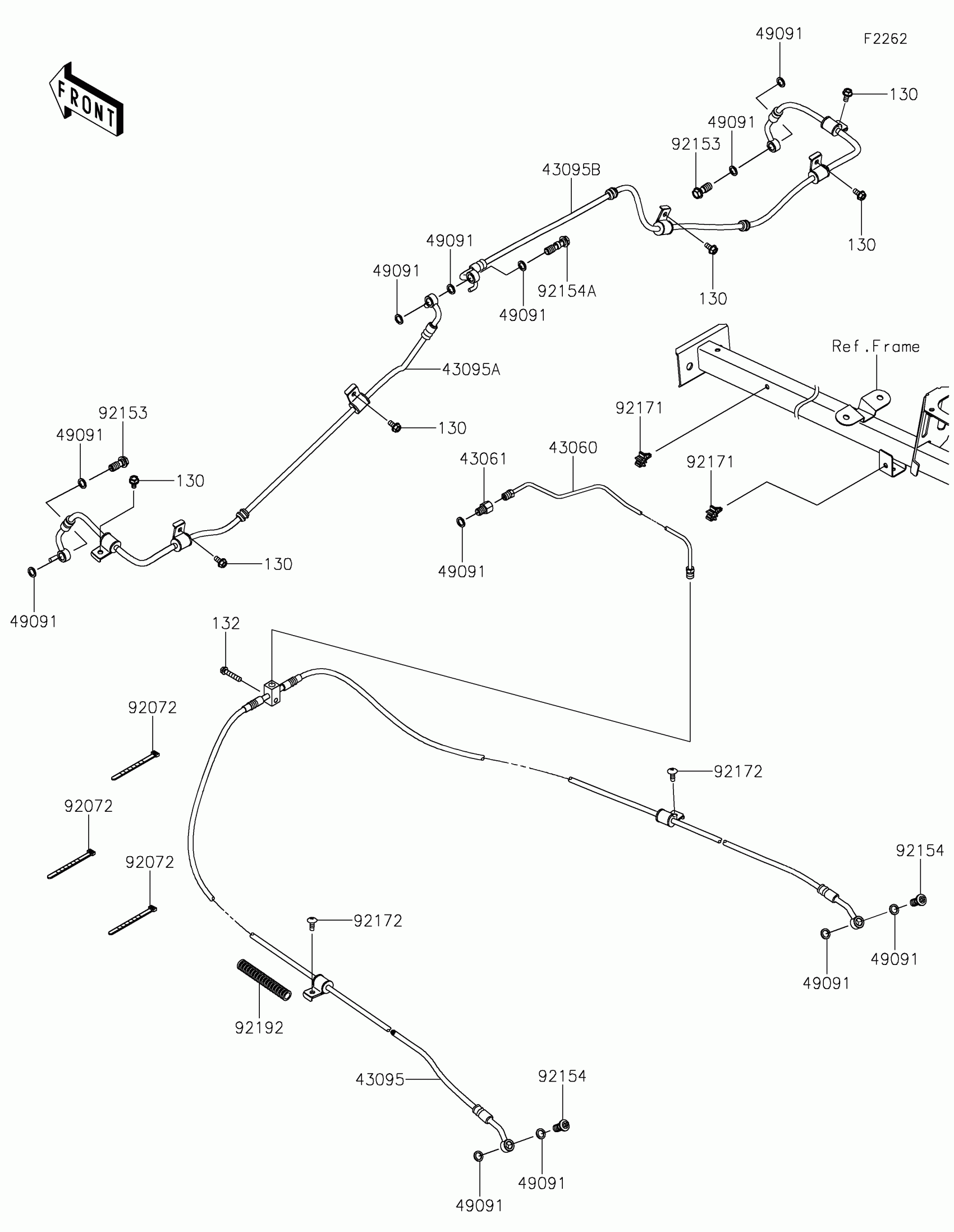

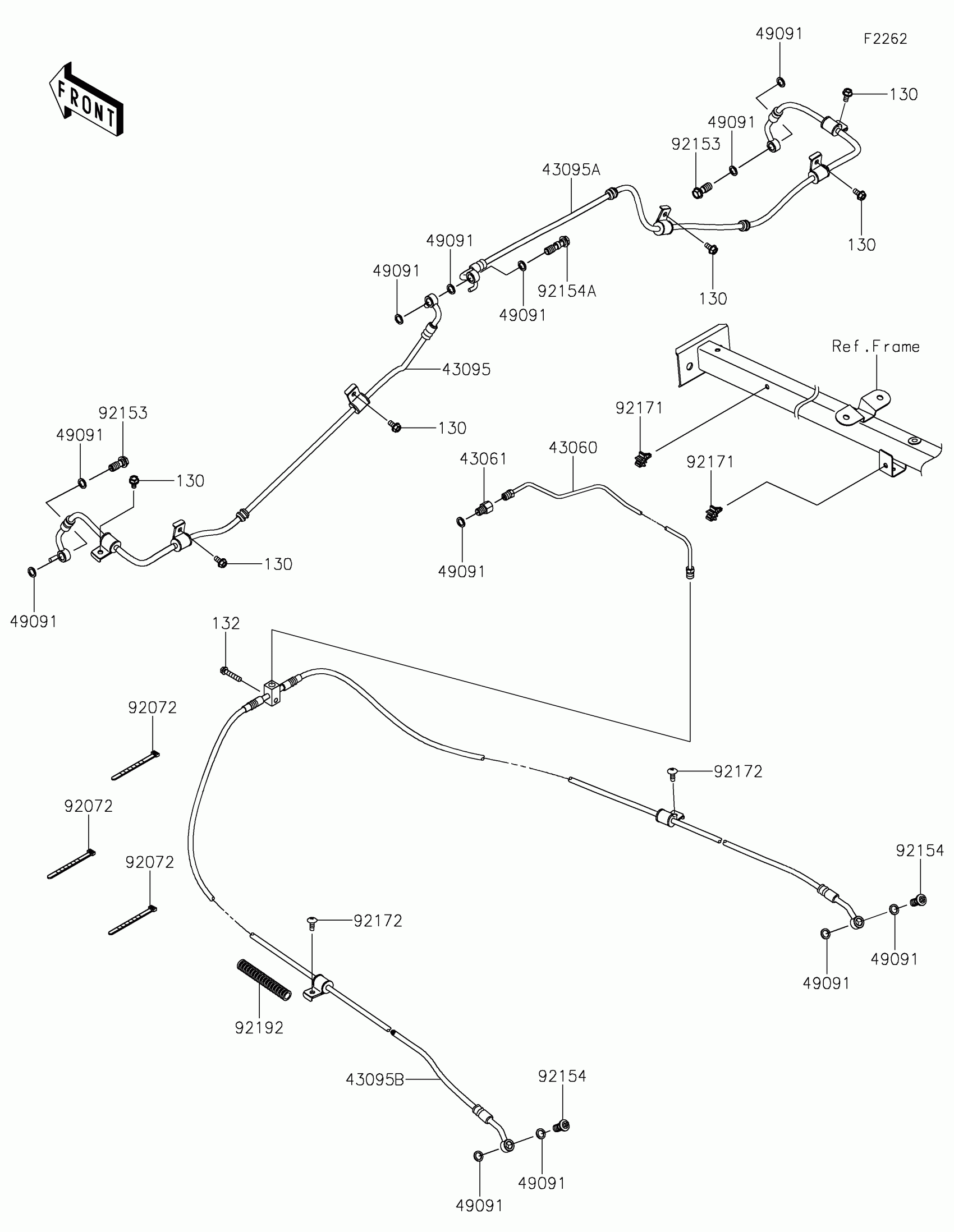

Kawasaki TERYX KRX® 1000 eS Brake Piping Diagram

Description

Price

43060

PIPE-BRAKE

43060-0339

$12.83

43061

JOINT-BRAKE,M/C

43061-0302

$33.87

43095

HOSE-BRAKE,FR,LH

43095-1637

$47.48

43095A

HOSE-BRAKE,FR,RH

43095-1638

$47.31

43095B

HOSE-BRAKE,RR

43095-1746

$108.61

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92072

BAND,L=123

92072-030

$3.97

92153

BOLT,OIL,L=23

92153-1419

$3.11

92154

BOLT,HEXALOBULAR,10X21

92154-1328

$6.43

92154A

BOLT,OIL,10X34.5

92154-1398

$7.47

92171

CLAMP

92171-0805

$3.51

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92192

TUBE,CORRUGATED,L=100

92192-3809

$2.15

130

BOLT-FLANGED,6X12

130CA0612

$3.15

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17
