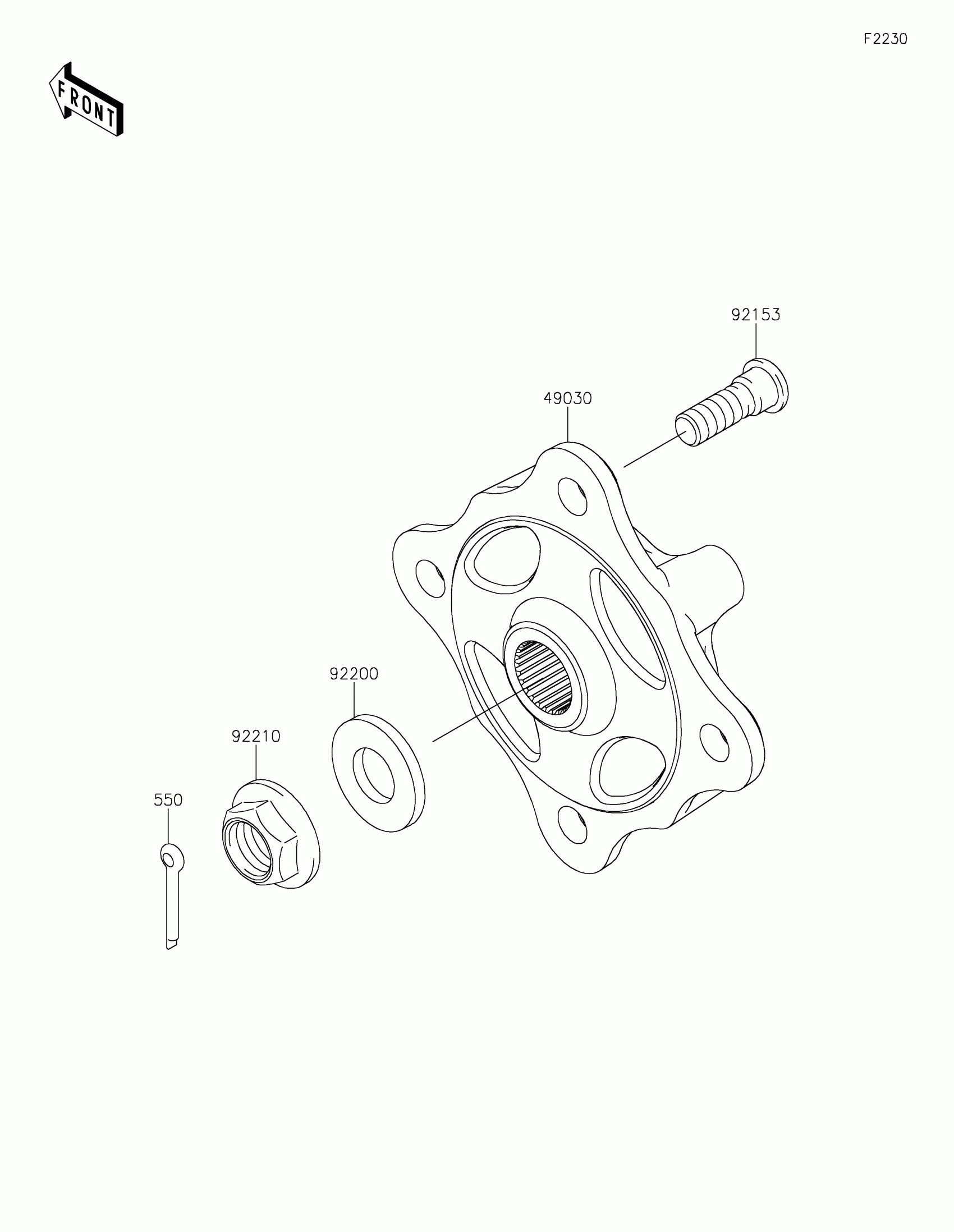

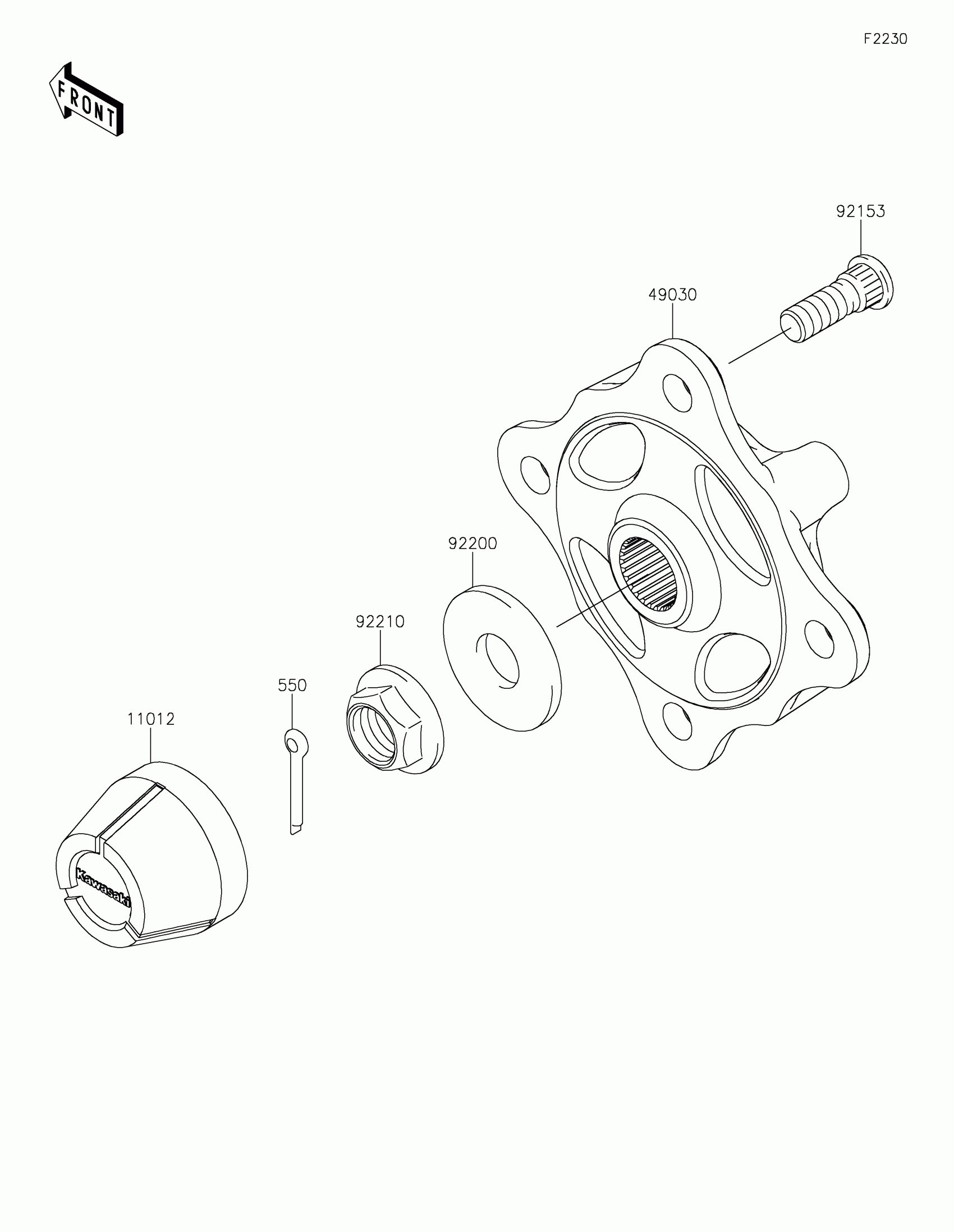

Kawasaki TERYX® Front Hubs/Brakes Diagram

#

Description

Price

11012

CAP,WHEEL

11012-1969

$4.47

49030

HUB,FR

49030-0560

$140.74

92153

BOLT,12MM

92153-1915

$5.35

92200

WASHER,20.3X52.0X4.5

92200-1739

$4.46

92210

NUT,FLANGED,20MM

92210-2093

$8.83

550

PIN-COTTER,4.0X30

550AA4030

$2.08
