Description

Price

39184

BRACKET-ASSY,LH

39184-0045

$60.18

39184A

BRACKET-ASSY,RH

39184-0046

$75.60

41080

DISC,200MM

41080-0661

$46.81

43020

PISTON-COMP-BRAKE

43020-0054

$39.24

43049

PACKING

43049-0556

$16.46

43049A

PACKING

43049-0557

$7.91

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.98

43080

CALIPER-SUB-ASSY,LH

43080-0165

$338.80

43080A

CALIPER-SUB-ASSY,RH

43080-0166

$338.80

43082

PAD-ASSY-BRAKE,LH

43082-0126

$65.19

43082A

PAD-ASSY-BRAKE,RH

43082-0127

$65.19

49006

BOOT

49006-0565

$10.39

49006A

BOOT

49006-0566

$4.16

92043

PIN

92043-0184

$6.69

92145

SPRING

92145-0705

$5.64

92154

BOLT,SOCKET,10X23

92154-0713

$3.26

92154A

BOLT,FLANGED,8X16

92154-1952

$4.47

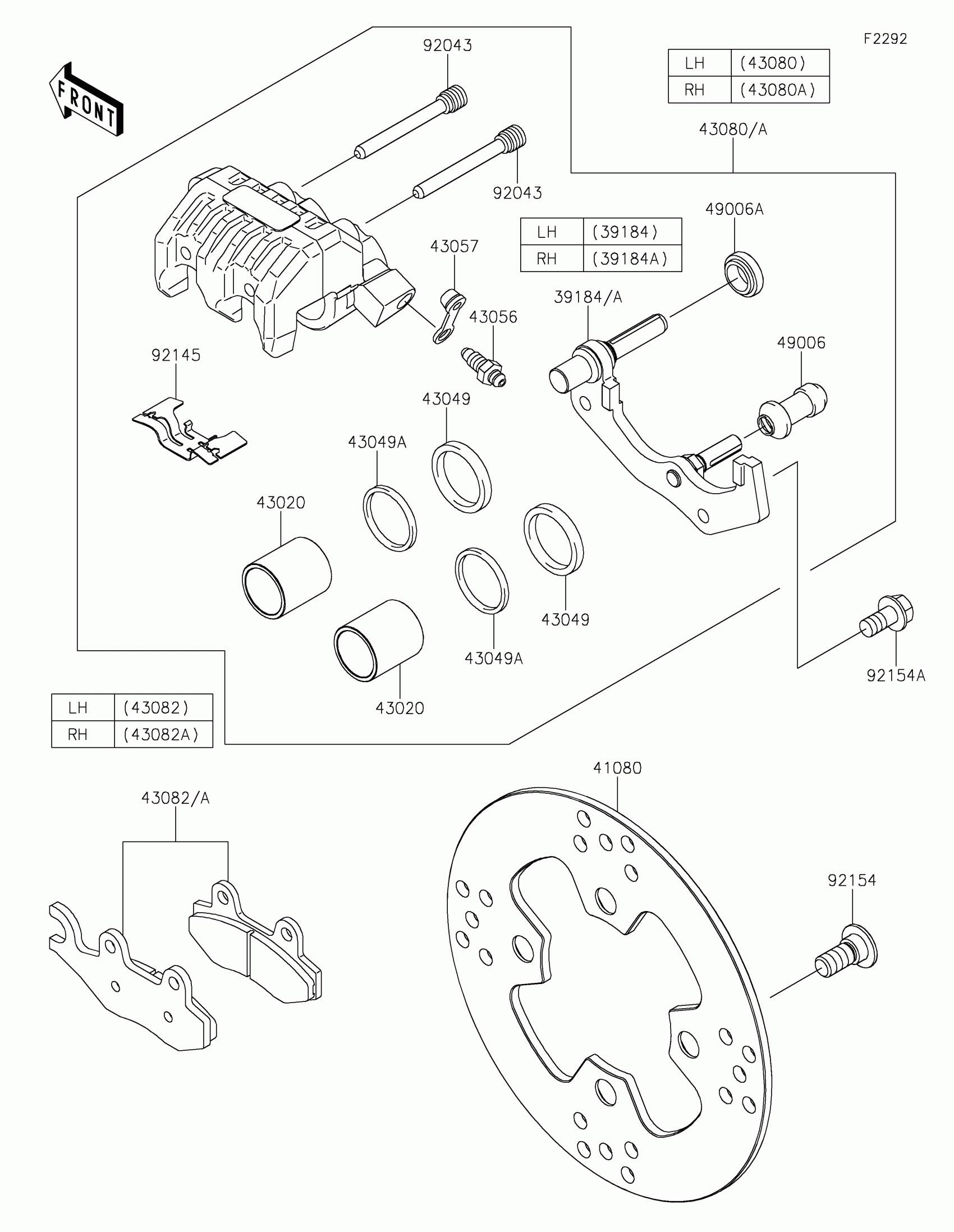

Kawasaki TERYX® Front Brake Diagram
