Description

Price

13107

SHAFT,OUTPUT

13107-0766

$243.10

13262

GEAR,OUTPUT,30T

13262-1142

$130.68

41046

HOUSING-BEARING,DRIVEN

41046-0026

$165.99

41046A

HOUSING-BEARING,DRIVE

41046-0572

$45.78

49022

GEAR-BEVEL,PINION,14T

49022-0602

$282.07

49022A

GEAR-BEVEL,DRIVEN,27T

49022-0603

$220.16

92049

SEAL-OIL

92049-0712

$13.87

92116

BEARING-ROLLER,HR30206JUQU42

92116-0568

$33.12

92151

BOLT,8X40

92151-1621

$2.19

92151A

BOLT-FLANGED-SMALL,8X30

92151-1688

$2.29

92152

COLLAR,30.2X37X13.1

92152-0947

$20.15

92152A

COLLAR,30.2X37X13.2

92152-0948

$20.15

92152B

COLLAR,30.2X37X13.3

92152-0949

$20.15

92152C

COLLAR,30.2X37X13.4

92152-0950

$20.15

92152D

COLLAR,30.2X37X13.5

92152-0951

$20.15

92152E

COLLAR,30.2X37X13.6

92152-0952

$20.15

92152F

COLLAR,30.2X37X13.7

92152-0953

$20.15

92152G

COLLAR,30.2X37X13.8

92152-0954

$20.15

92152H

COLLAR,30.2X37X13.9

92152-0955

$20.15

92180

SHIM,DRIVE,T=0.15

92180-0702

$7.32

92180A

SHIM,DRIVE,T=0.20

92180-0703

$7.32

92180B

SHIM,DRIVE,T=0.50

92180-0704

$8.64

92180C

SHIM,DRIVE,T=0.80

92180-0705

$9.42

92180D

SHIM,DRIVE,T=1.0

92180-0706

$10.22

92180E

SHIM,DRIVE,T=1.2

92180-0707

$10.97

92180F

SHIM,DRIVE,T=1.70

92180-0708

$9.42

92180G

SHIM,DRIVE,T=1.72

92180-0709

$9.42

92180H

SHIM,DRIVE,T=1.74

92180-0710

$9.42

92180I

SHIM,DRIVE,T=1.76

92180-0711

$7.72

92180J

SHIM,DRIVE,T=1.78

92180-0712

$9.42

92180K

SHIM,DRIVE,T=1.80

92180-0713

$9.42

92180L

SHIM,DRIVEN,T=0.15

92180-0714

$8.92

92180M

SHIM,DRIVEN,T=0.20

92180-0715

$9.14

92180N

SHIM,DRIVEN,T=0.50

92180-0716

$11.49

92180O

SHIM,DRIVEN,T=0.80

92180-0717

$13.34

92180P

SHIM,DRIVEN,T=1.0

92180-0718

$14.95

92180Q

SHIM,DRIVEN,T=1.2

92180-0719

$16.53

92210

NUT,30MM

92210-0762

$50.29

92210A

NUT,40MM

92210-0795

$88.47

480

CIRCLIP-TYPE-C,24MM

480J2400

$4.98

671

O RING,115MM

671D25115

$5.76

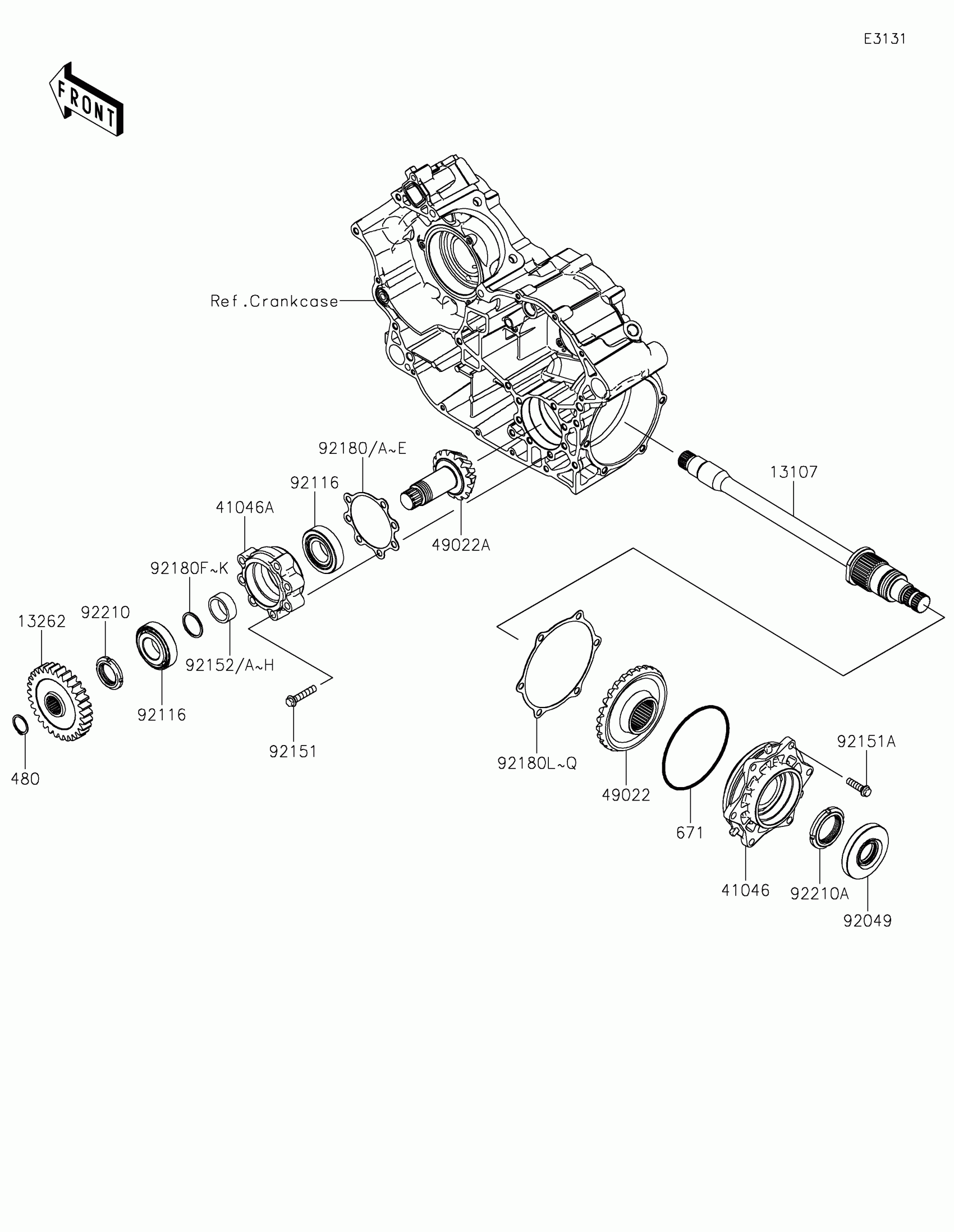

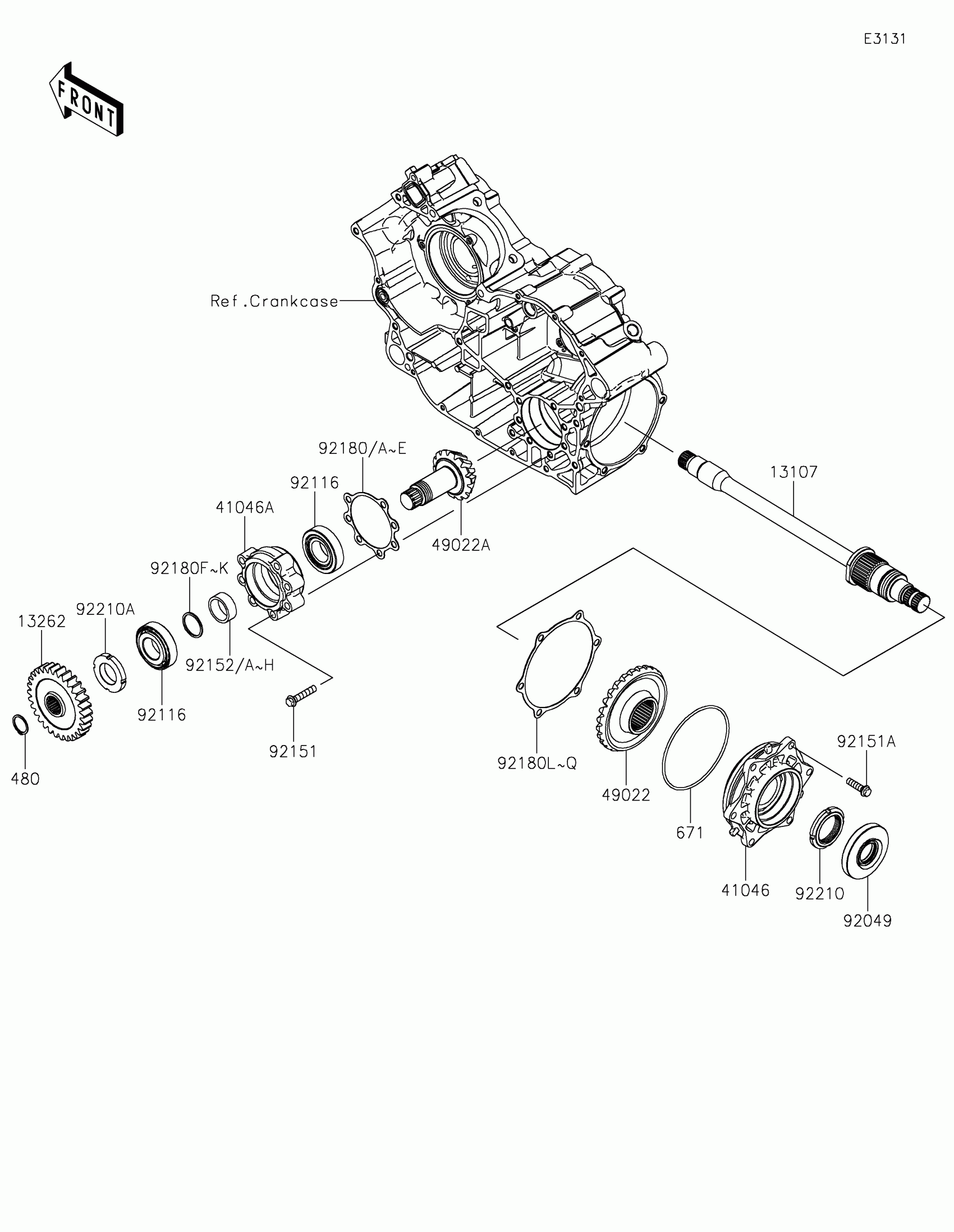

Kawasaki TERYX® Front Bevel Gear Diagram
