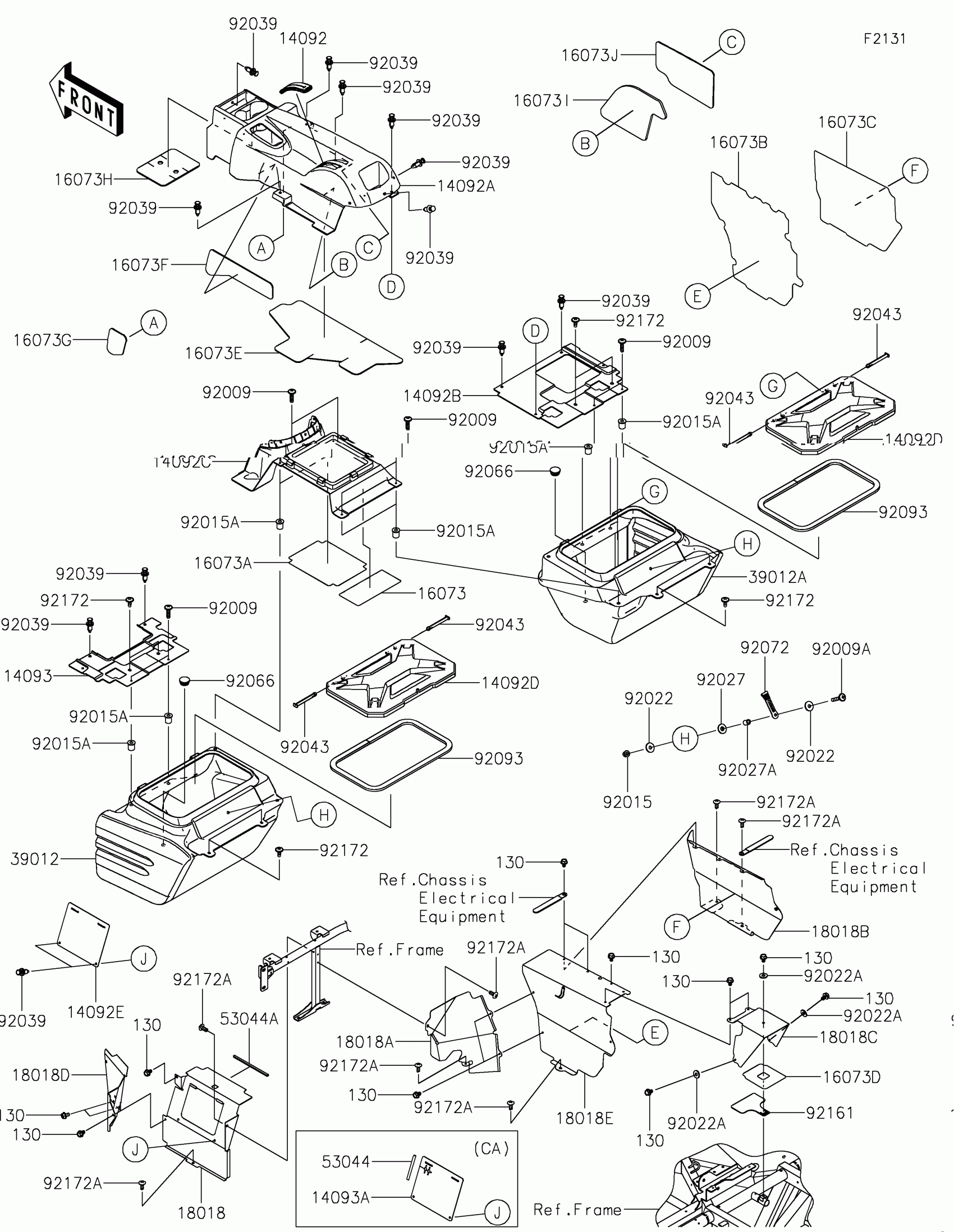

Kawasaki TERYX® Frame Fittings(Rear) Diagram

#

Description
Price

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.58

14092A

COVER,CENTER CONSOLE

14092-1056

$82.91

14092B

COVER,RR SIDE,RH

14092-1070

$20.39

14092C

COVER,RR CONSOLE

14092-1071

$29.02

14092D

COVER,RR STORAGE

14092-1072

$21.42

14093

COVER,RR SIDE,LH

14093-0063

$16.31

16073

INSULATOR,RR,115X255

16073-0791

$3.31

16073A

INSULATOR,FR,225X290

16073-0792

$5.83

16073B

INSULATOR,RR TUNNEL,LH

16073-0795

$19.05

16073C

INSULATOR,RR TUNNEL,RH

16073-0796

$12.29

16073D

INSULATOR,RR TUNNEL,RR

16073-0797

$2.08

16073E

INSULATOR,CENTER CONSOLE

16073-0800

$82.59

16073F

INSULATOR,CENTER CONSOLE

16073-0801

$26.02

16073G

INSULATOR,CENTER CONSOLE

16073-0802

$12.95

16073H

INSULATOR,CENTER CONSOLE

16073-0803

$16.98

16073I

INSULATOR,CENTER CONSOLE

16073-0804

$57.21

16073J

INSULATOR,CENTER CONSOLE

16073-0805

$48.14

18018

PLATE-HEAT GUARD,LH UD SEAT,FR

18018-0042

$68.26

18018A

PLATE-HEAT GUARD,LH UD SEAT,RR

18018-0043

$84.59

18018B

PLATE-HEAT GUARD,RR TUNNEL,RH

18018-0045

$59.93

18018C

PLATE-HEAT GUARD,RR TUNNEL,RR

18018-0047

$13.88

18018D

PLATE-HEAT GUARD,DRIVER

18018-0596

$58.68

18018E

PLATE-HEAT GUARD,RR TUNNEL,LH

18018-0599

$73.22

39012

CASE-STORAGE,RR,LH

39012-0035

$142.45

39012A

CASE-STORAGE,RR,RH

39012-0036

$142.45

53044A

TRIM,L=200

53044-0573

$8.12

92009

SCREW,6X25

92009-1465

$3.12

92009A

SCREW,6X35

92009-1672

$3.53

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92015A

NUT

92015-1700

$6.82

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92022A

WASHER

92022-2247

$0.66

92027

COLLAR,L=5.1

92027-1260

$4.93

92027A

COLLAR,6.8X10X12

92027-162

$5.21

92039

RIVET

92039-0776

$0.80

92043

PIN

92043-0852

$1.61

92066

PLUG

92066-1306

$4.34

92072

BAND

92072-0144

$5.73

92093

SEAL

92093-0605

$8.25

92161

DAMPER,RR TUNNEL

92161-1577

$3.31

92172

SCREW,6X16

92172-0711

$2.44

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

130

BOLT-FLANGED,6X10

130AA0610

$0.53
