Description

Price

11056

BRACKET,BRAKE PEDAL

11056-1431

$58.98

11056A

BRACKET,THROTTLE PEDAL

11056-4408

$10.95

13280A

HOLDER

13280-0851

$1.58

13280B

HOLDER,ECU

13280-0868

$6.61

14092

COVER,SEAT SIDE,LH

14092-0720

$15.12

14092A

COVER,SEAT SIDE,RH

14092-0721

$15.12

14092B

COVER,FUSE BOX

14092-0724

$5.33

14092C

COVER,SIDE GUARD,LH,B.WHITE

14092-0754-266

$117.06

14092D

COVER,SIDE GUARD,LH,S.BLACK

14092-0754-839

$109.34

14092E

COVER,SIDE GUARD,RH,B.WHITE

14092-0755-266

$117.06

14092F

COVER,SIDE GUARD,RH,S.BLACK

14092-0755-839

$111.82

14092G

COVER,FR SEAT,RH

14092-0757

$20.68

14092H

COVER,FR SEAT,RH,CNT

14092-1083

$25.88

14093

COVER,FR SEAT,LH

14093-0209

$45.19

14093A

COVER,FR FLOOR,LH

14093-0550

$93.57

14093B

COVER,FR FLOOR,RH

14093-0551

$93.57

16073B

INSULATOR

16073-0847

$19.17

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92039

RIVET

92039-0776

$0.80

92143

COLLAR

92143-1057

$3.97

92143A

COLLAR

92143-1087

$3.11

92172

SCREW,TAPPING,6X20

92172-0488

$2.44

92172A

SCREW,6X16

92172-0711

$2.44

92172B

SCREW,6X16

92172-0826

$1.88

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.93

130

BOLT-FLANGED,8X18

130BA0818

$2.10

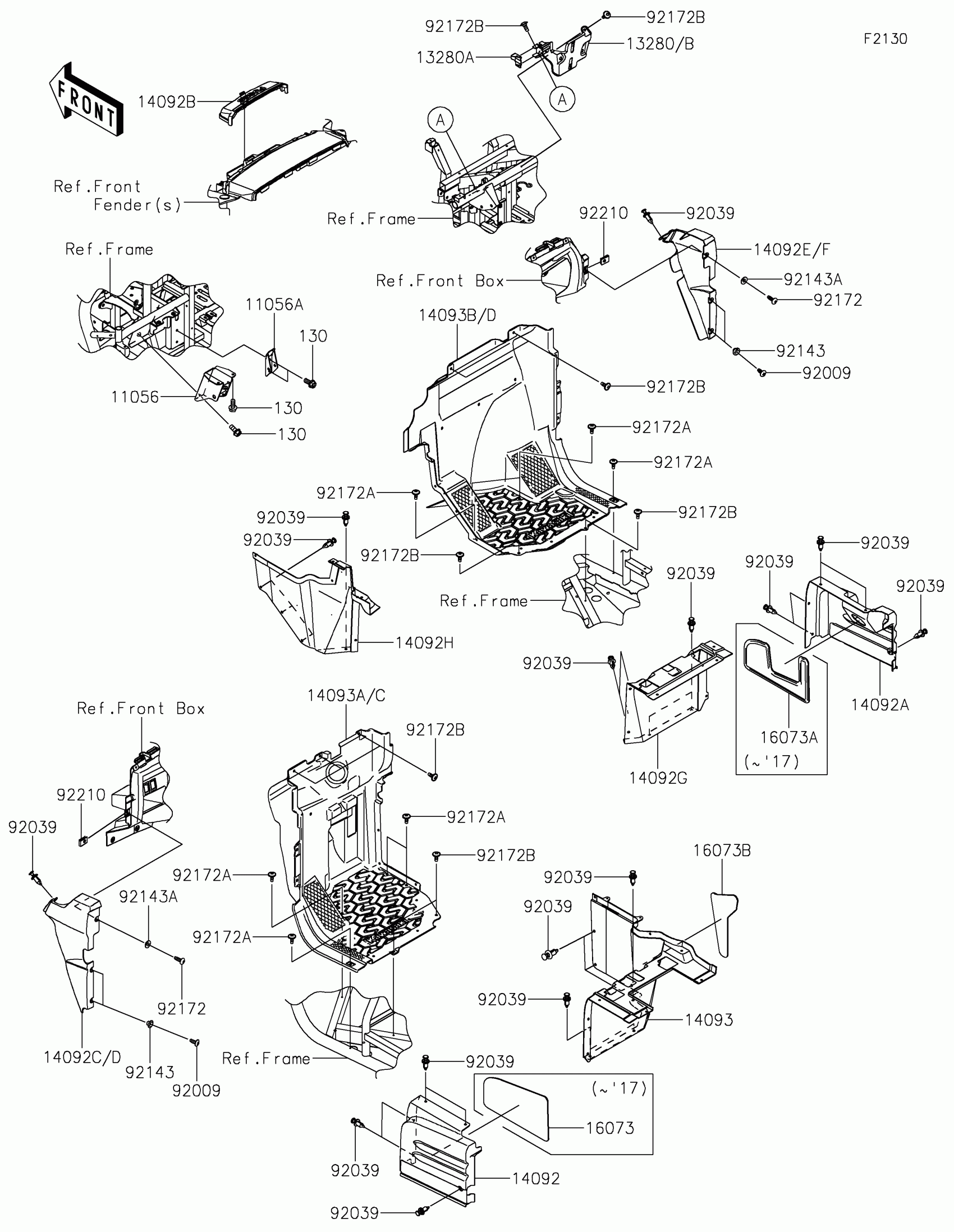

Kawasaki TERYX® Frame Fittings(Front) Diagram
