Description

Price

14092

COVER

14092-1107

$38.59

39152

WEIGHT-RAMP

39152-0042

$56.72

49048

SHOE,T=7.2

49048-1087

$11.66

49048A

SHOE,T=7.3

49048-1088

$11.42

49048B

SHOE,T=7.4

49048-1089

$11.66

49048C

SHOE,T=7.5

49048-1090

$11.66

49048D

SHOE,T=7.6

49048-1091

$11.66

49048E

SHOE,T=7.7

49048-1092

$11.66

49048F

SHOE,T=7.8

49048-1093

$13.78

49048G

SHOE,T=7.9

49048-1094

$13.78

49048H

SHOE,T=8.0

49048-1095

$11.66

49050

SPIDER

49050-0039

$155.72

49093

CONVERTER-ASSY-DRIVE

49093-0049

$857.57

59301

SHEAVE-MOVABLE

59301-0029

$242.29

59302

SHEAVE-COMP

59302-0087

$344.85

92019

NUT,LOCK,6MM

92019-008

$3.36

92022

WASHER,16.3X29X1.75

92022-1356

$5.84

92028

BUSHING,KICK LEVER,OUTSIDE

92028-1900

$7.29

92028A

BUSHING

92028-1975

$10.14

92043

PIN,6.2X8X14

92043-1263

$0.49

92043A

PIN

92043-1688

$10.77

92139

BUSHING

92139-0852

$9.86

92145

SPRING

92145-0958

$23.32

92210

NUT,LEFT HANDED,16MM

92210-0350

$8.17

130

BOLT-FLANGED,6X30

130CA0630

$2.05

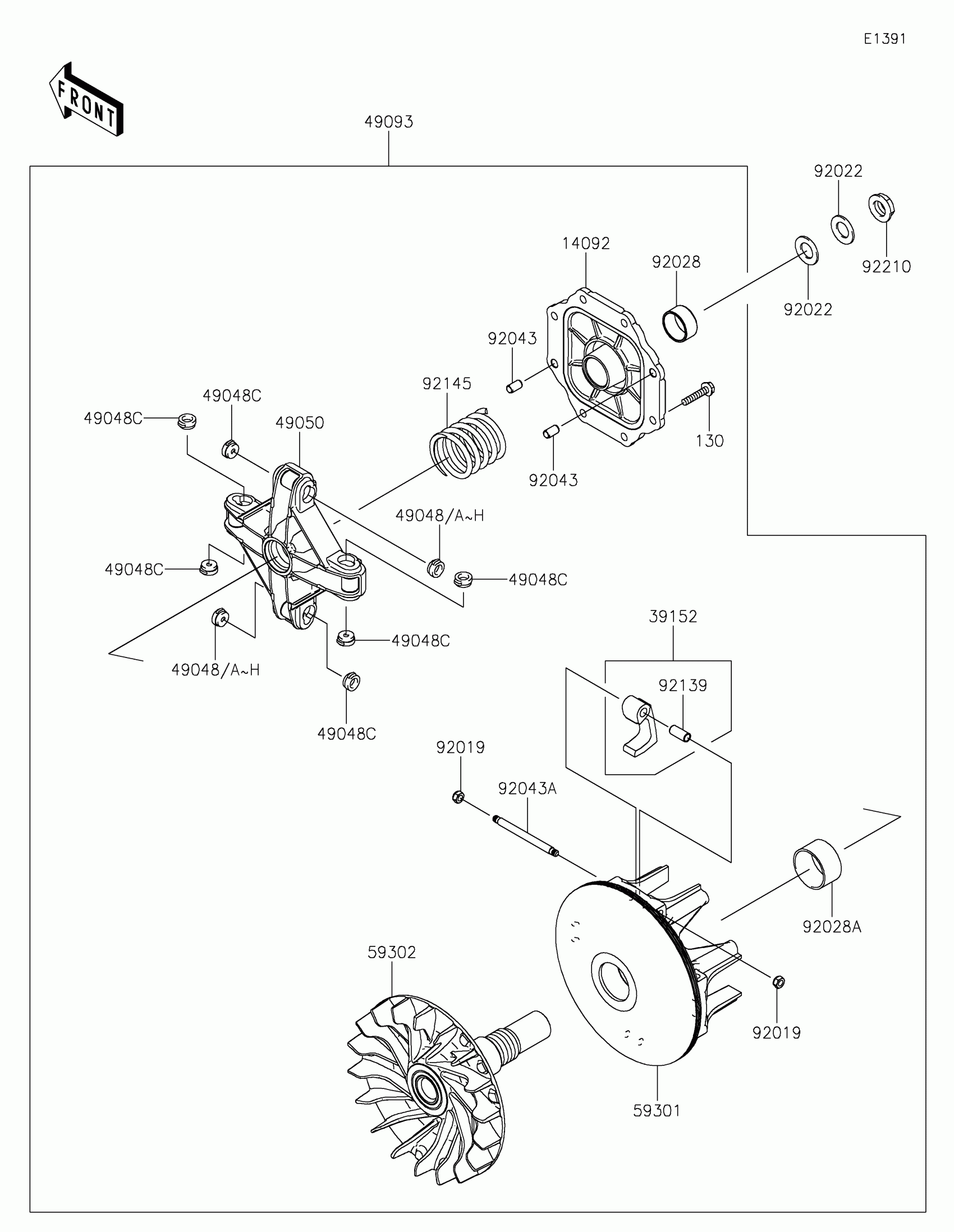

Kawasaki TERYX® Drive Converter Diagram
