Description

Price

11004

GASKET-HEAD

11004-0713

$30.73

11056

BRACKET

11056-1410

$22.83

11056A

BRACKET

11056-1411

$3.44

11060

GASKET,6.2X12X0.3

11060-1994

$1.98

11065

CAP,ROCKER CASE

11065-0724

$11.23

16065

HOLDER-CARBURETOR

16065-0118

$13.86

39192

PIPE-WATER,FR

39192-0119

$37.14

49002

GUIDE-VALVE

49002-0706

$29.42

92004

STUD,8X22

92004-1217

$4.47

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92043

PIN,10.1X12X14

92043-4009

$4.93

92066

PLUG

92066-0904

$12.90

92150

BOLT,6X55

92150-1302

$5.03

92151

BOLT,FLANGED,10X150

92151-1917

$18.62

92154

BOLT,FLANGED,8X20

92154-0885

$1.93

92154A

BOLT,FLANGED,6X130

92154-0993

$3.93

92170

CLAMP

92170-1448

$6.44

92171

CLAMP

92171-0722

$12.02

92200

WASHER,11.5X20.5X1.6

92200-1128

$4.37

130

BOLT-FLANGED,6X12

130BA0612

$1.46

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.05

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132C

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17

132D

BOLT-FLANGED-SMALL,6X95

132BA0695

$2.05

670

O RING,16MM

670B2016

$1.20

671

O RING,55MM

671D2555

$2.92

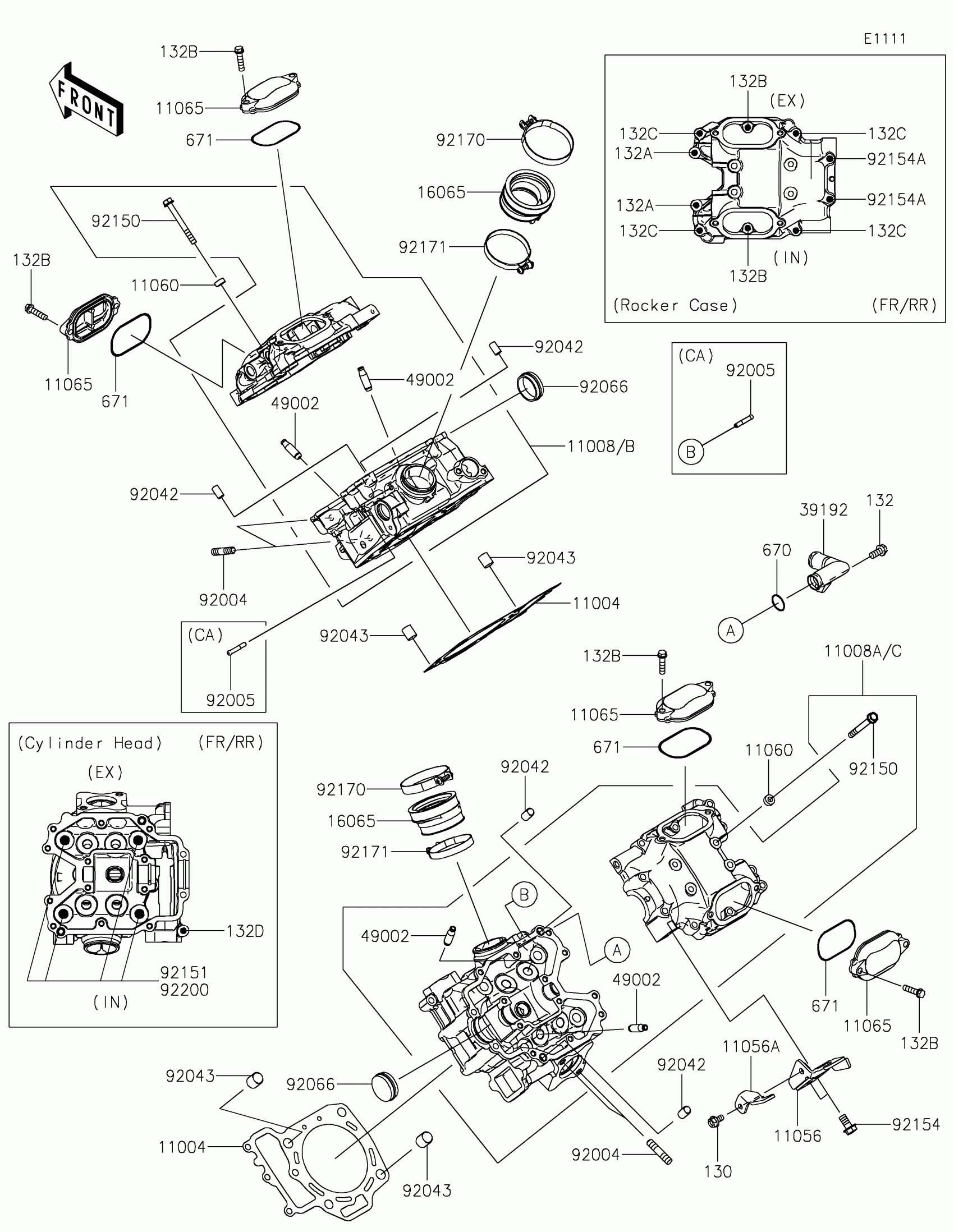

Kawasaki TERYX® Cylinder Head Diagram
