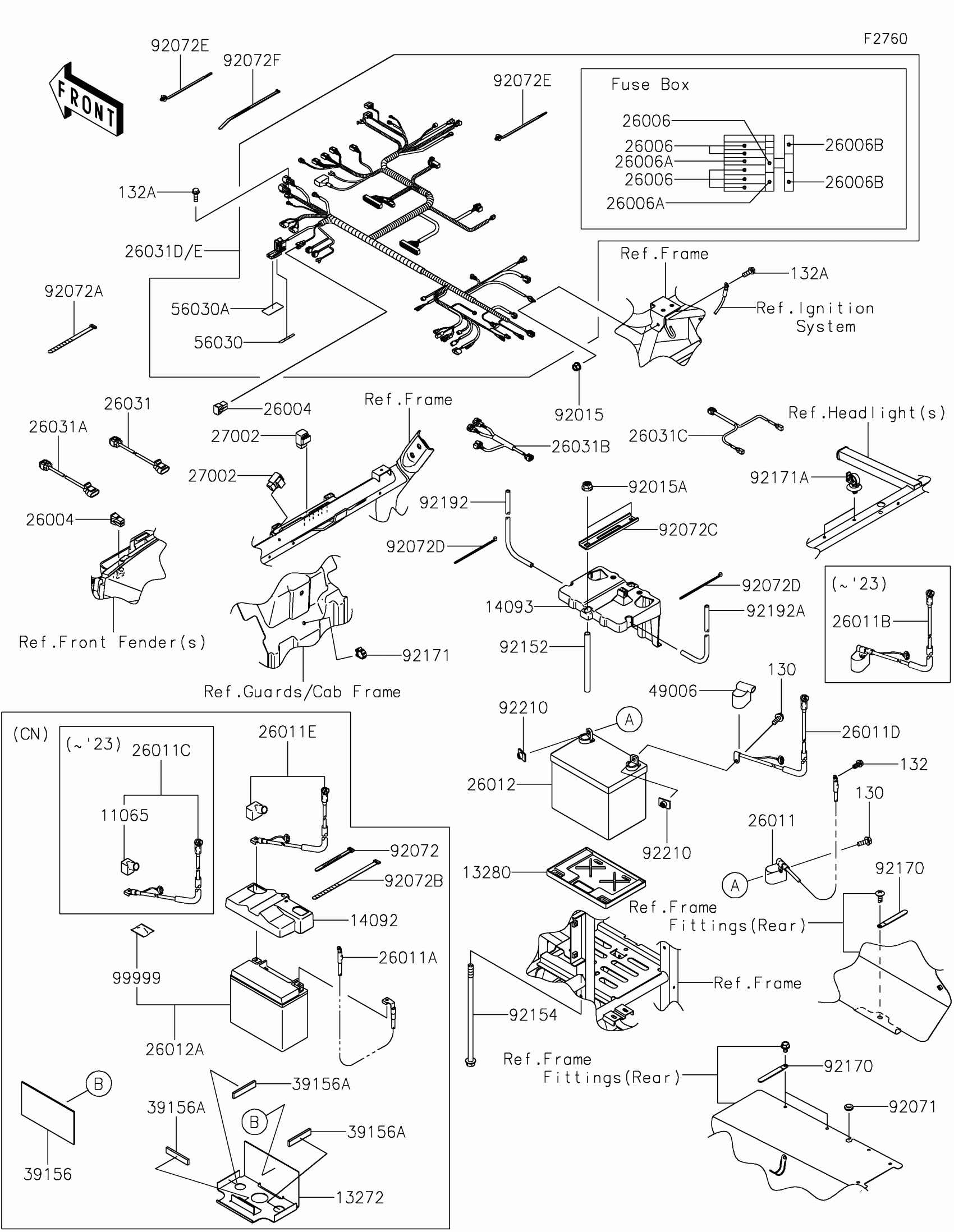

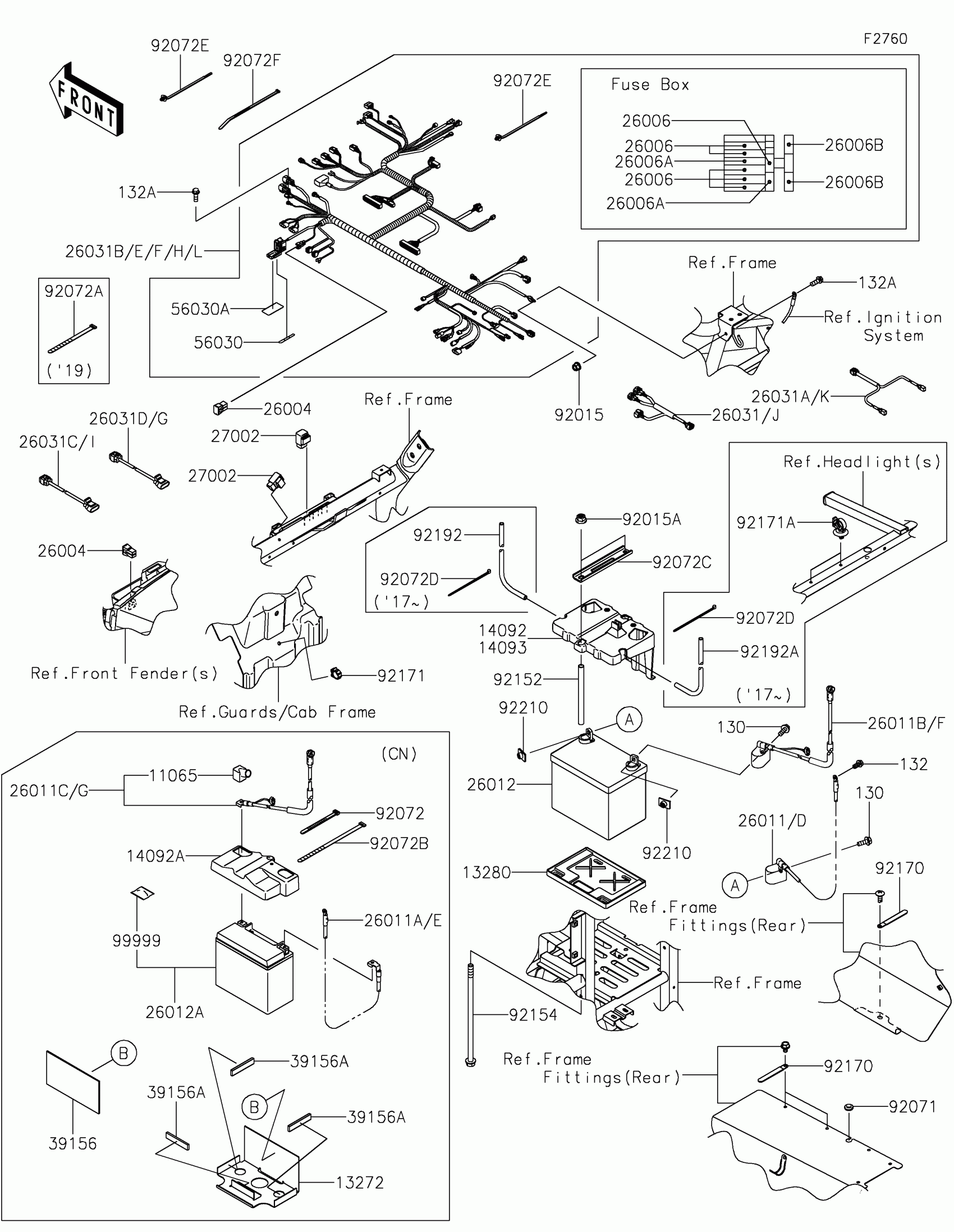

Kawasaki TERYX® Chassis Electrical Equipment Diagram

#

Description
Price

13280

HOLDER,BATTERY

13280-0709

$7.64

26004

FUSE-ASSY,40A

26004-1093

$4.21

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$3.87

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,BATTERY(-)

26011-0897

$24.54

26011A

WIRE-LEAD,BATTERY(-)

26011-0898

Unavailable

26011B

WIRE-LEAD,BATTERY(+)

26011-0928

$86.46

26011C

WIRE-LEAD,BATTERY(+)

26011-0929

Unavailable

26031

HARNESS,SUB,TPS

26031-1264

$28.61

26031A

HARNESS,SUB,TAIL

26031-1563

$86.34

26031C

HARNESS,SUB,LH

26031-1829

$18.68

26031D

HARNESS,SUB,RH

26031-1830

$18.68

26031F

HARNESS,MAIN

26031-2217

$740.52

26031G

HARNESS,HEAD LAMP,RH

26031-2385

$18.51

26031I

HARNESS,HEAD LAMP,LH

26031-2426

$18.51

26031J

HARNESS,SUB,FI

26031-2430

$25.86

26031K

HARNESS,SUB,TAIL LAMP

26031-2432

$85.55

27002

RELAY-ASSY

27002-1062

$41.21

56030

LABEL,FUSE BOX,30A

56030-0404

$3.31

56030A

LABEL,FUSE BOX

56030-0900

$2.37

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92015A

NUT,FLANGED,8MM

92015-1406

$3.53

92071

GROMMET,10X20X6

92071-0733

$0.92

92072A

BAND,L=149

92072-031

$3.97

92072C

BAND

92072-0707

$7.44

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$2.97

92072F

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR,10.2X12.7X165.8

92152-1555

$2.58

92154

BOLT,FLANGED,8X185

92154-0889

$8.92

92170

CLAMP

92170-1925

$1.98

92171

CLAMP,BRAKE HOSE

92171-0316

$3.08

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21
