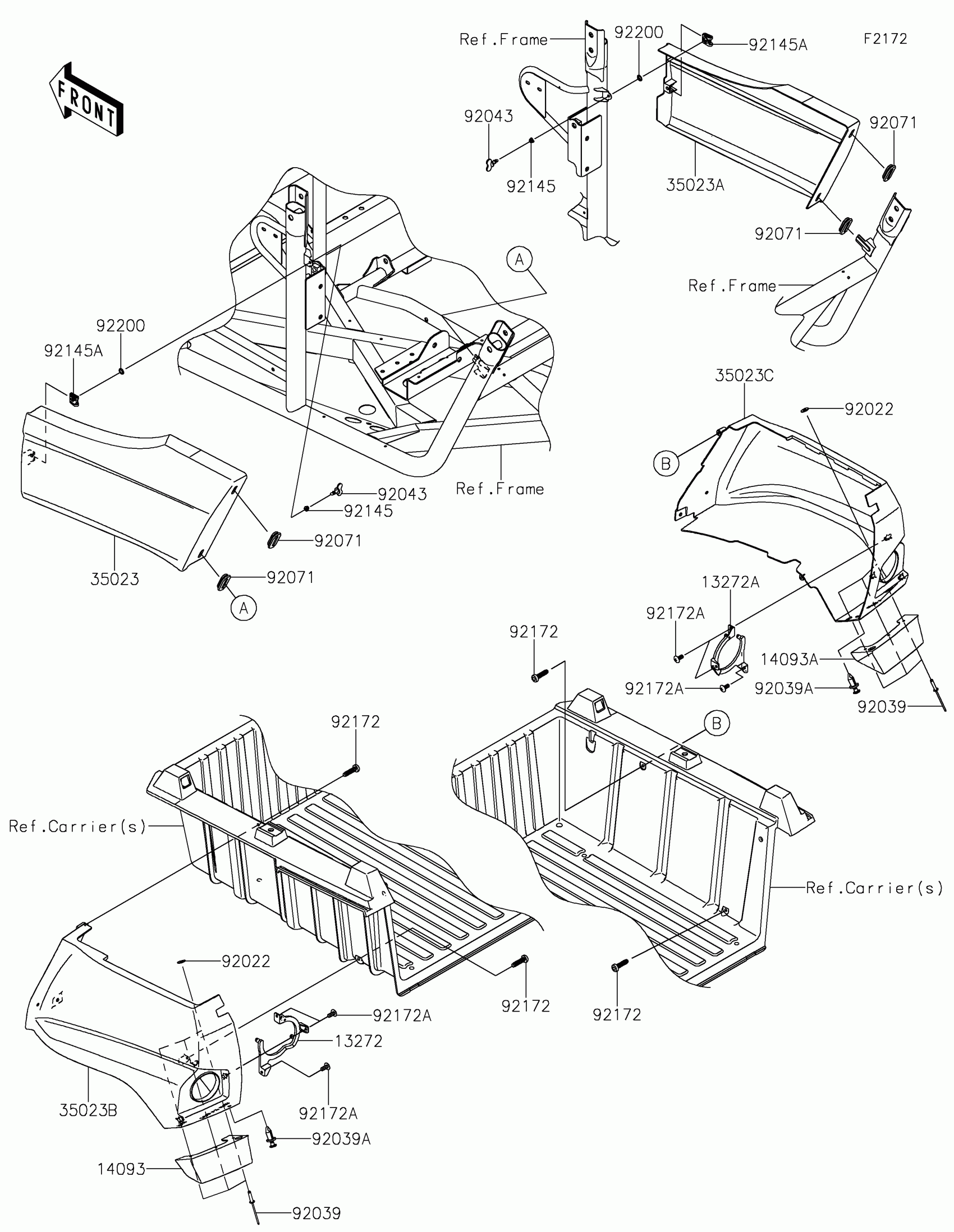

Kawasaki TERYX® CAMO Rear Fender(s) Diagram

Description

Price

13272

PLATE,TAILLIGHT MOUNT,LH

13272-1481

$5.73

13272A

PLATE,TAILLIGHT MOUNT,RH

13272-1482

$5.73

14093

COVER,MUD GUARD,LH

14093-0001

$13.75

14093A

COVER,MUD GUARD,RH

14093-0002

$13.75

35023

FENDER-REAR,FR,LH,CAMOUFLAGE

35023-0370-42H

$141.25

35023A

FENDER-REAR,FR,RH,CAMOUFLAGE

35023-0371-42H

$141.25

35023B

FENDER-REAR,RR,LH,CAMOUFLAGE

35023-0372-42H

$156.58

35023C

FENDER-REAR,RR,RH,CAMOUFLAGE

35023-0373-42H

$158.16

92022

WASHER,5.2X13X1

92022-1380

$3.43

92039

RIVET,5X23.3

92039-0769

$1.58

92039A

RIVET

92039-0776

$0.80

92043

PIN,WINGED,240

92043-0779

$3.09

92071

GROMMET

92071-1187

$3.94

92145

SPRING

92145-0905

$1.27

92145A

SPRING,CLIP

92145-0906

$1.95

92172

SCREW

92172-0886

$3.19

92172A

SCREW,5X12

92172-3714

$1.66

92200

WASHER

92200-0800

$0.81
