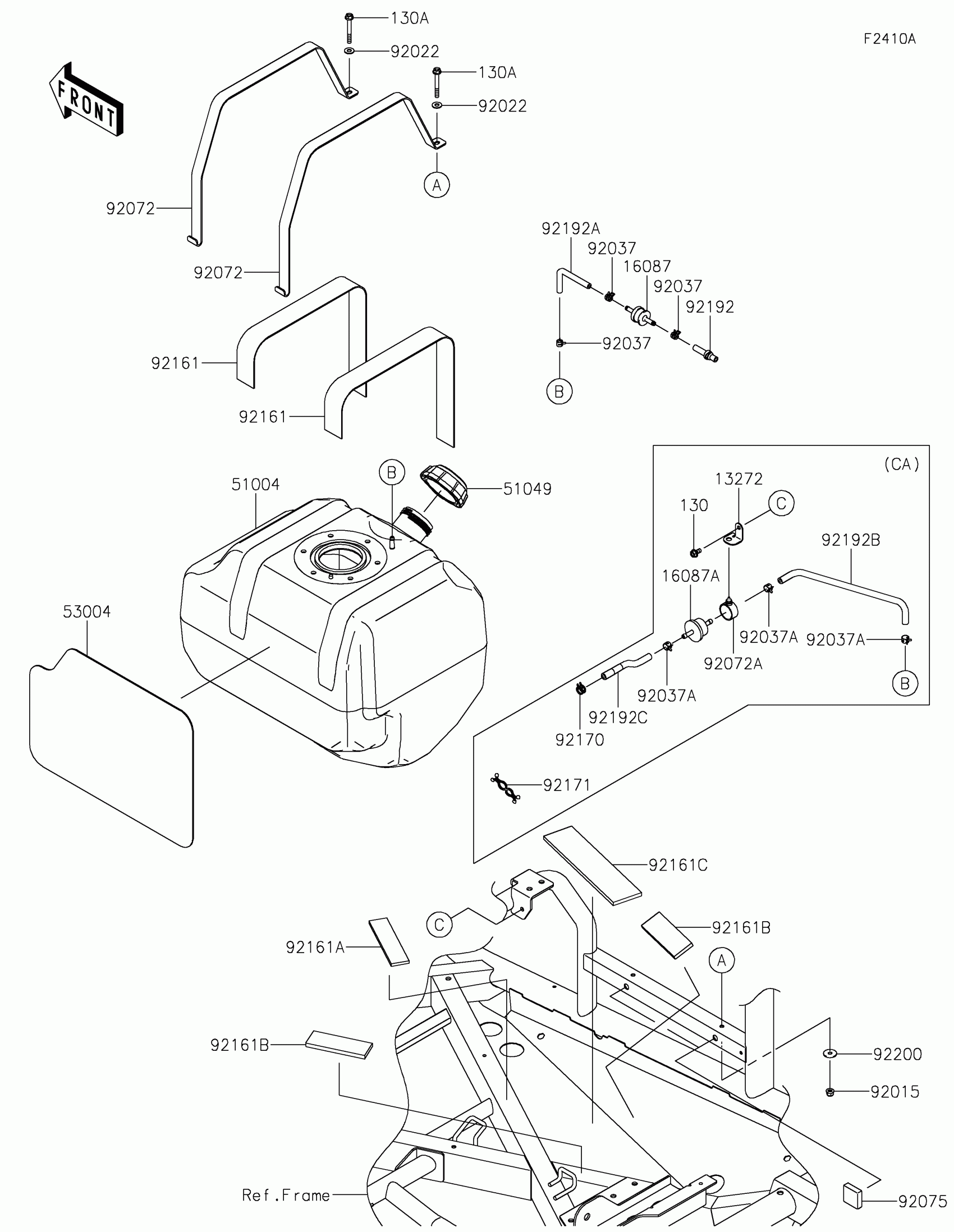

Kawasaki TERYX® CAMO Fuel Tank(HLF) Diagram

Description

Price

51004

TANK-FUEL

51004-0002

$288.87

51049

CAP-TANK,FUEL

51049-0718

$58.05

53004

MAT

53004-0554

$9.78

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92022

WASHER,7X16X1.2

92022-1344

$2.99

92072

BAND,FUEL TANK

92072-0704

$13.86

92075

DAMPER

92075-1882

$6.18

92161

DAMPER,FUEL TANK

92161-0794

$20.63

92161A

DAMPER,31.1X130X5

92161-0936

$4.15

92161B

DAMPER,38X105X7

92161-0948

$3.19

92161C

DAMPER,55X225X6.35

92161-1811

$13.76

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

130A

BOLT-FLANGED,6X50

130BA0650

$0.84
