2020 Kawasaki Teryx® Camo Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2020 Kawasaki Teryx® Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

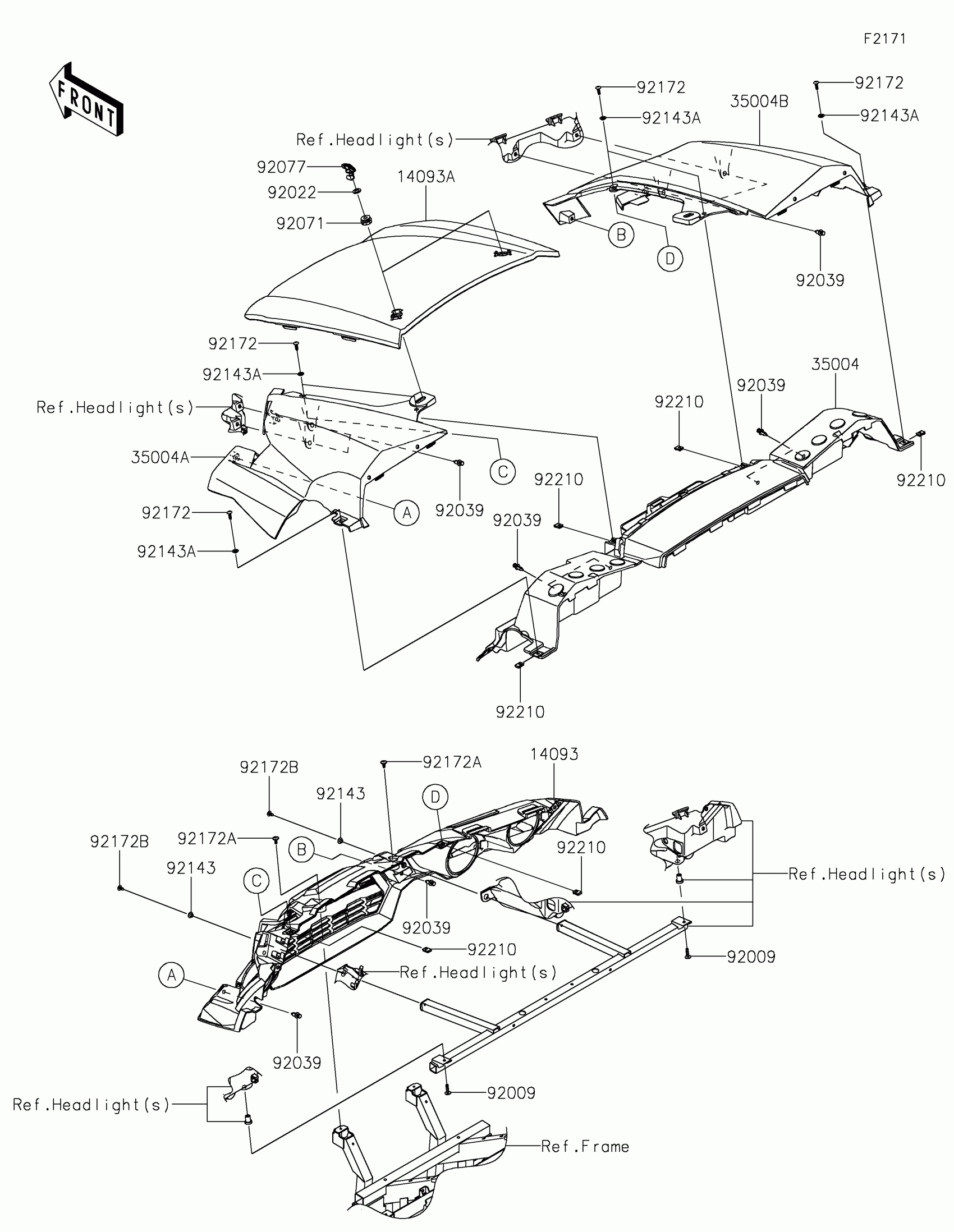

2020 Kawasaki Teryx® Camo Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,FR GRILL

14093-0202

1
Out of stock

14093A

COVER,HOOD,CAMOUFLAGE

14093-0211-42H

1
Out of stock

35004

FENDER-FRONT,RR

35004-0345

1
Out of stock

35004A

FENDER-FRONT,LH,CAMOUFLAGE

35004-0346-42H

1
Out of stock

35004B

FENDER-FRONT,RH,CAMOUFLAGE

35004-0347-42H

1
Out of stock

92009

SCREW,6X25

92009-1465

1
Out of stock

92022

WASHER,12.5X22X1.2

92022-072

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92071

GROMMET

92071-0746

1
Out of stock

92077

KNOB

92077-0033

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1087

1
Out of stock

92172

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92172A

SCREW,6X16

92172-0711

1
Out of stock

92172B

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock
