Description

Price

11056

BRACKET

11056-1447

$2.14

11061

GASKET,FR COVER

11061-0270

$29.29

13116

ROD-PUSH

13116-0026

$38.57

13216

GEAR-COMP,RING GEAR,44T

13216-0885

$334.11

13216A

GEAR-COMP,PINION,10T

13216-0886

$204.14

13236

LEVER-COMP,BRAKE

13236-0706

$98.38

13272

PLATE,CAM

13272-1203

$28.50

13310

SHAFT-ASSY,GEAR-ASSY SIDE

13310-0034

$310.18

13310A

SHAFT-ASSY,ENGINE SIDE

13310-0043

$384.61

14057

CASE-COMP-GEAR

14057-0019

$264.55

14091

COVER,RH

14091-0677

$136.14

14093

COVER,FR

14093-0428

$140.76

41080

DISC,FRICTION

41080-1482

$45.10

41080A

DISC,PRESSURE

41080-1483

$14.78

41080B

DISC,SEPARATER

41080-1484

$14.78

43016

CYLINDER-MASTER

43016-0556

$272.58

43019

CUP-BRAKE

43019-0002

$4.92

43039

PISTON-BRAKE

43039-0006

$42.76

43056

BREATHER-BRAKE

43056-1056

$11.32

43057

CAP-BREATHER

43057-1001

$3.89

49006

BOOT

49006-0072

$9.86

49006A

BOOT,GEAR ASSY SIDE

49006-0108

$5.18

49006B

BOOT,INSIDE

49006-0596

$96.79

49006C

BOOT,OUTSIDE

49006-0597

$96.79

49050

SPIDER

49050-0027

$112.58

59266

JOINT-BALL,RR,CVJ

59266-0715

$647.63

92033

RING-SNAP

92033-0055

$3.49

92033A

RING-SNAP

92033-0735

$1.31

92043

PIN,8X14

92043-1567

$1.88

92043A

PIN,3X35

92043-1617

$2.00

92045

BEARING-BALL,6210CM

92045-1213

$50.20

92046

BEARING-NEEDLE,AH502802

92046-0024

$26.15

92049

SEAL-OIL,25X45X9.5

92049-0739

$10.68

92049A

SEAL-OIL

92049-0773

$13.30

92049B

SEAL-OIL,TC17X28X6

92049-1537

$9.36

92055

RING-O,190.2X4.2

92055-0121

$19.14

92055A

RING-O

92055-0122

$3.11

92055B

RING-O

92055-0146

$4.95

92055C

RING-O

92055-0147

$7.61

92065

GASKET,10.5X16X1

92065-058

$3.16

92066

PLUG

92066-1303

$10.27

92140

BALL,D/O#12

92140-1064

$1.98

92145

SPRING

92145-0882

$14.81

92145A

SPRING,RR BRAKE

92145-1301

$1.59

92145B

SPRING,PROPELLER SHAFT

92145-1304

$2.61

92153

BOLT,FLANGED-SMALL,6X16

92153-1729

$1.81

92154

BOLT,10X35

92154-1823

$2.63

92154A

BOLT,12X35

92154-1824

$3.75

92154B

BOLT,FLANGED,8X40

92154-1825

$7.61

92170

CLAMP

92170-2043

$1.08

92171

CLAMP

92171-0453

$3.12

92172

SCREW,SET,85X11.5

92172-1122

$68.10

92180

SHIM,T=0.95

92180-0813

$7.29

92180A

SHIM,T=1.10

92180-0814

$8.92

92180B

SHIM,T=1.15

92180-0815

$7.29

92180C

SHIM,T=1.30

92180-0816

$8.92

92180D

SHIM,T=1.40

92180-0817

$7.29

92180E

SHIM,70X80X0.15

92180-0972

$5.76

92180F

SHIM,70X80X0.2

92180-0973

$5.76

92180G

SHIM,70X80X0.5

92180-0974

$5.76

92180H

SHIM,70X80X0.8

92180-0975

$5.76

92180I

SHIM,70X80X1.0

92180-0976

$5.76

92180J

SHIM,70X80X1.2

92180-0977

$5.25

92180K

SHIM,55X64X0.15

92180-1417

$5.08

92180L

SHIM,55X64X0.20

92180-1418

$5.08

92180M

SHIM,55X64X0.50

92180-1419

$4.59

92180N

SHIM,55X64X0.80

92180-1420

$5.08

92180O

SHIM,55X64X1.00

92180-1421

$5.08

92180P

SHIM,55X64X1.20

92180-1422

$5.08

92192

TUBE,BREATHER

92192-1473

$6.63

130

BOLT-FLANGED,10X14

130BA1014

Unavailable

130A

BOLT-FLANGED,8X60

130CA0860

$1.49

220

SCREW-PAN-CROS,4X8

220AA0408

$0.73

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.71

555

PIN-SPRING

555A0428

$1.85

601

BEARING-BALL

601A6005

$10.92

601A

BEARING-BALL

601A6011

$39.70

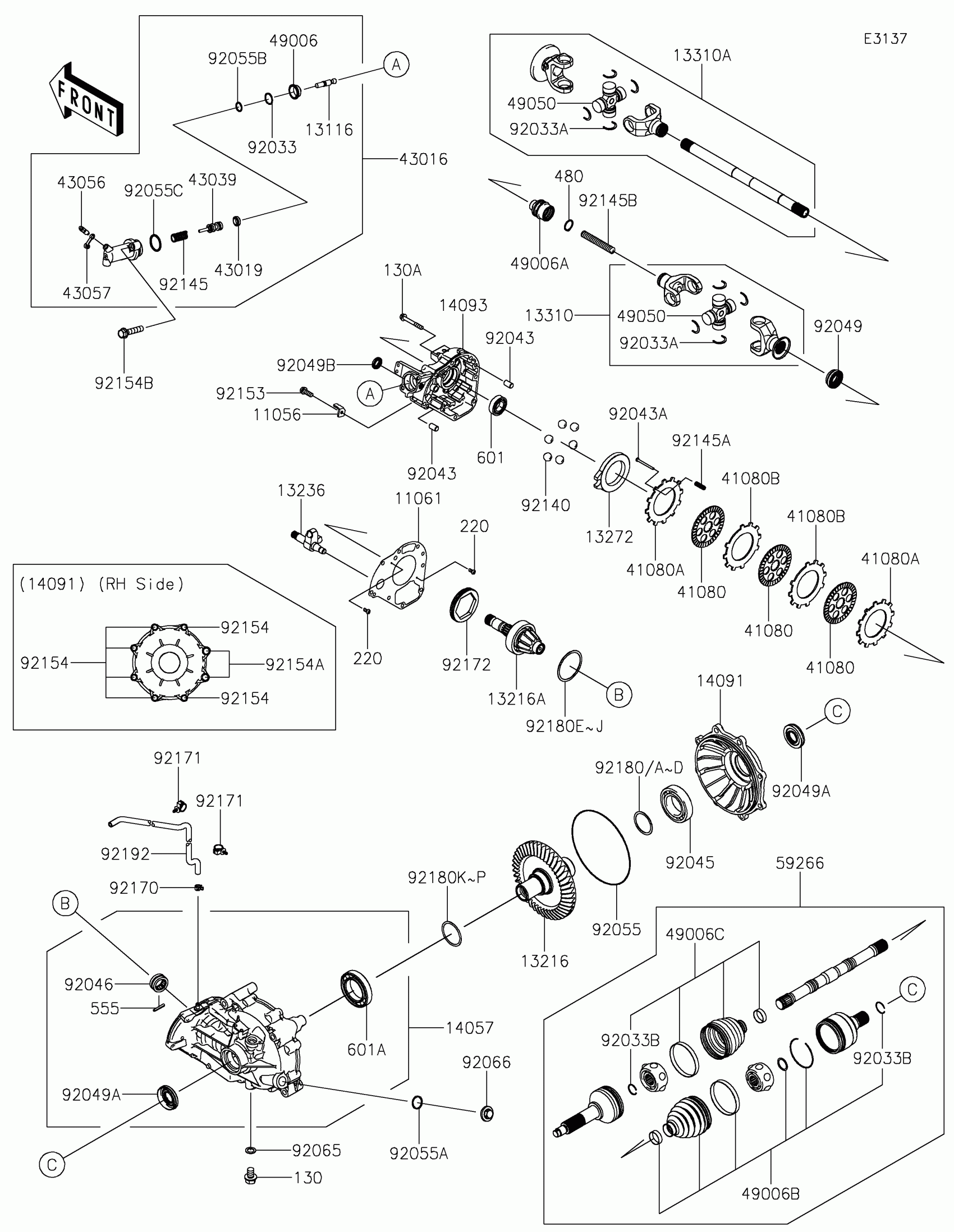

Kawasaki TERYX® CAMO Drive Shaft-Rear Diagram
