Description

Price

11061

GASKET,10.5X16X3

11061-0805

$2.17

13107

SHAFT,CROSS

13107-0758

$29.62

13107A

SHAFT,6X55

13107-0759

$8.51

13107B

SHAFT,DIFF LOCK

13107-0768

$9.14

13107C

SHAFT

13107-0775

$11.75

13107D

SHAFT,ACTUATOR OUTPUT

13107-0776

$96.13

13139

SHIFTER

13139-0017

$79.18

13139A

SHIFTER,DIFF LOCK

13139-0018

$74.16

13140

FORK-SHIFT

13140-0070

$38.61

13140A

FORK-SHIFT

13140-0635

$35.17

13151

SWITCH-COMP

13151-1086

$38.92

13168

LEVER

13168-0731

$96.68

13216

GEAR-COMP,BEVEL,8T

13216-0884

$330.57

13272

PLATE

13272-0985

$13.86

13272A

PLATE

13272-0986

$5.25

14041

COVER-COMP,LH

14041-0575

$116.62

14055

CASE-GEAR,CROSS SHAFT

14055-0602

$230.73

14055A

CASE-GEAR,RH

14055-0626

$226.37

14092

COVER,CROSS SHAFT CASE

14092-1042

$182.53

16085

GEAR,65T

16085-0605

$119.26

16085A

GEAR,13T

16085-0614

$119.26

16146

COVER-ASSY,INPUT SHAFT

16146-0740

$124.63

16172

ACTUATOR

16172-0038

$652.25

49006

BOOT,OUTSIDE

49006-0563

$96.83

49006A

BOOT,INSIDE

49006-0578

$96.79

49022

GEAR-BEVEL,35T

49022-0067

$442.02

49022A

GEAR-BEVEL,10T

49022-0579

$93.34

49022B

GEAR-BEVEL,16T

49022-0580

$158.28

59266

JOINT-BALL,LH

59266-0047

$671.25

59266A

JOINT-BALL,RH

59266-0048

$671.25

92005

FITTING

92005-1142

$7.47

92022

WASHER,25.3X32X0.5

92022-225

$4.37

92037

CLAMP,TUBE

92037-1461

$3.08

92043

PIN,6.2X8X14

92043-1263

$0.49

92045

BEARING-BALL,60/28

92045-1176

$29.09

92046

BEARING-NEEDLE,AJ501907

92046-0025

$36.38

92046A

BEARING-NEEDLE

92046-0050

$30.48

92046B

BEARING-NEEDLE

92046-1234

$21.42

92049

SEAL-OIL,28X60X7

92049-0089

$13.35

92049A

SEAL-OIL

92049-0160

$10.24

92055

RING-O,7.5X1.5

92055-0756

$1.03

92055A

"O" RING

92055-081

$14.08

92055B

RING-O,35.8MM

92055-1281

$5.84

92065

GASKET,10.5X16X1

92065-058

$3.16

92066

PLUG,36X7.5

92066-0744

$6.54

92145

SPRING

92145-0975

$3.29

92150

BOLT,SOCKET,6X10

92150-1650

$3.85

92153

BOLT,FLANGED-SMALL,6X8

92153-0964

$1.86

92154

BOLT,FLANGED,10X23

92154-0550

$3.29

92170

CLAMP

92170-1925

$1.98

92172

SCREW,SET,85X11.5

92172-1122

$68.10

92180

SHIM,70X80X0.15

92180-0972

$5.76

92180A

SHIM,70X80X0.2

92180-0973

$5.76

92180B

SHIM,70X80X0.5

92180-0974

$5.76

92180C

SHIM,70X80X0.8

92180-0975

$5.76

92180D

SHIM,70X80X1.0

92180-0976

$5.76

92180E

SHIM,70X80X1.2

92180-0977

$5.25

92180F

SHIM,80X90X0.15

92180-0978

$5.76

92180G

SHIM,80X90X0.2

92180-0979

$5.76

92180H

SHIM,80X90X0.5

92180-0980

$5.76

92180I

SHIM,80X90X0.8

92180-0981

$5.76

92180J

SHIM,80X90X1.0

92180-0982

$5.76

92180K

SHIM,80X90X1.2

92180-0983

$8.92

92200

WASHER

92200-1077

$3.75

130

BOLT-FLANGED,10X14

130BA1014

Unavailable

130A

BOLT-FLANGED,8X25

130CA0825

$1.31

130B

BOLT-FLANGED,10X30

130CA1030

$1.93

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21

132A

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.24

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132C

BOLT-FLANGED-SMALL,6X45

132BA0645

$3.53

481

CIRCLIP-TYPE-C,32MM

481J3200

$2.12

481A

CIRCLIP-TYPE-C,52MM

481J5200

$3.92

551

PIN-DOWEL,4X10

551A0410

$0.66

551A

PIN-DOWEL

551A1016

$2.32

601

BEARING-BALL

601B6010

$44.57

601A

BEARING-BALL

601B6011

$56.05

670

O RING

670D3022

$2.29

702

TUBE-RUBBER,5X8X930

702A05930

$7.86

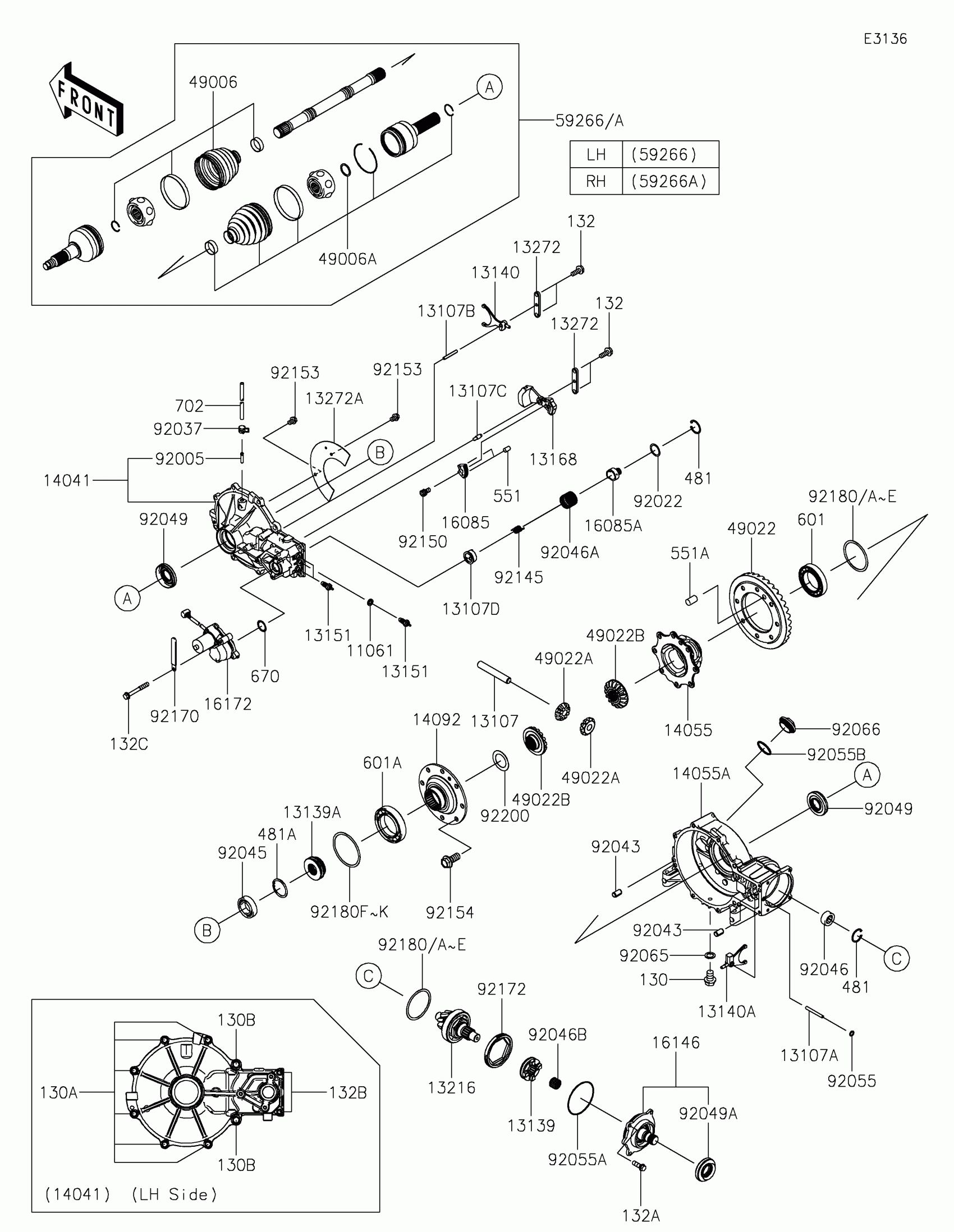

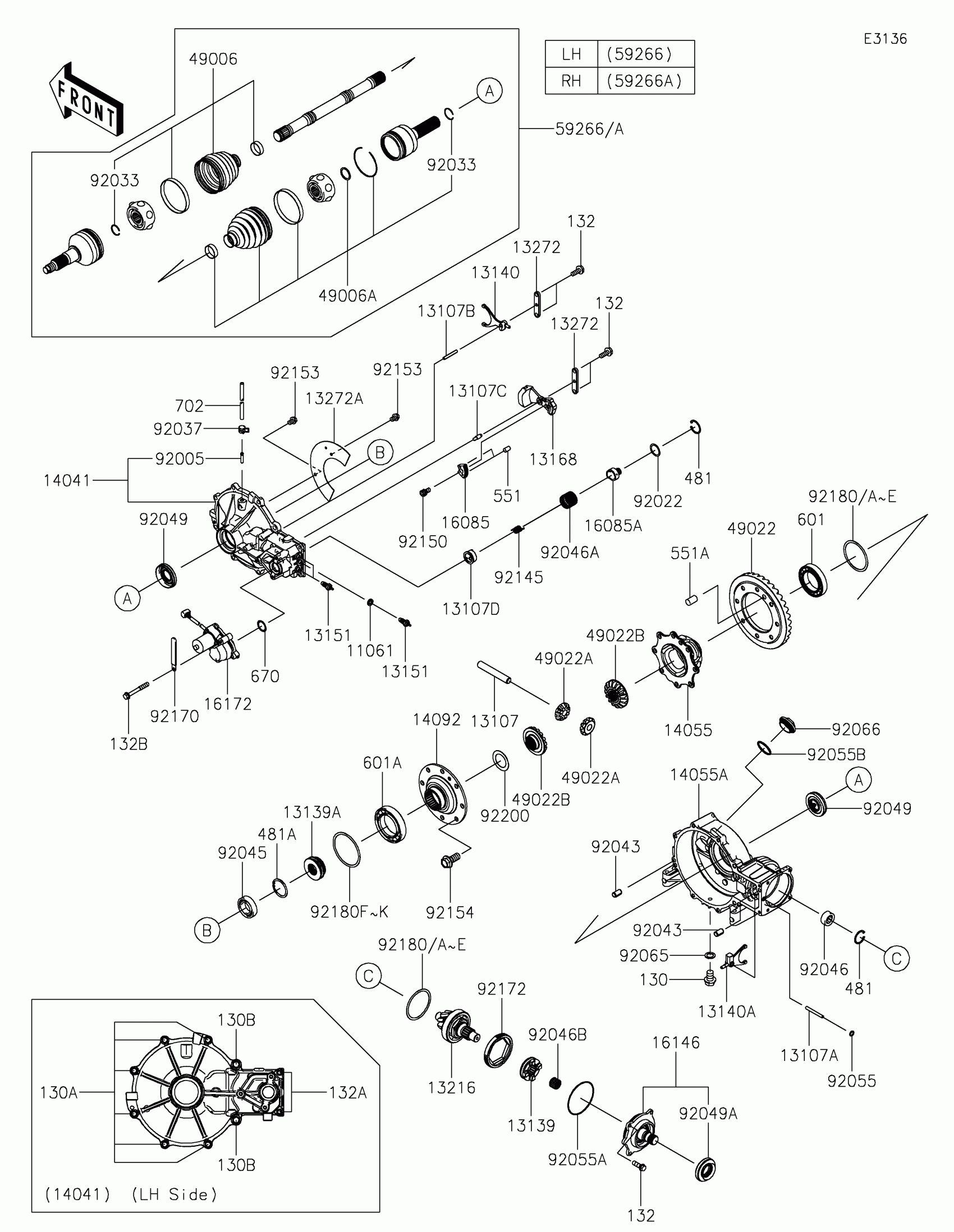

Kawasaki TERYX® CAMO Drive Shaft-Front Diagram

BOLT-FLANGED,10X14
