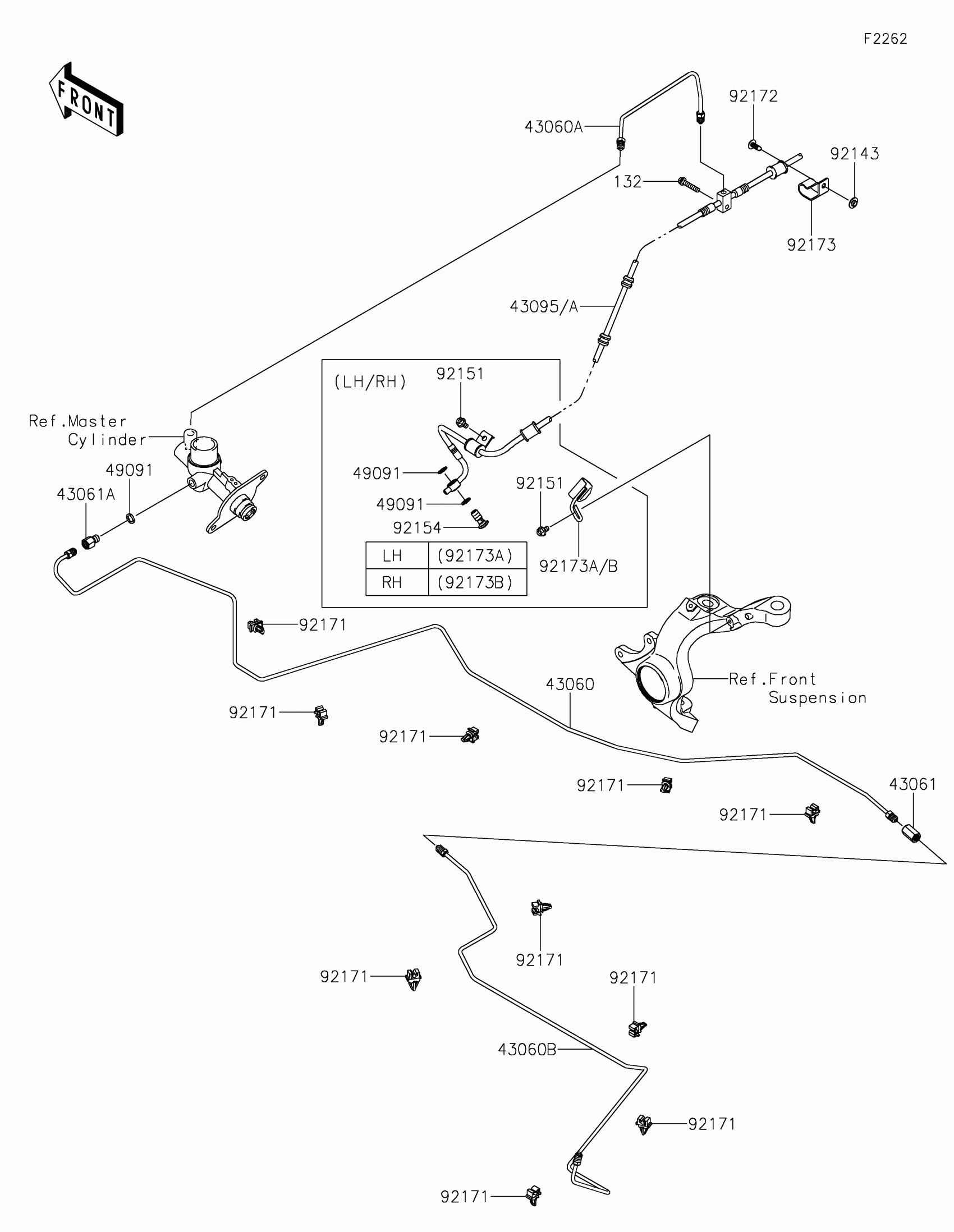

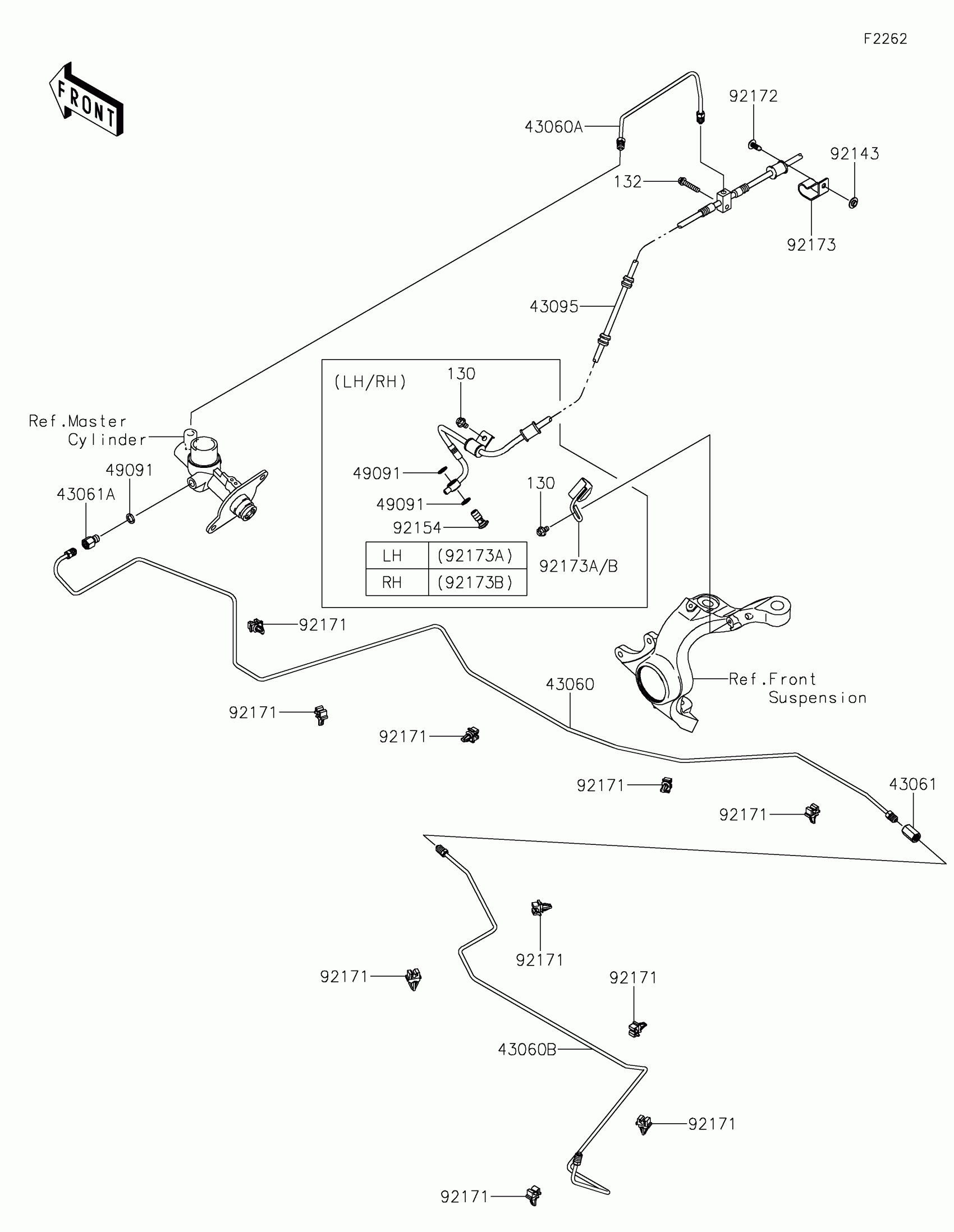

Kawasaki TERYX® Brake Piping Diagram

Description

Price

43060

PIPE-BRAKE,M/C-JOINT

43060-0316

$44.45

43060A

PIPE-BRAKE,M/C-FR JOINT

43060-0320

$20.76

43060B

PIPE-BRAKE,JOINT-BRAKE

43060-0324

$37.94

43061

JOINT-BRAKE

43061-0003

$47.25

43061A

JOINT-BRAKE,M/C

43061-0302

$33.87

43095A

HOSE-BRAKE,FR

43095-1568

$144.44

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92143

COLLAR

92143-1087

$3.11

92151

BOLT,6X10

92151-1344

$2.03

92154

BOLT,TORX,10X23

92154-1875

$9.37

92171

CLAMP

92171-0805

$3.11

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP

92173-0930

$7.51

92173A

CLAMP,LH

92173-0934

$9.78

92173B

CLAMP,RH

92173-0935

$9.78

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17
