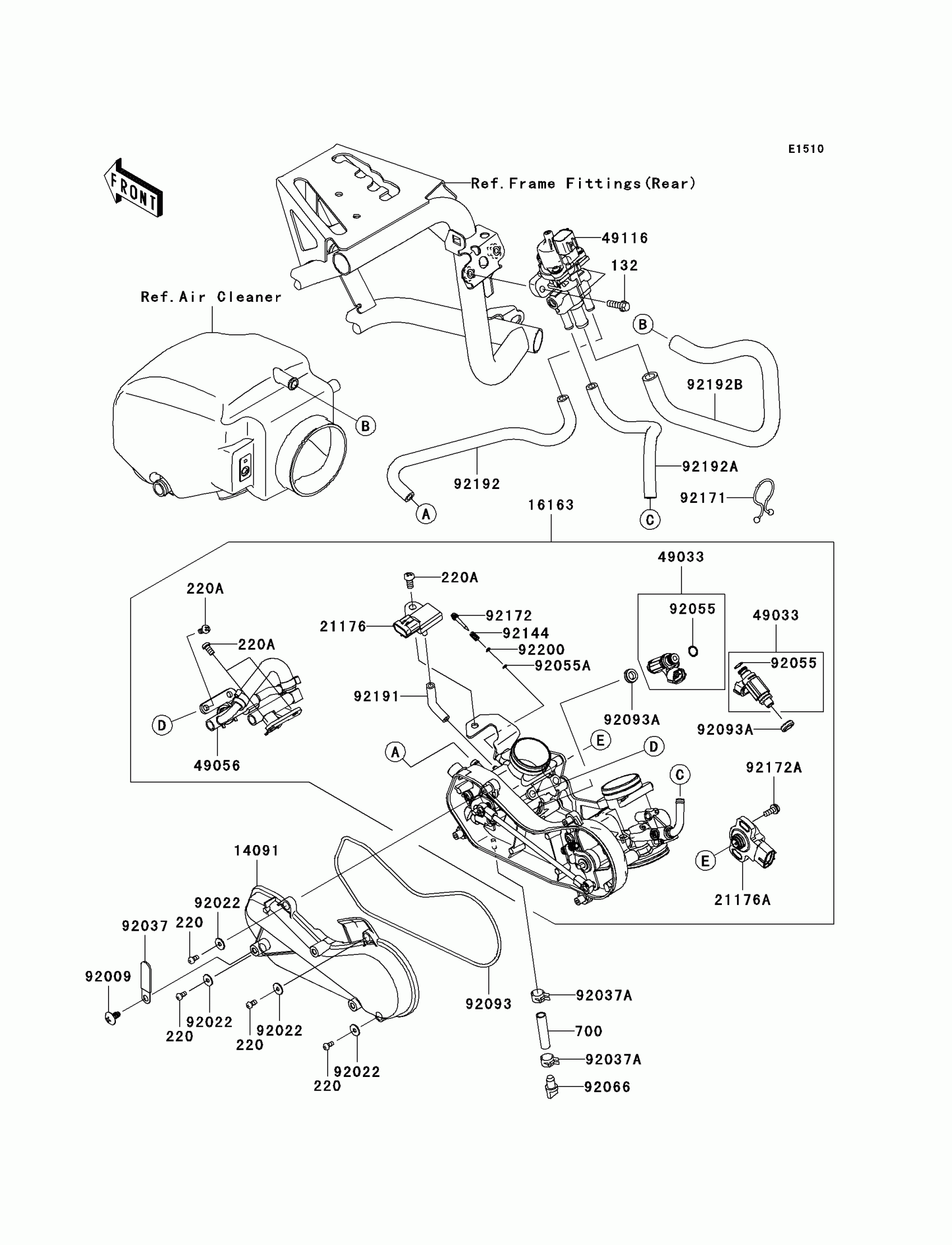

Kawasaki Teryx 750 FI 4X4 (SGE) Throttle Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$2.97

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

220A

SCREW-PAN-CROS,6X12

220AA0612

$0.95

700

TUBE-PVC

700Q0740

$7.90

14091

COVER,THROTTLE LINK

14091-1731

$21.24

16163

THROTTLE-ASSY,34EIS

16163-0137

Unavailable

21176

SENSOR,PRESSURE

21176-0058

$126.04

21176A

SENSOR,TPS

21176-0100

$194.62

49033

NOZZLE-INJECTION

49033-1060

$125.34

49056

PIPE-INJECTION

49056-0028

$383.76

49116

VALVE-ASSY,ISC

49116-0026

$234.02

92009

SCREW,6X12

92009-1480

$2.23

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,L=45

92037-1539

$4.42

92037A

CLAMP

92037-2113

$0.97

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92055A

RING-O,AIR SCREW

92055-1658

$4.53

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL

92093-0082

$4.46

92093A

SEAL

92093-0127

$8.04

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$4.33

92171

CLAMP

92171-0876

$2.42

92172

SCREW

92172-0156

$14.39

92172A

SCREW

92172-0254

$2.09

92191

TUBE,3.2X7.4X70

92191-1552

$3.71

92192

TUBE,ISC-FR THROBO

92192-0765

$8.75

92192A

TUBE,ISC-RR THROBO

92192-0766

$7.92

92192B

TUBE,ISC-DUCT

92192-0767

$21.41

92200

WASHER,PILOT AIR SCREW

92200-1564

$1.82
