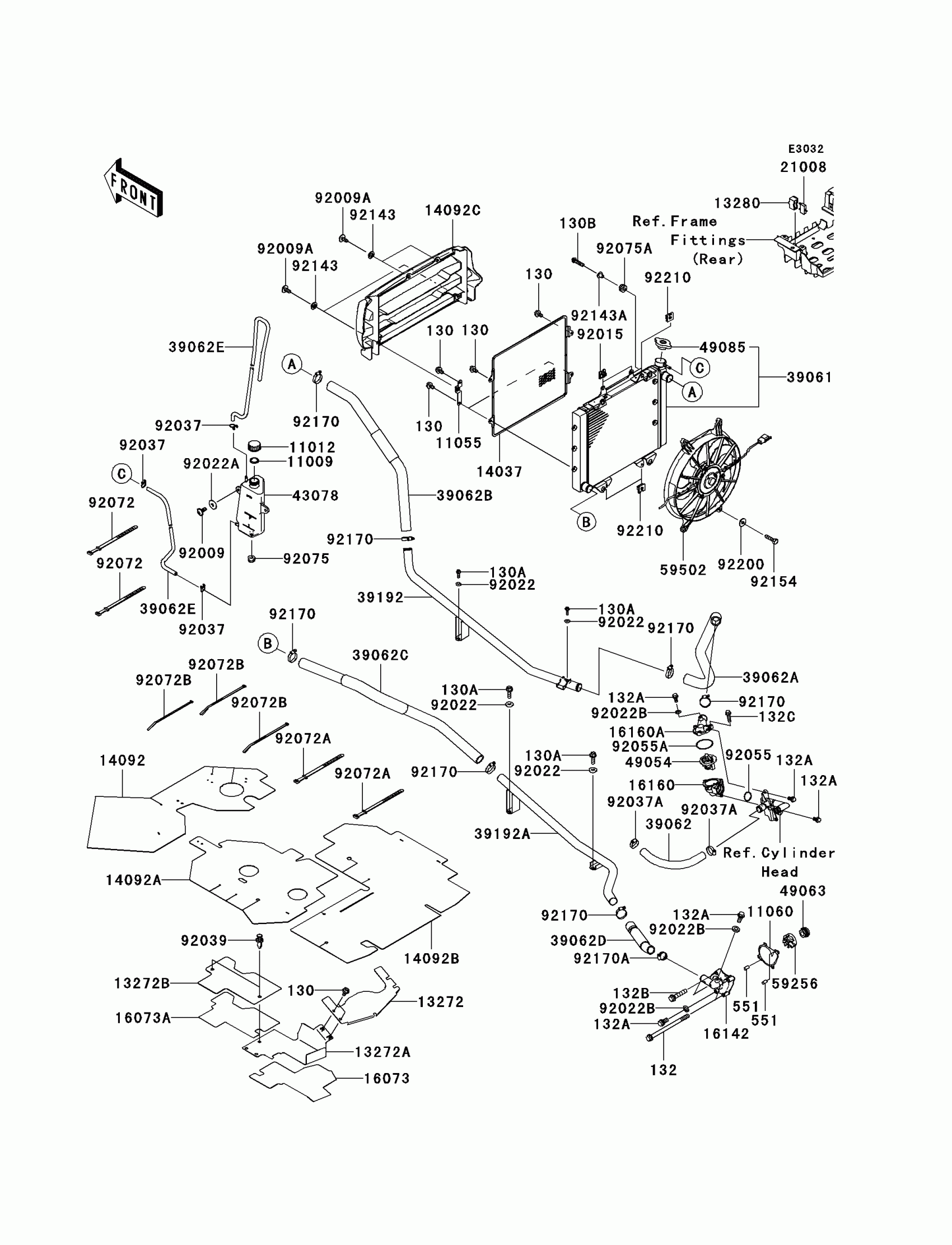

Kawasaki Teryx 750 FI 4X4 (SGE) Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

11012

CAP

11012-1084

$1.72

11055

BRACKET,RAD. COVER

11055-1953

$16.81

11060

GASKET,WATER PUMP

11060-1964

$7.58

13272

PLATE

13272-0729

$42.71

13272A

PLATE

13272-0738

$35.52

13272B

PLATE

13272-0739

Unavailable

13280

HOLDER,BREAKER

13280-0082

$5.60

14037

SCREEN

14037-0104

$116.29

14092

COVER

14092-0083

$48.26

14092A

COVER

14092-0084

$38.29

14092B

COVER

14092-0085

$49.15

14092C

COVER,RADIATOR,F.BLACK

14092-0086-6Z

$31.72

16073

INSULATOR

16073-0110

$15.16

16073A

INSULATOR

16073-0111

$12.42

16142

COVER-PUMP,WATER

16142-0002

$83.66

16160

BODY,THERMOSTAT,LWR

16160-0189

$79.78

16160A

BODY,THERMOSTAT,UPP

16160-0225

$67.23

21008

BREAKER,RAD. FAN,12A

21008-0008

$29.57

39061

RADIATOR-ASSY

39061-0180

$455.41

39062

HOSE-COOLING,FR HEAD-THERMO

39062-0316

$12.10

39062A

HOSE-COOLING,THERMO-RH PIPE

39062-0317

$12.68

39062B

HOSE-COOLING,RH PIPE-RAD.

39062-0318

$31.74

39062C

HOSE-COOLING,RAD.-LH PIPE

39062-0319

$31.74

39062D

HOSE-COOLING,RAD.-W/P

39062-0320

$10.35

39062E

HOSE-COOLING,5.5X10.5X400

39062-0324

$11.04

39192

PIPE-WATER,RH

39192-0121

$69.27

39192A

PIPE-WATER,LH

39192-0122

$69.27

43078

RESERVOIR

43078-0041

$54.40

49054

THERMOSTAT

49054-1055

$54.56

49063

SEAL-MECHANICAL

49063-1055

$20.06

49085

CAP-ASSY-PRESSURE

49085-0005

$45.60

59256

IMPELLER

59256-1069

$21.38

59502

FAN-ASSY

59502-0047

$351.91

92009

SCREW,6X16

92009-1621

$3.60

92009A

SCREW,6X14

92009-1662

$3.92

92015

NUT

92015-1487

$4.80

92022

WASHER,6.5X16X2

92022-1342

$3.92

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$1.49

92022B

WASHER,6.2X11X1

92022-304

$3.65

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X20

130BB0620

$1.49

130B

BOLT-FLANGED,6X25

130BB0625

$2.80

132

BOLT-FLANGED-SMALL,6X90

132BB0690

$6.83

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132C

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

551

PIN-DOWEL,4X8

551A0408

$1.49

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,COOLING HOSE

92037-1589

$18.57

92039

RIVET

92039-1229

$0.88

92055

RING-O,22.1X2.4

92055-1081

$3.55

92055A

RING-O,44.7X2.4

92055-1279

$7.34

92072

BAND,L=218

92072-032

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,L=292.1

92072-3509

$2.12

92075

DAMPER,RUBBER

92075-1123

$5.00

92075A

DAMPER RUBBER,RR FENR

92075-209

$4.69

92143

COLLAR

92143-1087

$4.31

92143A

COLLAR

92143-1353

$8.58

92154

BOLT

92154-0393

Unavailable

92170

CLAMP,COOLING HOSE

92170-1284

$6.34

92170A

CLAMP

92170-1497

$13.00

92200

WASHER

92200-0570

$4.91

92210

NUT

92210-1323

$4.18
