2010 Kawasaki Teryx 750 Fi 4X4 (Sge) Control Diagram

← All diagrams

Find the part on the Control diagram for your 2010 Kawasaki Teryx 750 Fi 4X4 (Sge), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

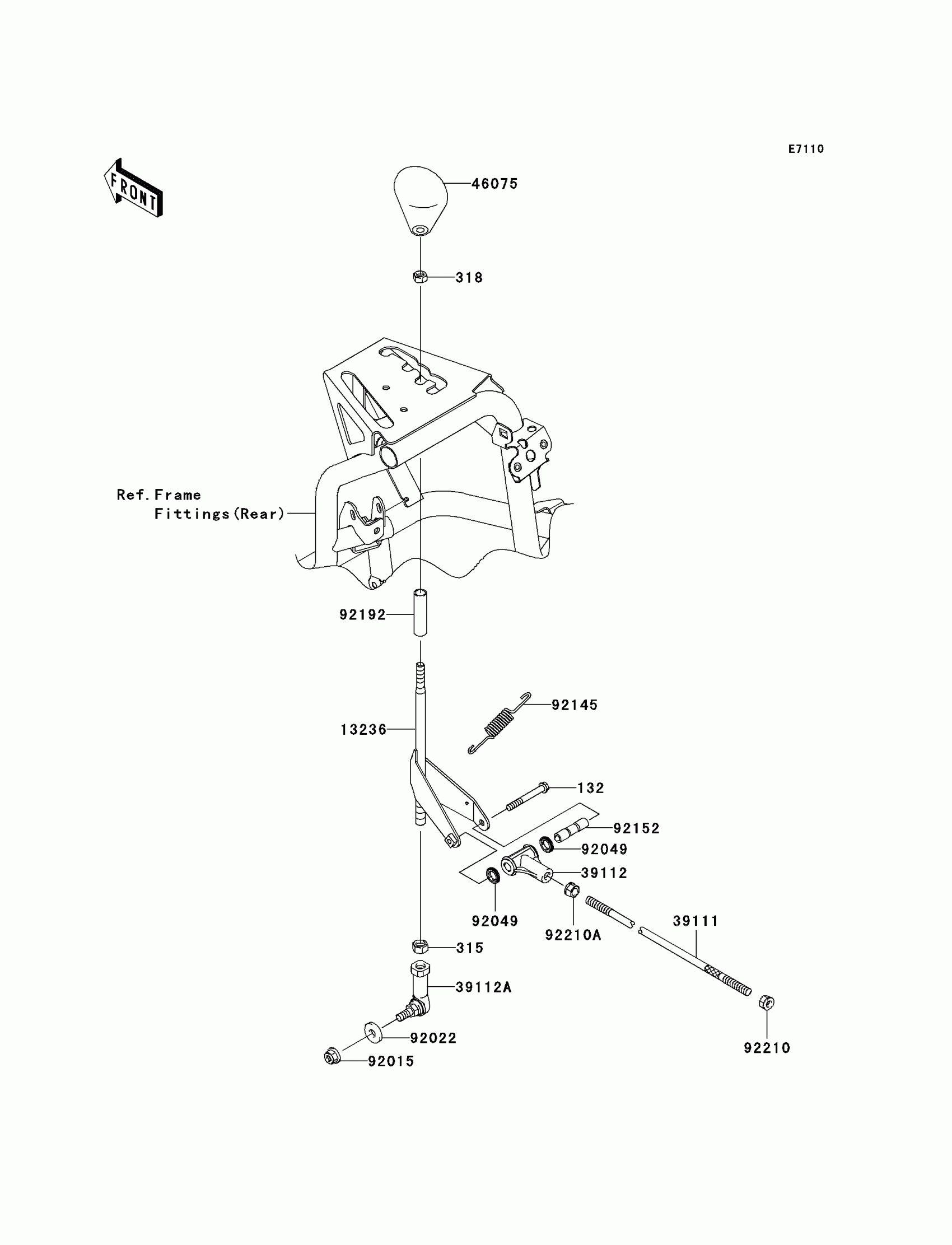

2010 Kawasaki Teryx 750 Fi 4X4 (Sge) Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$4.24

In stock

315

NUT-HEX-FINE,10MM

315AA1000

1

$0.63

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1

$1.20

In stock

13236

LEVER-COMP

13236-0152

1

$63.90

In stock

39111

ROD-TIE

39111-0040

1

$16.66

In stock

39112

RODEND-TIE

39112-1079

1

$25.83

In stock

39112A

RODEND-TIE,CONTROL PIVOT

39112-1084

1
Out of stock

46075

GRIP,SHIFT

46075-0046

1

$27.63

In stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER,8.5X22X3.2

92022-276

1
Out of stock

92049

SEAL-OIL

92049-1458

1
Out of stock

92145

SPRING

92145-0130

1

$4.07

In stock

92152

COLLAR,RODEND-TIE

92152-1222

1

$8.19

In stock

92192

TUBE,10X13X50

92192-0812

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock

92210A

NUT,LH,THREAD 8MM

92210-1284

1
Out of stock
