2008 Kawasaki Teryx® 750 4x4 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

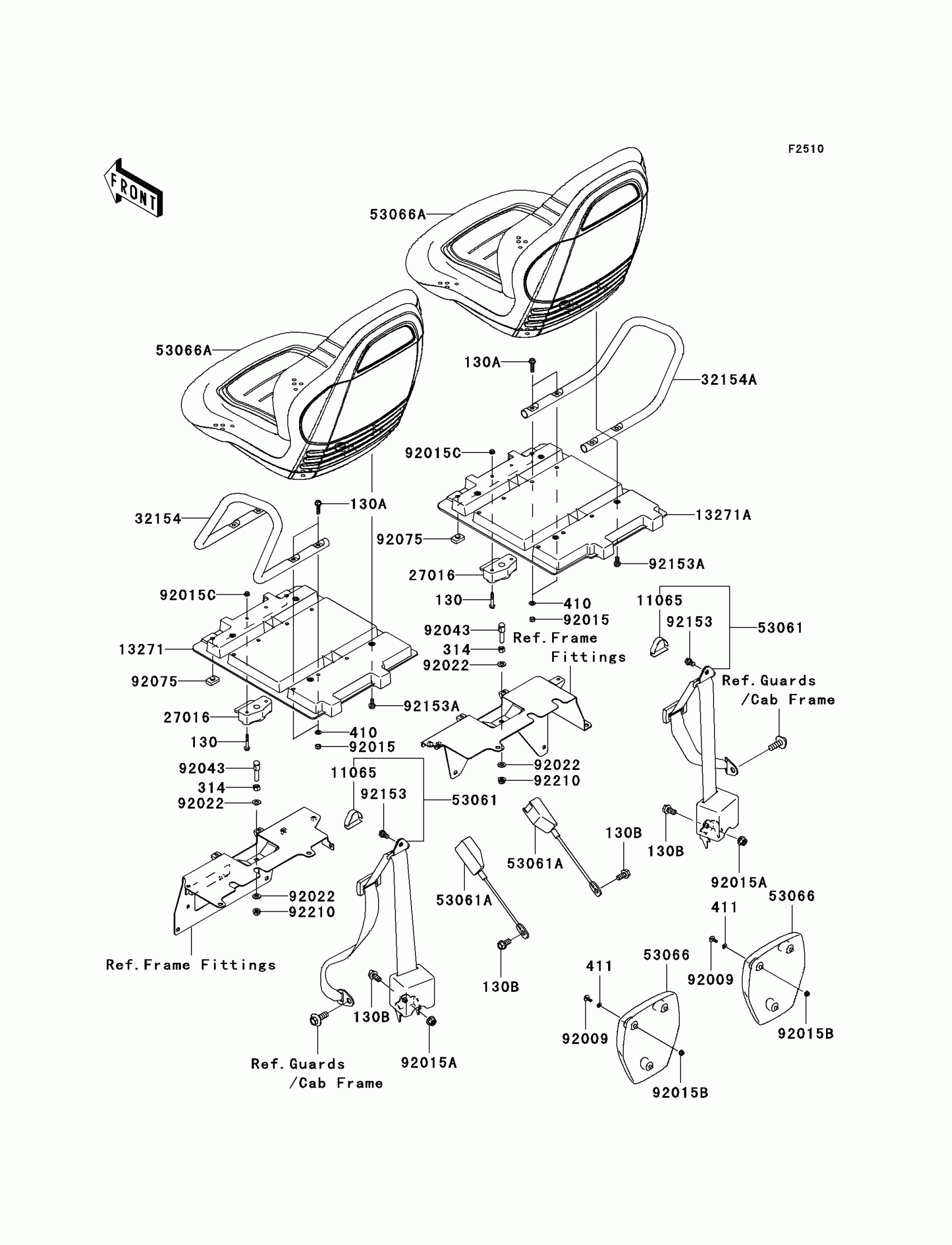

2008 Kawasaki Teryx® 750 4x4 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X40

130CA0640

1

$2.29

In stock

130A

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

130B

BOLT-FLANGED,12X25

130CA1225

1

$6.16

In stock

314

NUT-HEX-FINE,10MM

314AA1000

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock

11065

CAP,SEAT BELT

11065-0287

1
Out of stock

13271

1

$84.29

In stock

13271A

1

$84.29

In stock

27016

LOCK-ASSY,SEAT

27016-3758

1
Out of stock

32154

PIPE,SEAT PLATE,LH

32154-1249

1
Out of stock

32154A

PIPE,SEAT PLATE,RH

32154-1250

1
Out of stock

53061

BELT-SEAT

53061-0001

1

$178.36

In stock

53061A

BELT-SEAT

53061-0002

1

$42.34

In stock

53066

SEAT-ASSY,PAD HEAD,BLACK

53066-0163-6D

1

$57.47

In stock

53066A

SEAT-ASSY

53066-0195

1

$408.03

In stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,LOCK,8MM

92015-1124

1
Out of stock

92015A

NUT,12MM

92015-1368

1
Out of stock

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92015C

NUT,FLANGED,6MM

92015-1699

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1
Out of stock

92043

PIN

92043-0126

1
Out of stock

92075

DAMPER,SEAT

92075-1153

1
Out of stock

92153

BOLT,FLANGED,10X16

92153-1740

1
Out of stock

92153A

BOLT

92153-1924

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
