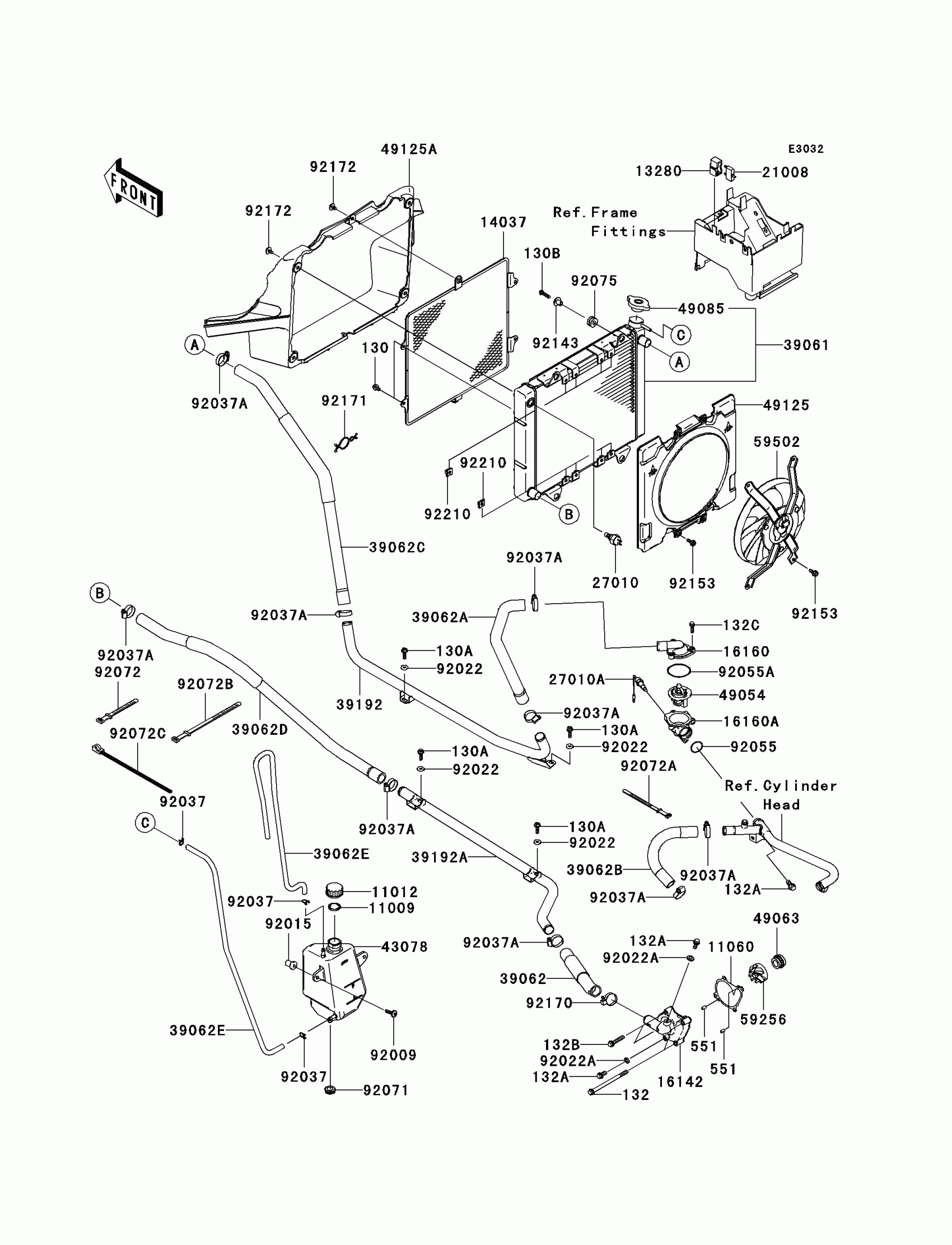

Kawasaki Teryx® 750 4x4 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11060

GASKET,WATER PUMP

11060-1964

$5.79

13280

HOLDER,BREAKER

13280-0082

$4.92

14037

SCREEN

14037-0080

$128.64

16142

COVER-PUMP,WATER

16142-0002

$85.44

16160

BODY,THERMOSTAT,UPP

16160-0046

$69.63

16160A

BODY,THERMOSTAT,LWR

16160-1092

$80.61

21008

BREAKER,RAD.FAN,12A

21008-0006

$32.96

27010

SWITCH,FAN

27010-0091

$96.16

27010A

SWITCH,SENSOR WATER

27010-1346

$107.46

39061

RADIATOR-ASSY

39061-0127

$498.43

39062

HOSE-COOLING,RAD.-W/P

39062-0174

$10.63

39062A

HOSE-COOLING,THERMO-RH PIPE

39062-0177

$12.85

39062B

HOSE-COOLING,FR HEAD-THERMO

39062-0184

$12.85

39062C

HOSE-COOLING,RH PIPE-RAD.

39062-0209

$34.44

39062D

HOSE-COOLING,RAD.-LH PIPE

39062-0210

$34.44

39062E

HOSE-COOLING,5.5X10.5X730

39062-0242

$11.80

39192

PIPE-WATER,RH

39192-0106

$63.39

39192A

PIPE-WATER,LH

39192-0107

$71.95

43078

RESERVOIR

43078-0041

$55.39

49054

THERMOSTAT

49054-1055

$48.15

49063

SEAL-MECHANICAL

49063-1055

$16.33

49085

CAP-ASSY-PRESSURE

49085-0005

$40.29

49125

SHROUD

49125-0031

$35.49

49125A

SHROUD

49125-0032

$45.28

59256

IMPELLER

59256-1069

$17.30

59502

FAN-ASSY

59502-0039

$375.99

92009

SCREW,6X25

92009-1465

$2.99

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X16X2

92022-1342

$2.99

92022A

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,COOLING HOSE

92037-1589

$14.01

92055

RING-O,22.1X2.4

92055-1081

$3.57

92055A

RING-O,44.7X2.4

92055-1279

$5.61

92071

GROMMET

92071-0020

$3.83

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=218

92072-032

$3.81

130

BOLT-FLANGED,6X10

130BB0610

$1.77

130A

BOLT-FLANGED,6X20

130BB0620

$0.47

130B

BOLT-FLANGED,6X25

130BB0625

$1.84

132

BOLT-FLANGED-SMALL,6X90

132BB0690

$5.93

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132C

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

551

PIN-DOWEL,4X8

551A0408

$0.68

92072C

BAND,L=250

92072-1237

$1.55

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1353

$6.54

92153

BOLT

92153-0531

$1.85

92170

CLAMP

92170-1497

$12.75

92171

CLAMP

92171-1736

$5.17

92172

SCREW,6X10

92172-0005

$1.73

92210

NUT

92210-1323

$3.19
