2008 Kawasaki Teryx® 750 4x4 Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

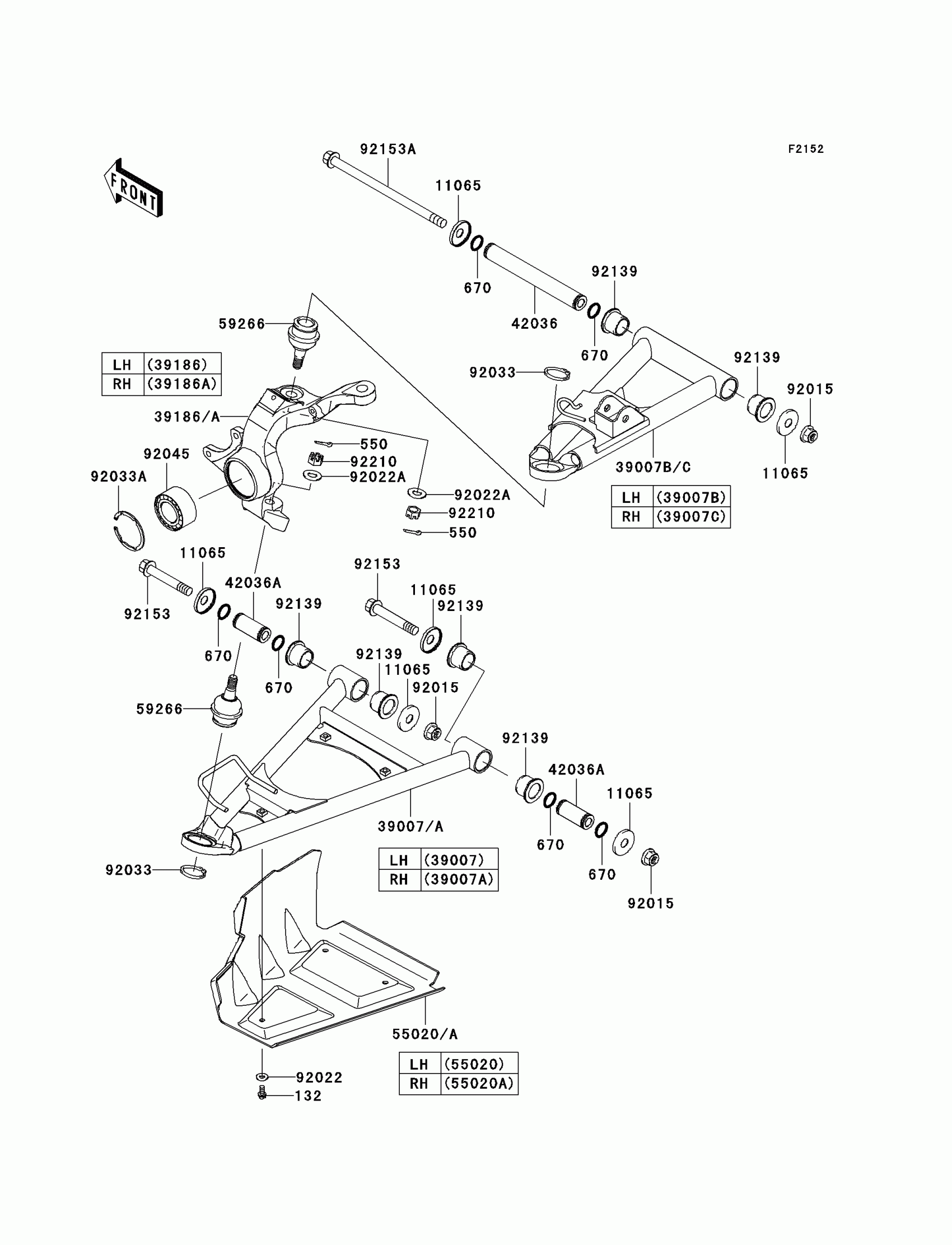

2008 Kawasaki Teryx® 750 4x4 Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.73

In stock

550

PIN-COTTER,3.0X25

550AA3025

1

$0.67

In stock

670

O RING,18MM

670B2018

1

$1.25

In stock

11065

CAP

11065-0253

1

$3.08

In stock

39007

ARM-SUSP,FR,LWR,LH

39007-0082

1

$93.90

In stock

39007A

ARM-SUSP,FR,LWR,RH

39007-0094

1

$106.11

In stock

39007B

ARM-SUSP,FR,UPP,LH

39007-0132

1
Out of stock

39007C

ARM-SUSP,FR,UPP,RH

39007-0133

1
Out of stock

39186

KNUCKLE,FR,LH

39186-0086

1

$205.70

In stock

39186A

KNUCKLE,FR,RH

39186-0087

1

$205.70

In stock

42036

SLEEVE

42036-0061

1

$42.44

In stock

42036A

SLEEVE

42036-0062

1

$22.11

In stock

55020

GUARD,FR,LH

55020-0308

1

$36.00

In stock

55020A

GUARD,FR,RH

55020-0309

1

$36.00

In stock

59266

JOINT-BALL

59266-0014

1

$66.22

In stock

92015

1

$7.04

In stock

92022

WASHER,7X16X1.2

92022-1344

1

$3.12

In stock

92022A

WASHER

92022-1831

1
Out of stock

92033

1

$5.07

In stock

92033A

RING-SNAP,55MM

92033-1274

1

$7.48

In stock

92045

BEARING-BALL,DAC3055W-3CS31

92045-0123

1
Out of stock

92139

BUSHING

92139-0231

1

$6.12

In stock

92153

1

$6.16

In stock

92153A

BOLT,FLANGED,12X213

92153-1958

1

$18.89

In stock

92210

NUT,CASTLE,12MM

92210-0395

1
Out of stock
