2008 Kawasaki Teryx® 750 4x4 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

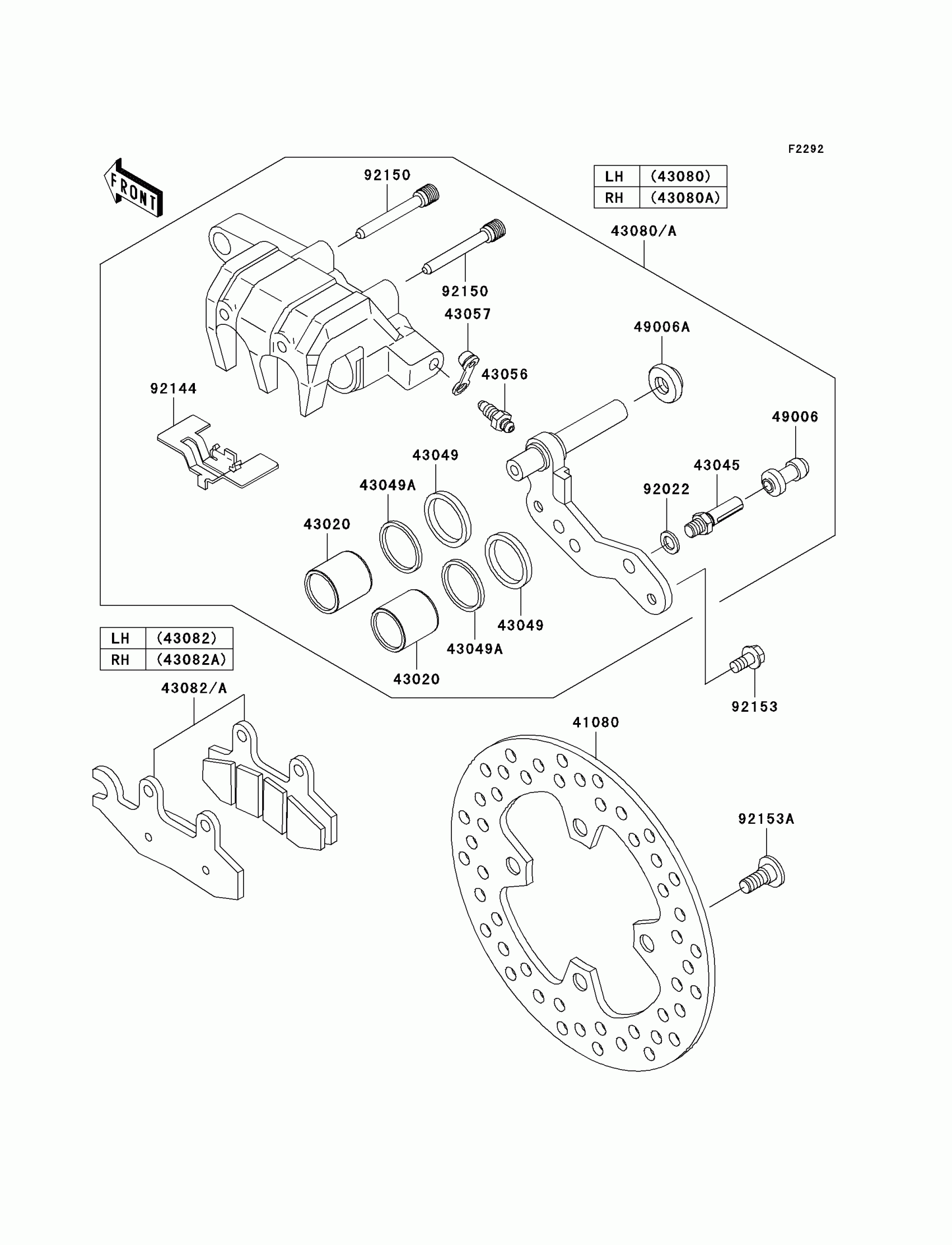

2008 Kawasaki Teryx® 750 4x4 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-0156

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0009

1
Out of stock

43045

SHAFT-CALIPER

43045-1010

1
Out of stock

43049

PACKING

43049-1063

1
Out of stock

43049A

PACKING

43049-1064

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-0060-GN

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-0061-GN

1
Out of stock

43082

PAD-ASSY-BRAKE,LH

43082-0069

1
Out of stock

43082A

PAD-ASSY-BRAKE,RH

43082-0082

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92144

SPRING,PAD

92144-1319

1
Out of stock

92150

BOLT

92150-1144

1
Out of stock

92153

BOLT,FLANGED,8X16

92153-1995

1
Out of stock

92153A

BOLT,SOCKET,8X20

92153-1996

1
Out of stock
