2026 Kawasaki TERYX®5 H2 Deluxe eS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2026 Kawasaki TERYX®5 H2 Deluxe eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

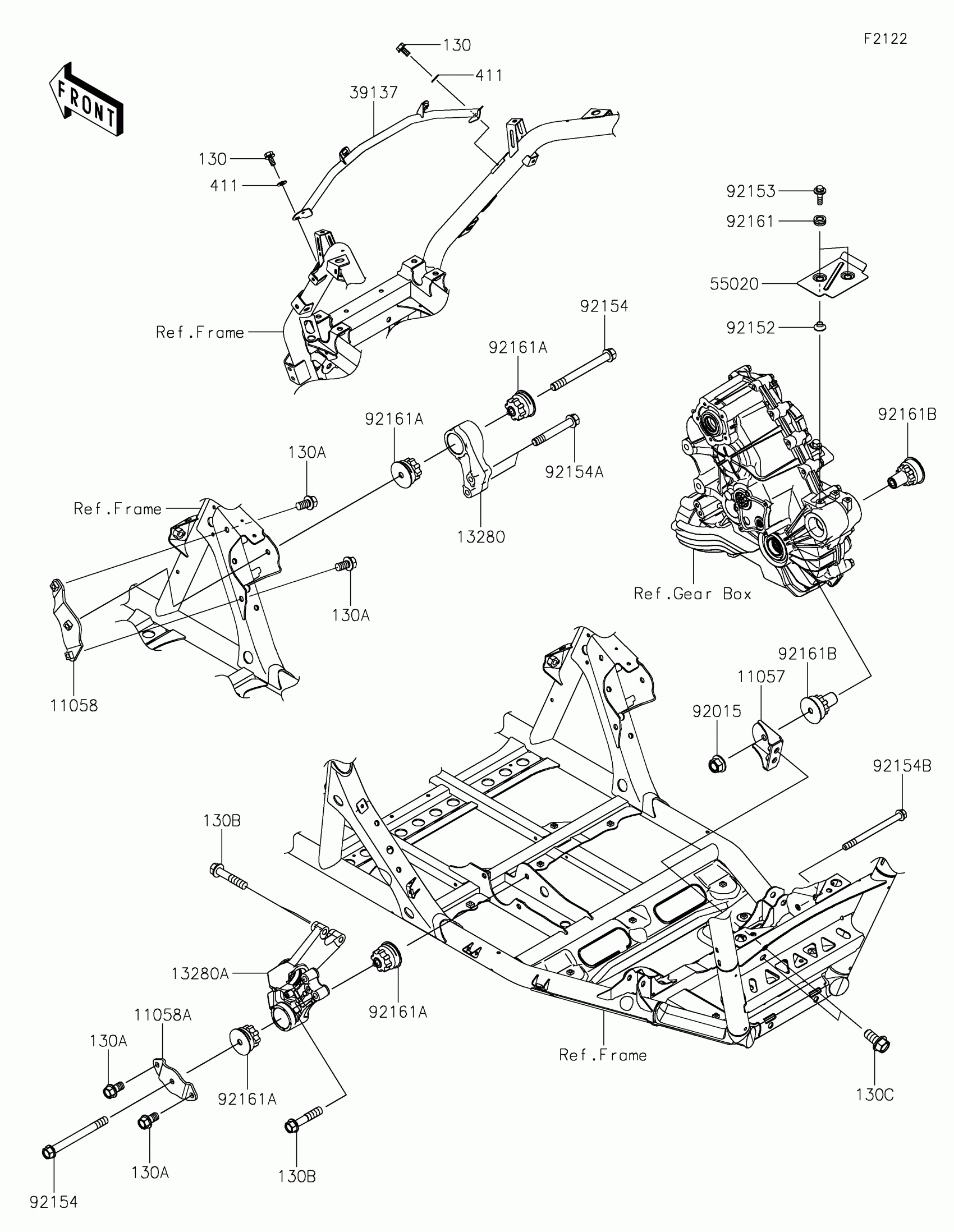

2026 Kawasaki TERYX®5 H2 Deluxe eS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RR

11057-2103

1
Out of stock

11058

BRACKET,FR,RH

11058-1679

1
Out of stock

11058A

BRACKET,FR,LH

11058-1680

1
Out of stock

13280

HOLDER

13280-1397

1
Out of stock

13280A

HOLDER,LH

13280-1407

1
Out of stock

39137

STAY-COMP,FR

39137-0783

1
Out of stock

55020

GUARD

55020-2555

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92152

COLLAR,6.3X8.3X7.2

92152-1865

1
Out of stock

92153

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92154

BOLT,FLANGED,10X105

92154-1132

1
Out of stock

92154A

BOLT,FLANGED,10X70

92154-1541

1
Out of stock

92154B

BOLT,FLANGED,12X160

92154-3916

1
Out of stock

92161

DAMPER

92161-2510

1
Out of stock

92161A

DAMPER,FRONT ENGINE MOUNT

92161-2591

1
Out of stock

92161B

DAMPER,REAR ENGINE MOUNT

92161-2592

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,10X18

130CA1018

1

$2.05

In stock

130B

BOLT-FLANGED,10X50

130CA1050

1

$2.93

In stock

130C

BOLT-FLANGED,12X25

130CA1225

1

$6.16

In stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
