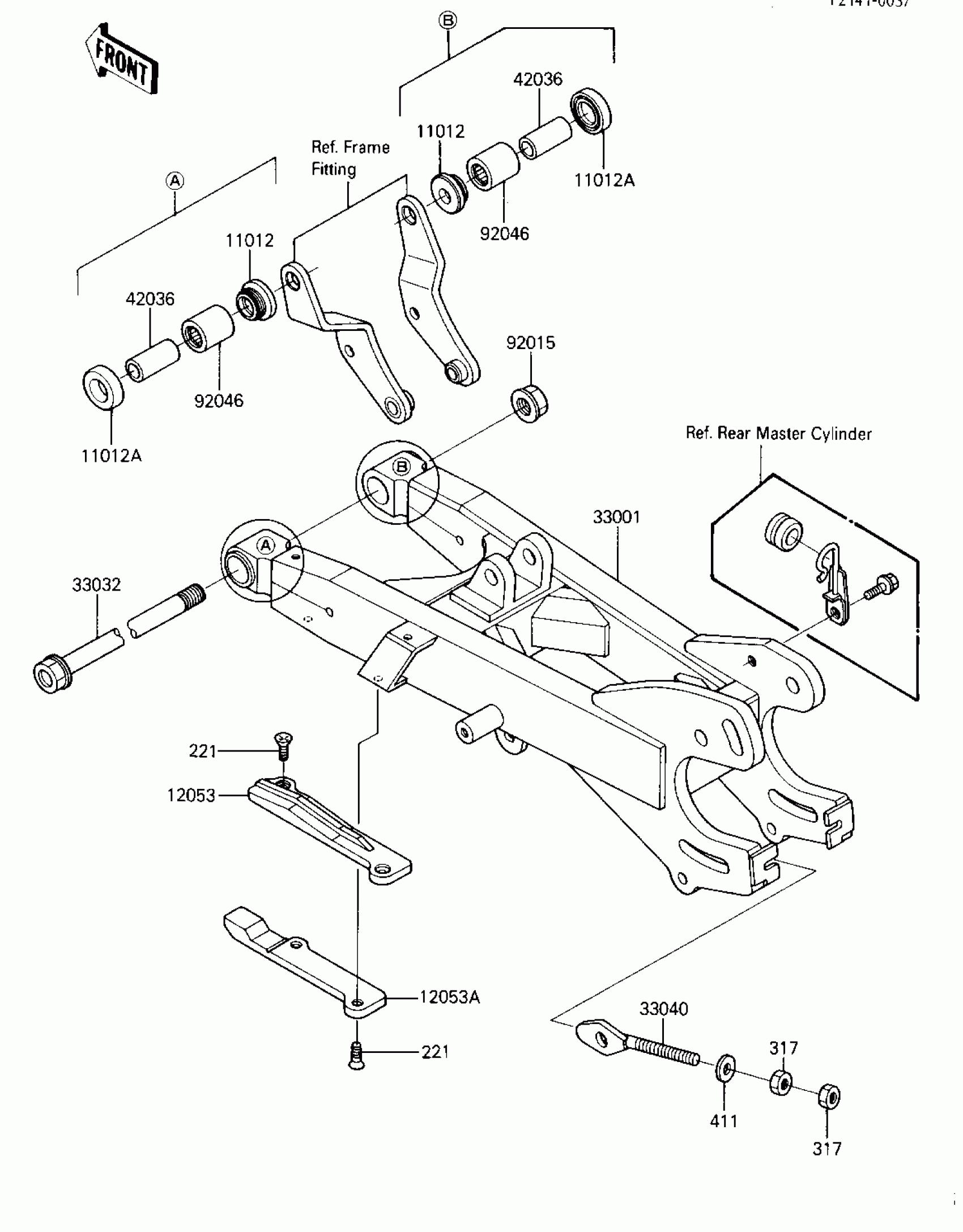

Kawasaki Tecate SWING ARM Diagram

#

Description

Price

11012

CAP,SWING ARM

11012-1355

Unavailable

11012A

CAP,SWING ARM

11012-1417

Unavailable

12053

GUIDE-CHAIN,FR,UPP

12053-1101

Unavailable

12053A

GUIDE-CHAIN

12053-1144

Unavailable

33001

ARM-COMP-SWING

33001-1265

$272.62

33032

SHAFT-SWING ARM

33032-1112

Unavailable

33040

ADJUSTER-CHAIN

33040-4006

Unavailable

42036

SLEEVE,SWING ARM,L=40

42036-1145

Unavailable

92015

NUT,14MM

92015-1407

$7.54

92046

BEARING-NEEDLE

92046-1128

$21.08

221

SCREW-CSK-CROS,6X10

221B0610

$2.79

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable
