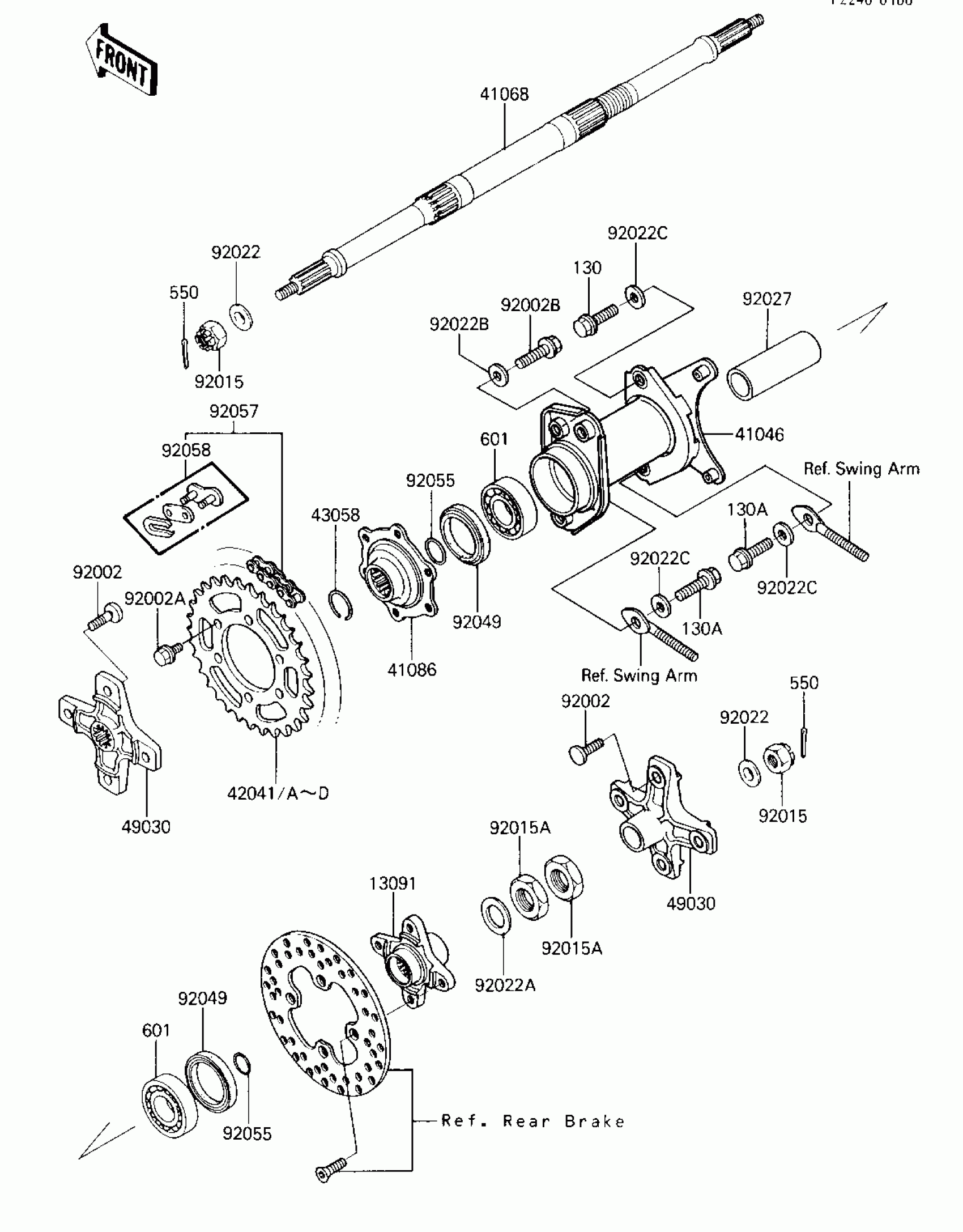

Find the part on the Rear Hub/axle/chain diagram for your 1986 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Tecate Rear Hub/axle/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,DISC PLATE

13091-1414

1
Out of stock

4104

HOUSING-BEARING

41046-1075

1
Out of stock

41068

AXLE,RR

41068-1216

1
Out of stock

41086

FLANGE,REAR SPROCKET

41086-1063

1
Out of stock

42041

SPROCKET-HUB

42041-1236

1
Out of stock

42041A

SPROCKET-HUB

42041-1237

1
Out of stock

42041B

SPROCKET-HUB

42041-1238

1
Out of stock

42041C

SPROCKET-HUB

42041-1239

1
Out of stock

42041D

SPROCKET-HUB

42041-1240

1
Out of stock

43058

RING,SNAP

43058-1060

1
Out of stock

49030

HUB,RR

49030-1078

1
Out of stock

92002

BOLT,10X30

92002-1388

1
Out of stock

92002A

BOLT,FLANGED,8X16

92002-1645

1
Out of stock

92002B

BOLT

92002-1714

1
Out of stock

92015

NUT,CASTLE,18MM

42045-018

1
Out of stock

92015A

NUT,LOCK,37MM

92015-1545

1
Out of stock

92022

WASHER,18.3X34X4.5

92022-1658

1
Out of stock

92022A

WASHER,37.5X48X2.3

92022-1746

1
Out of stock

92022B

WASHER

92022-1806

1
Out of stock

92022C

WASHER,12.5X28X4.5

92022-4037

1
Out of stock

92027

COLLAR,40.2X45.4X129

92027-1953

1
Out of stock

92049

SEAL-OIL

92049-1237

1
Out of stock

92055

RING-O,38MM

92055-1317

1
Out of stock

92057

DR CHAIN,EK520SH-0X94

92057-1203

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-1055

1
Out of stock

130

BOLT-FLANGED

130P1230

1
Out of stock

130A

BOLT-FLANGED

130P1235

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6008UU

601A6008UU

1
Out of stock
