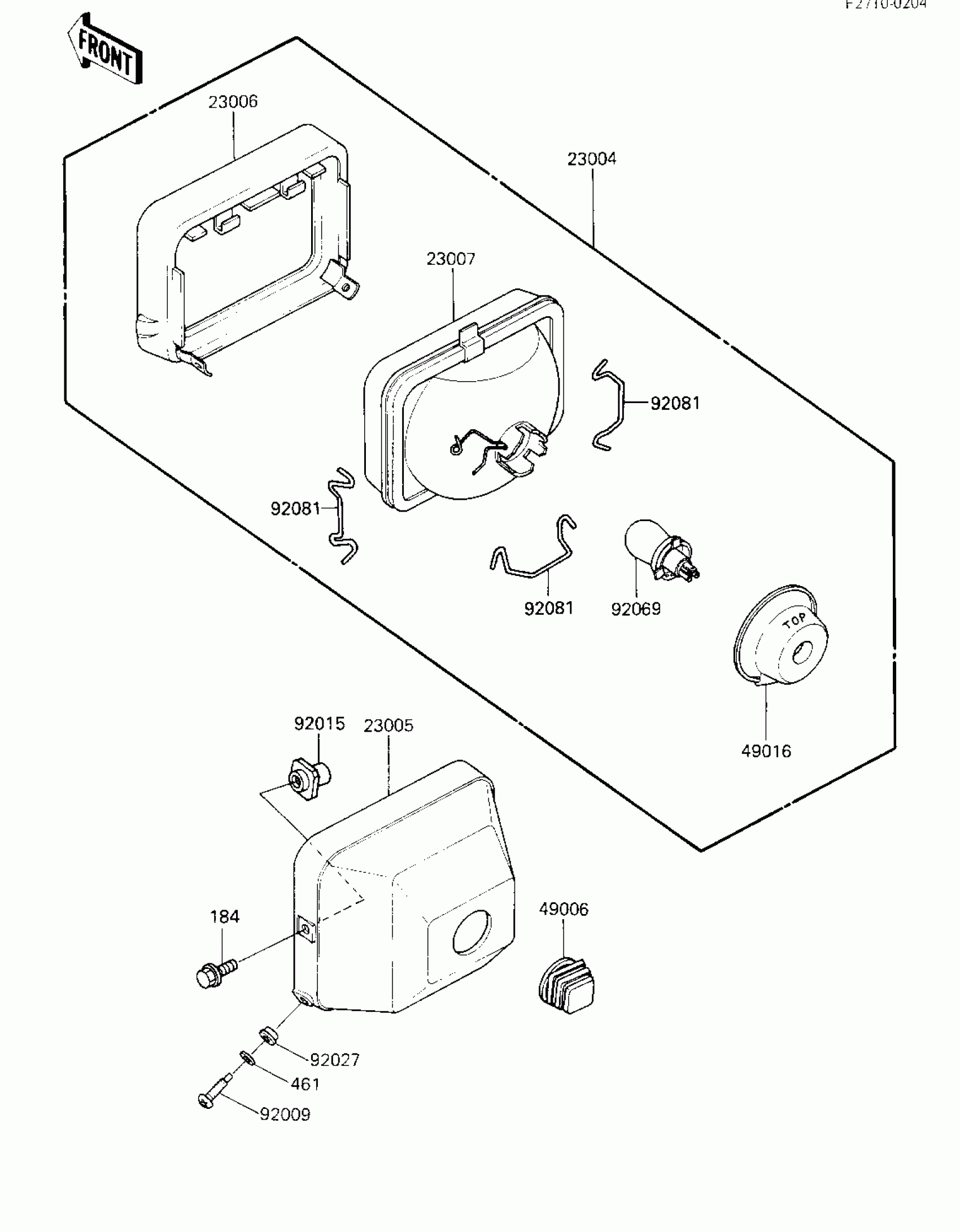

Kawasaki Tecate HEADLIGHT ('84 A1) Diagram

Description

Price

23004

LAMP-HEAD

23004-4005

$220.99

23005

BODY-COMP-HEAD LAMP,B

23005-4007

$65.10

23006

RIM-LAMP

23006-1012

$65.92

23007

LENS-COMP

23007-4004

$95.95

49006

BOOT,HEAD LAMP BODY

49006-1172

$22.41

49016

COVER-SEAL,HEAD LAMP

49016-1046

$11.85

92009

SCREW,5X16

92009-1693

$3.92

92015

NUT,INSERT,8MM

92015-4023

$10.34

92027

COLLAR,HEAD LAMP,BLACK

92027-1503

$3.92

92069

BULB,HEAD LAMP

92069-4005

Unavailable

92081

SPRING,HEAD LAMP

92081-1671

$5.49

184

BOLT-UPSET-WP-SMALL

184B0814

$0.35

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable
