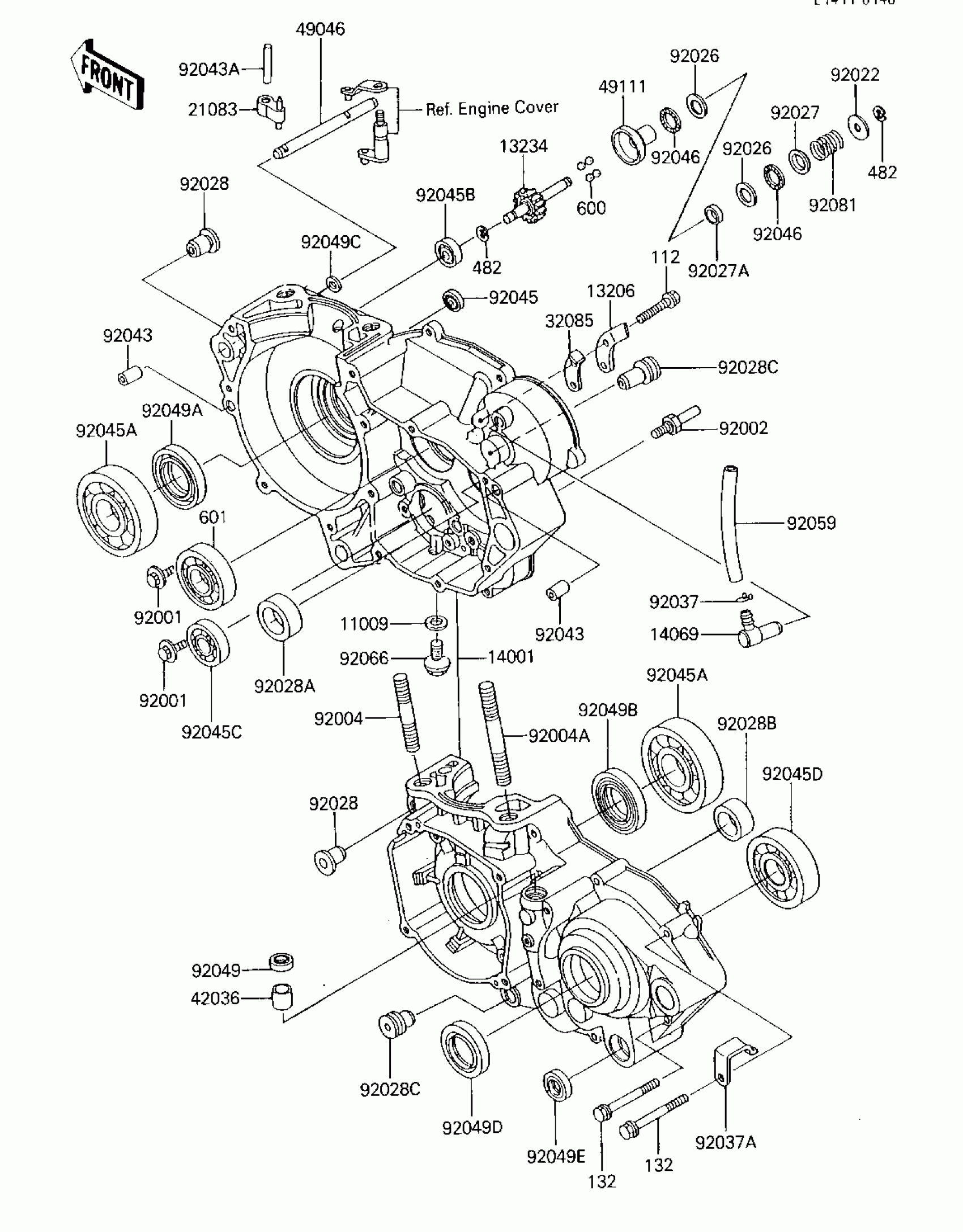

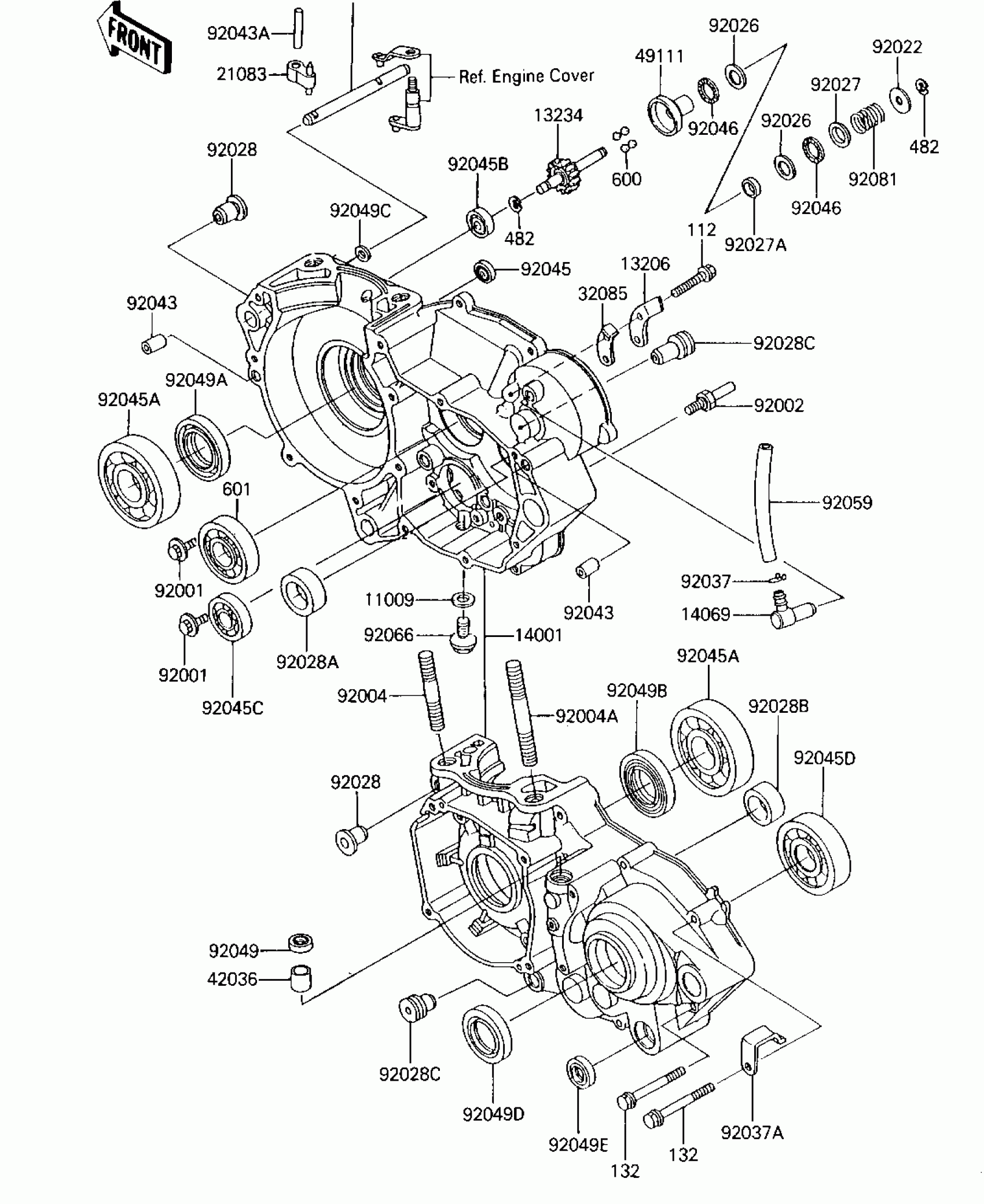

Kawasaki Tecate CRANKCASE Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.03

13206

GUIDE-KICK

13206-1052

$10.49

13234

SHAFT-COMP,GOVERNOR

13234-1061

Unavailable

14001

SET-CRANKCASE

14001-5206

Unavailable

14069

BREATHER

14069-003

$7.83

21083

ARM

21083-1058

Unavailable

32085

STOPPER,KICKSTARTER

32085-1016

Unavailable

42036

SLEEVE

42036-1177

Unavailable

49046

ROD-GOVERNOR

49046-1055

Unavailable

49111

HOLDER-GOVERNOR WEIGHT

49111-1051

$68.68

92001

BOLT,W/WASHER,6X14

92001-1829

$3.53

92002

BOLT,8X15

92002-1601

$5.69

92004

STUD,10X35

92004-1063

Unavailable

92004A

STUD,10X45

92004-1065

Unavailable

92022

WASHER,8.3X28X1.6

92022-1634

$2.97

92026

SPACER,15X28X1

92026-1238

$6.46

92027

COLLAR

92027-1838

$29.83

92027A

COLLAR,15.2X17X4

92027-1839

$11.73

92028

BUSHING

92028-1133

Unavailable

92028A

BUSHING,26X35X14

92028-131

$33.95

92028B

BUSHING,23X30X13

92028-132

$38.79

92028C

BUSHING

92028-1366

$26.07

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,HARNESS

92037-1318

$7.25

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043A

PIN,4X32

92043-1258

Unavailable

92045

BEARING-BALL

92045-1211

$9.03

92045A

BEARING,BALL,#6305SH

92045-1024

Unavailable

92045B

BEARING-BALL

92045-1212

$9.41

92045C

BEARING-BALL,6905Z

92045-1058

$30.22

92045D

BEARING-BALL,6205

92045-1115

Unavailable

92046

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92049

SEAL-OIL,SB12205

92049-004

$7.63

92049A

SEAL-OIL,TCJ25457

92049-1051

$32.85

92049B

SEAL-OIL,TCJ20407

92049-1052

$28.50

92049C

SEAL-OIL,SDO8144

92049-1207

$7.41

92049D

SEAL-OIL,TB3040

92050-033

$17.58

92049E

SEAL-OIL,TB16267

92051-003

Unavailable

92059

TUBE,6X9X500

92059-1125

$14.06

92066

PLUG,DRAIN

92066-1241

$5.09

92081

SPRING,GOVERNOR

92081-1934

$7.15

112

BOLT-UPSET

112G0618

Unavailable

132

BOLT-FLANGED-SMALL,6X40

132G0640

Unavailable

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

600

BALL-STEEL,5/16

600A1000

$0.66

601

BEARING-BALL,#6204C3

601B6204

$10.33
