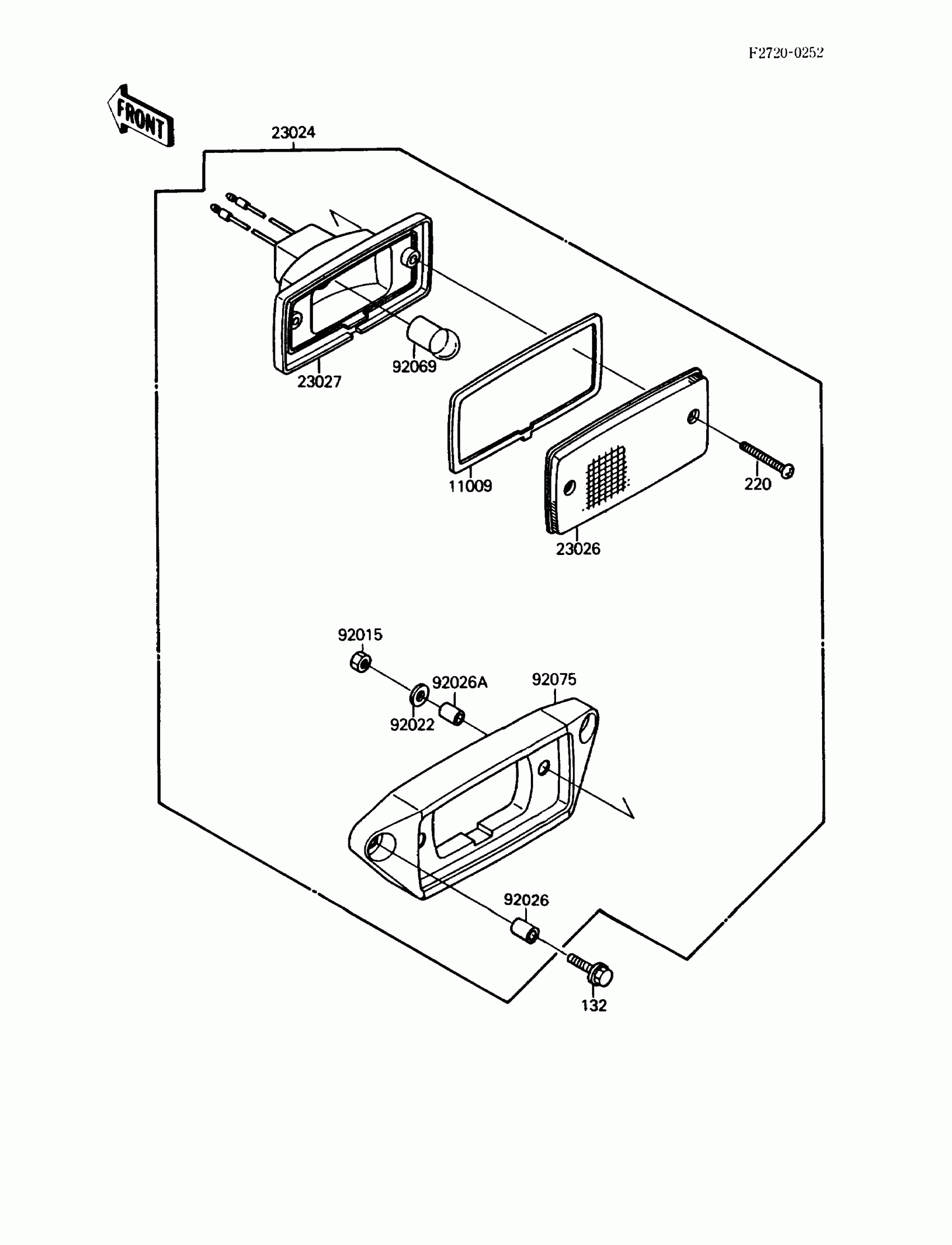

Kawasaki Tecate 4 Taillight(s) Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-4004

$7.49

23024

LAMP-ASSY-TAIL

23024-1104

Unavailable

23026

LENS,TAIL LAMP

23026-4003

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-4001

$16.85

92015

NUT,4MM

92015-1550

$2.68

92022

WASHER,PLAIN,4MM

92022-1762

$2.68

92026

SPACER,6.3X8.3X10

92026-1260

$4.08

92026A

SPACER,4.5X6.5X10

92026-1261

$4.61

92069

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER,TAIL LAMP

92075-1782

$44.48

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

220

SCREW-PAN-CROS

220B0430

$0.80
