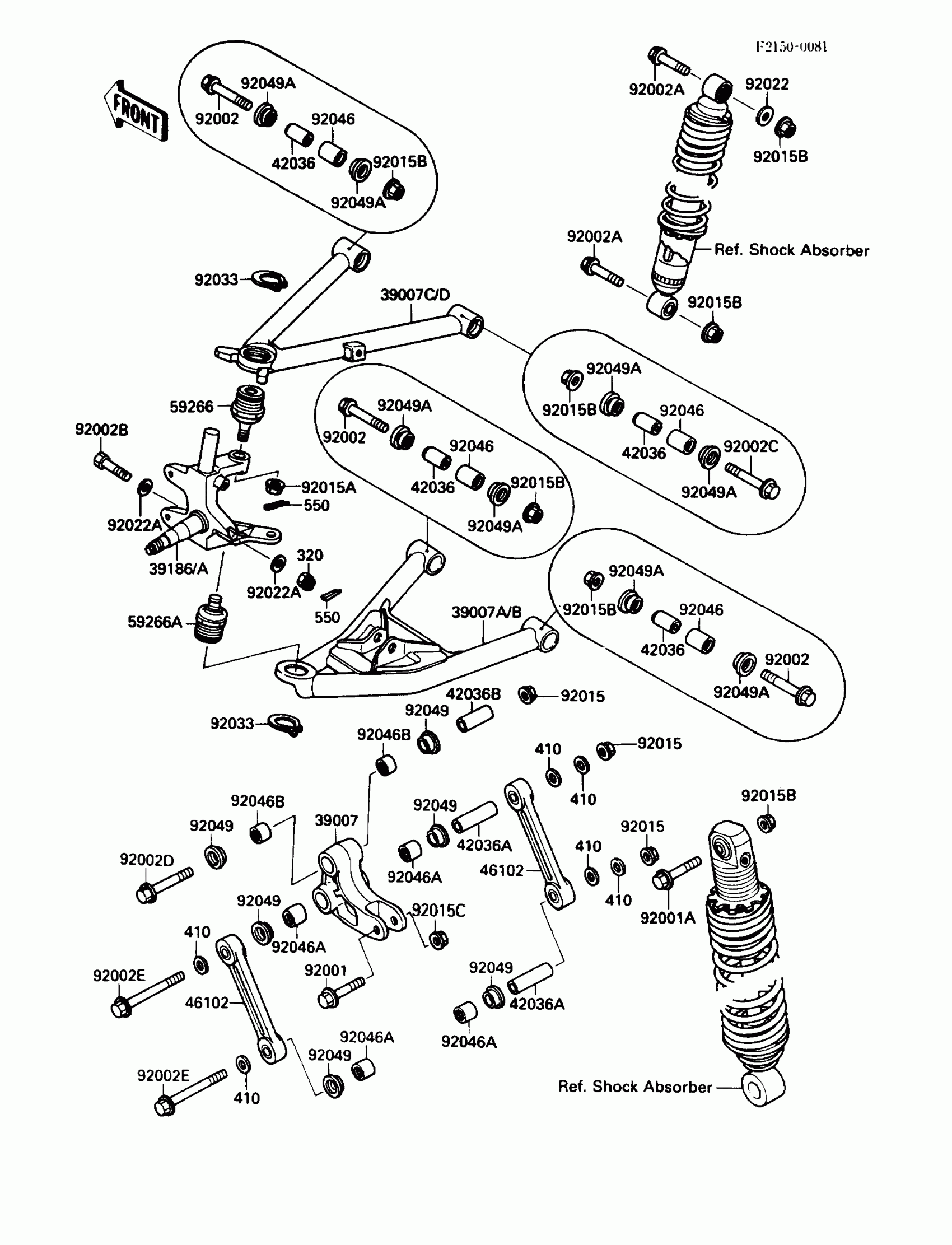

Kawasaki Tecate 4 Suspension(KXF250-A2) Diagram

#

Description
Price

39007

ARM-SUSP,UNI TRAK

39007-1152

$120.92

39007A

ARM-SUSP,LWR,LH

39007-1153

$93.05

39007B

ARM-SUSP,LWR,RH

39007-1154

$89.60

39007C

ARM-SUSP,UPP,LH

39007-1163

$89.70

39007D

ARM-SUSP,UPP,RH

39007-1164

Unavailable

39186

KNUCKLE,LH

39186-1087

$227.54

39186A

KNUCKLE,RH

39186-1088

$227.54

42036

SLEEVE,10X17X40

42036-1183

$16.83

42036A

SLEEVE,L=65

42036-1223

Unavailable

42036B

SLEEVE,L=49

42036-1224

$30.44

46102

ROD,SUSPENSION

46102-1233

$21.34

59266

JOINT-BALL

59266-1075

$99.07

59266A

JOINT-BALL

59266-1077

$95.24

92001

BOLT,10X45

92001-1182

Unavailable

92001A

BOLT,10X50

92001-1913

$8.24

92002

BOLT,FLANGED,10X61

92002-1738

$7.71

92002A

BOLT,FLANGED,10X46

92002-1740

$7.56

92002B

BOLT,10X41

92002-1741

Unavailable

92002C

BOLT,FLANGED,10X80

92002-1764

$7.36

92002D

BOLT,FLANGED,14X81.5

92002-1979

$9.49

92002E

BOLT,FLANGED,14X107.5

92002-1980

$17.69

92015

NUT,14MM

92015-1411

$9.69

92015A

NUT,FLANGED,10MM

92015-1502

$7.83

92015B

NUT,LOCK,10MM

92015-1597

$4.18

92015C

NUT,LOCK,FLANGED,10MM

92015-1663

$3.29

92022

WASHER,10X22X3.2

92022-176

$4.25

92022A

WASHER,10.2X16X1

92022-1829

$3.29

92033

RING-SNAP,30MM

92033-1218

$7.95

92046

BEARING-NEEDLE

92046-1046

$22.57

92046A

BEARING-NEEDLE,F-202

92046-1150

Unavailable

92046B

BEARING-NEEDLE,F-2016

92046-1151

$14.46

92049

SEAL-OIL,MHA20265.2F

92049-1154

Unavailable

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

320

NUT-CASTLE

320H1000

Unavailable

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
