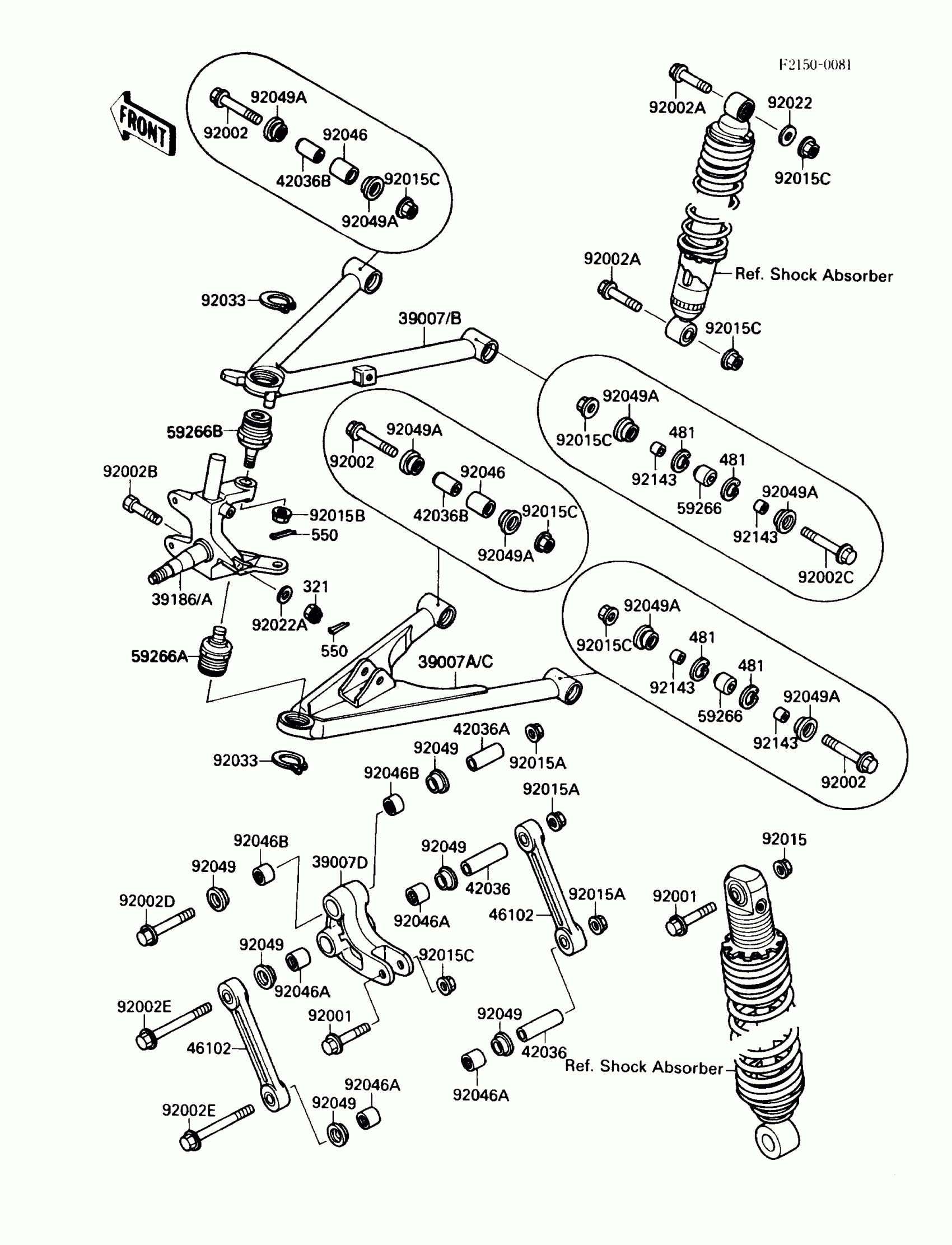

Kawasaki Tecate 4 Suspension(KXF250-A1) Diagram

#

Description
Price

39007

ARM-SUSP,UPP,LH

39007-1121

$65.36

39007A

ARM-SUSP,LWR,LH

39007-1122

$89.93

39007B

ARM-SUSP,UPP,RH

39007-1123

Unavailable

39007C

ARM-SUSP,LWR,RH

39007-1124

$86.24

39007D

ARM-SUSP,UNI TRAK

39007-1125

$180.80

39186

KNUCKLE,LH

39186-1069

$287.67

39186A

KNUCKLE,RH

39186-1070

$287.67

42036

SLEEVE,L=65

42036-1174

Unavailable

42036A

SLEEVE,L=49

42036-1175

$30.44

42036B

SLEEVE,10X17X40

42036-1183

$16.83

46102

ROD,SUSPENSION

46102-1201

$104.24

59266

JOINT-BALL

59266-1011

$58.78

59266A

JOINT-BALL

59266-1064

$95.24

59266B

JOINT-BALL

59266-1075

$99.07

92001

BOLT,10X50

92001-1913

$8.24

92002

BOLT,FLANGED,10X61

92002-1738

$7.71

92002A

BOLT,FLANGED,10X46

92002-1740

$7.56

92002B

BOLT,10X41

92002-1741

Unavailable

92002C

BOLT,FLANGED,10X80

92002-1764

$7.36

92002D

BOLT,FLANGED,14X81.5

92002-1979

$9.49

92002E

BOLT,FLANGED,14X107.5

92002-1980

$17.69

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,14MM

92015-1411

$9.69

92015B

NUT,FLANGED,10MM

92015-1502

$7.83

92015C

NUT,LOCK,10MM

92015-1597

$4.18

92022

WASHER,10X22X3.2

92022-176

$4.25

92022A

WASHER,10.2X16X1

92022-1829

$3.29

92033

RING-SNAP,30MM

92033-1218

$7.95

92046

BEARING-NEEDLE

92046-1046

$22.57

92046A

BEARING-NEEDLE,F-202

92046-1150

Unavailable

92046B

BEARING-NEEDLE,F-2016

92046-1151

$14.46

92049

SEAL-OIL,MHA20265.2F

92049-1154

Unavailable

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92143

COLLAR,10X17X12

92143-1010

$8.92

321

NUT-CASTLE

321H1000

Unavailable

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.22

550

PIN COTTER 2.0X15

550D2015

Unavailable
