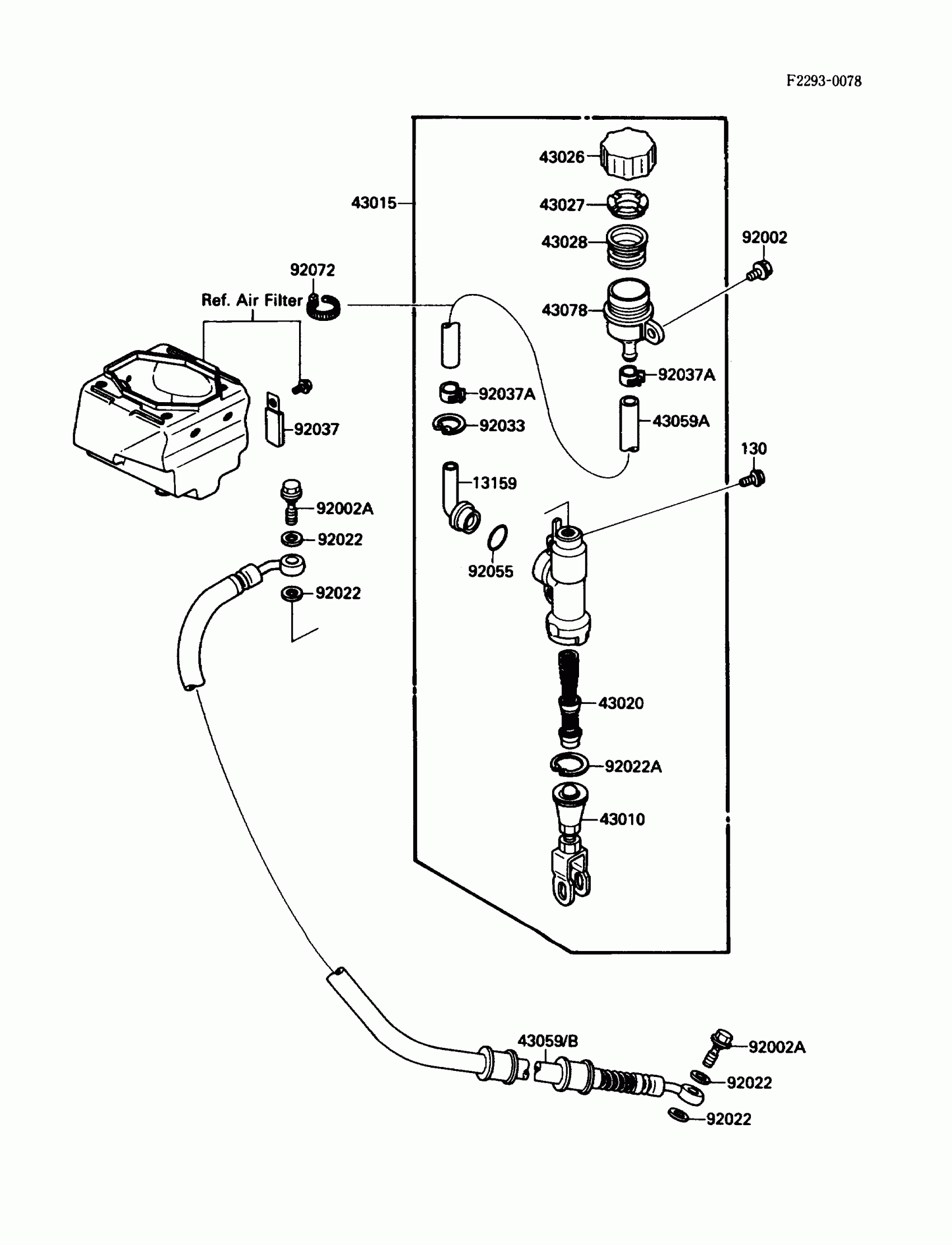

Kawasaki Tecate 4 Rear Master Cylinder Diagram

Description

Price

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1058

$73.82

43015

CYLINDER-ASSY-MASTER,RR

43015-1347

$276.07

43020

PISTON-COMP-BRAKE

43020-1073

$58.51

43026

CAP-BRAKE

43026-1058

$34.24

43027

PLATE-DIAPHRAGM

43027-1052

$3.88

43028

DIAPHRAGM

43028-1060

$16.34

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1403

$16.97

43059B

HOSE-BRAKE,RR

43059-1426

$114.17

43078

RESERVOIR

43078-1068

$28.80

92002

BOLT,FLANGED,6X12

92002-1350

$4.71

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP

92037-1710

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

130

BOLT-FLANGED,8X14

130S0814

Unavailable
