1988 Kawasaki Tecate 4 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1988 Kawasaki Tecate 4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

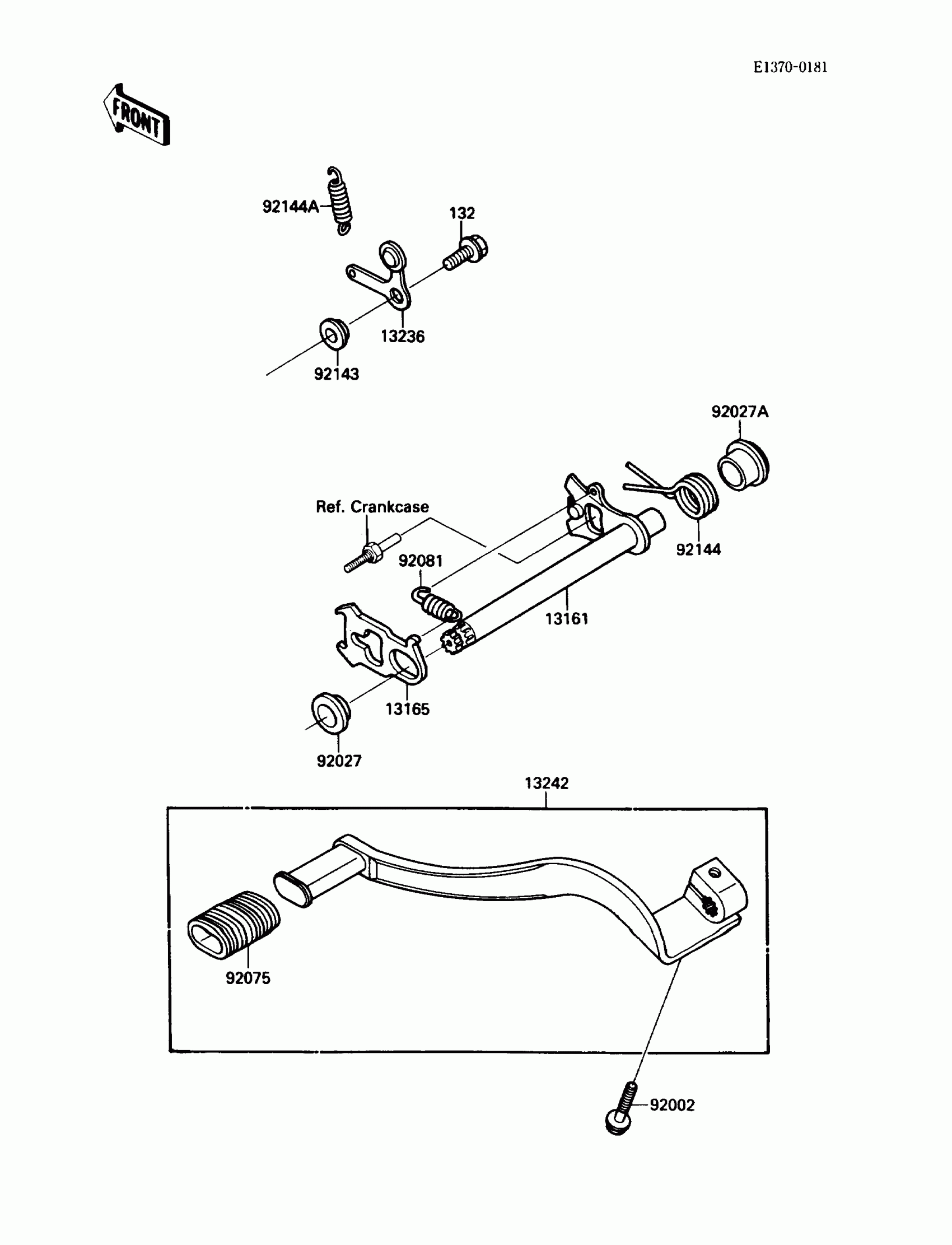

1988 Kawasaki Tecate 4 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHAFT

13161-1143

1
Out of stock

13165

PAWL,CHANGE LEVER

13165-1122

1
Out of stock

13236

LEVER-COMP,POSITION

13236-1155

1
Out of stock

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1230

1
Out of stock

92002

BOLT,6X25

92002-1339

1
Out of stock

92027

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

1
Out of stock

92027A

COLLAR

92027-1940

1
Out of stock

92075

DAMPER

92075-1585

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-076

1
Out of stock

92143

COLLAR

92143-1055

1
Out of stock

92144

SPRING,CHANGE SHAFT RETURN

92144-1142

1
Out of stock

92144A

SPRING,POSITION LEVER

92144-1182

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock
