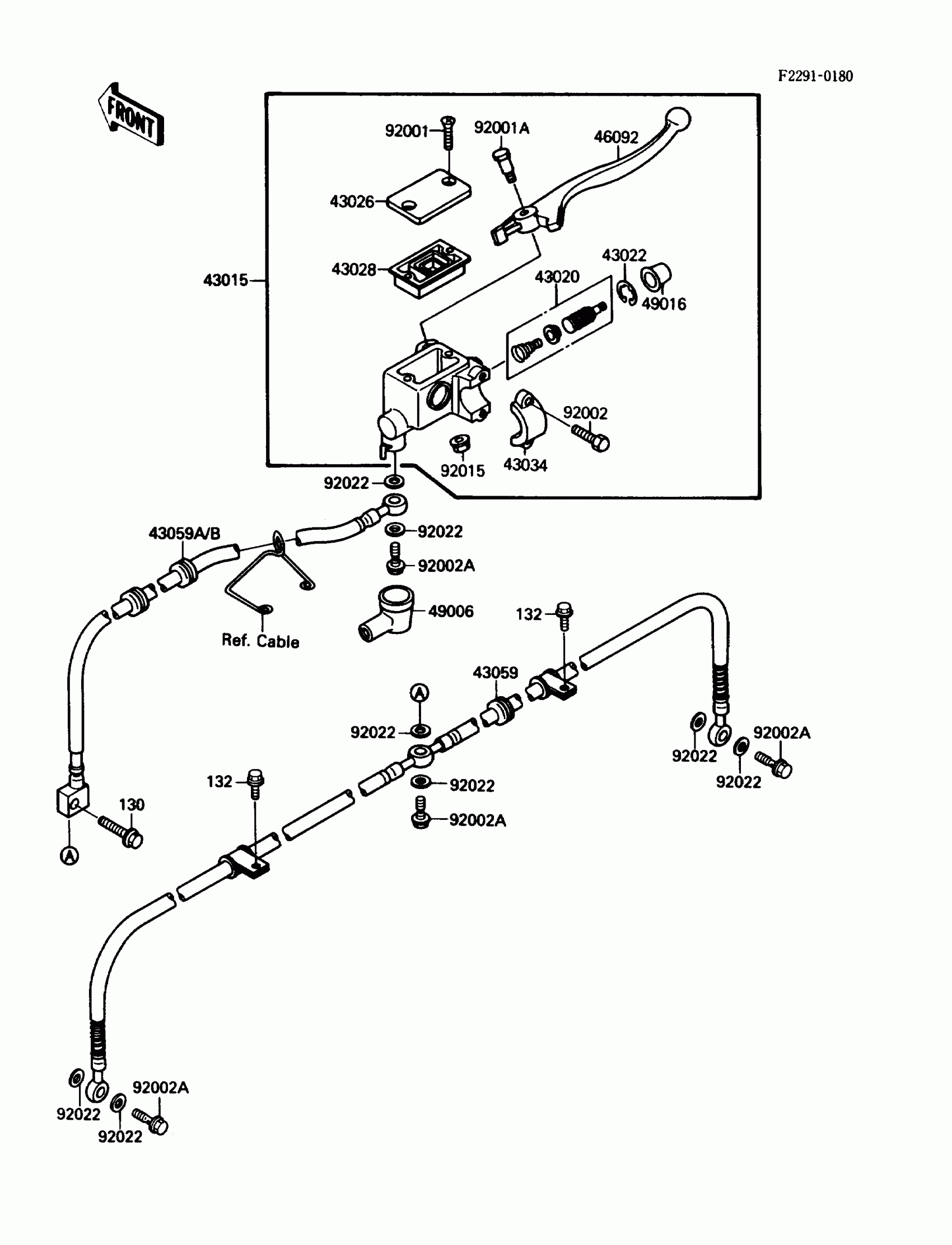

Kawasaki Tecate 4 Front Master Cylinder Diagram

Description

Price

43015

CYLINDER-ASSY-MASTER,FR

43015-1360

$444.57

43020

PISTON-COMP-BRAKE

43020-1031

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1022

$52.90

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43059

HOSE-BRAKE,FR

43059-1389

$296.29

43059B

HOSE-BRAKE,FR

43059-1425

$147.84

46092

LEVER-GRIP,FRONT BRAKE

46092-1144

Unavailable

49006

BOOT,DUST

49006-1040

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

SCREW,5MM,BLACK

92001-1727

$3.14

92001A

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT

92002-1860

$4.18

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

WASHER,10.5X15X1.5

43067-001

$1.57

130

BOLT-FLANGED,8X25

130G0825

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132G0610

Unavailable
