1992 Yamaha TDM850 CA (TDM850DC) Tailight Diagram

← All diagrams

Find the part on the Tailight diagram for your 1992 Yamaha TDM850 CA (TDM850DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

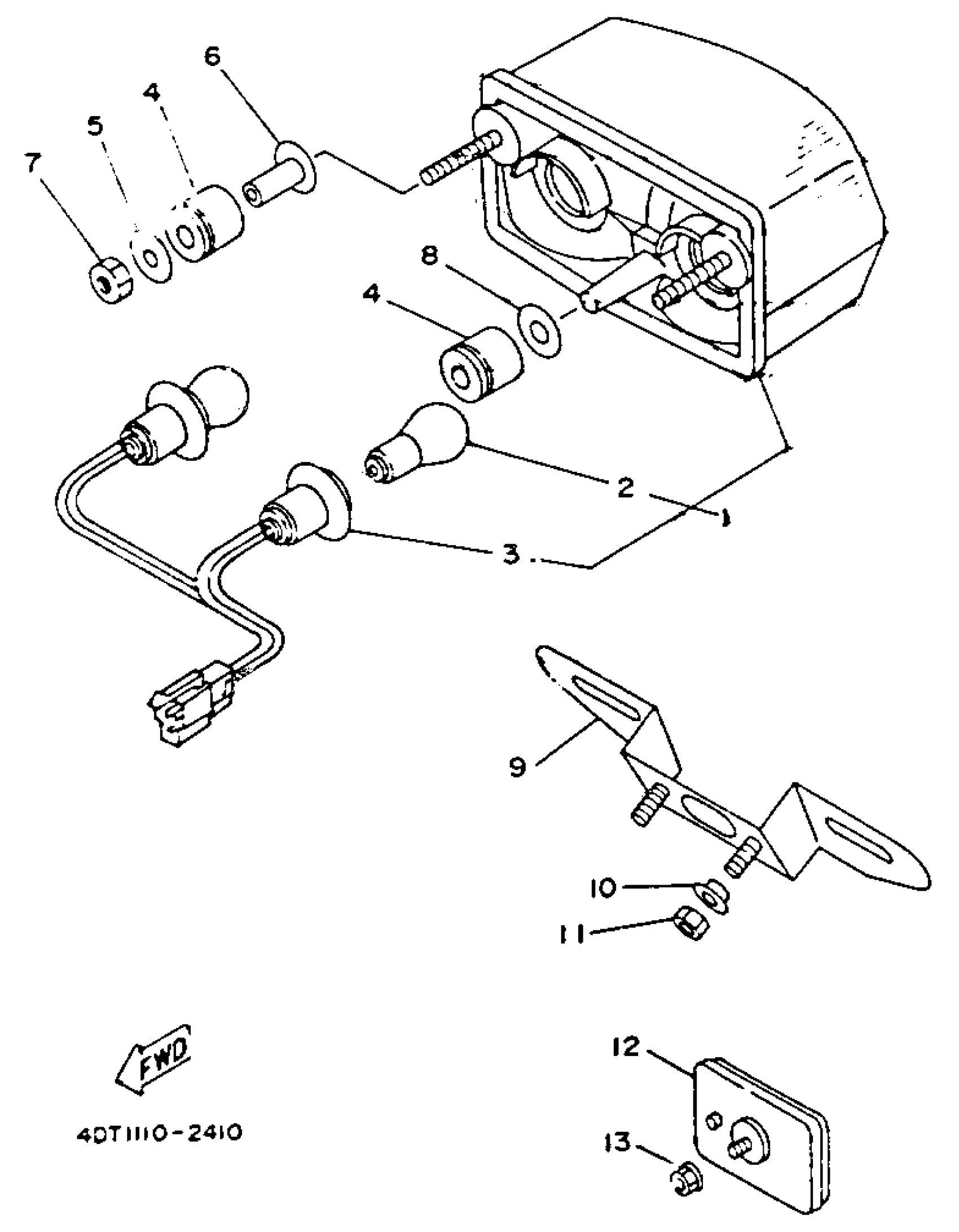

1992 Yamaha TDM850 CA (TDM850DC) Tailight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

3LK-84710-20-00

1
Out of stock

2

BULB

1A2-84714-50-00

1

$12.17

In stock

3

CORD ASSY

3LK-8473A-00-00

1
Out of stock

4

GROMMET

90480-18407-00

1
Out of stock

5

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

6

COLLAR

90387-062W3-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, PLAIN(3BM)

92907-10200-00

1
Out of stock

9

BRACKET,LICENSE

4DU-84751-00-90

1
Out of stock

10

COLLAR (3L1)

90387-07717-00

1
Out of stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

REAR REFLECTOR ASSY

4KM-85130-00-00

1

$20.34

In stock

13

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock
