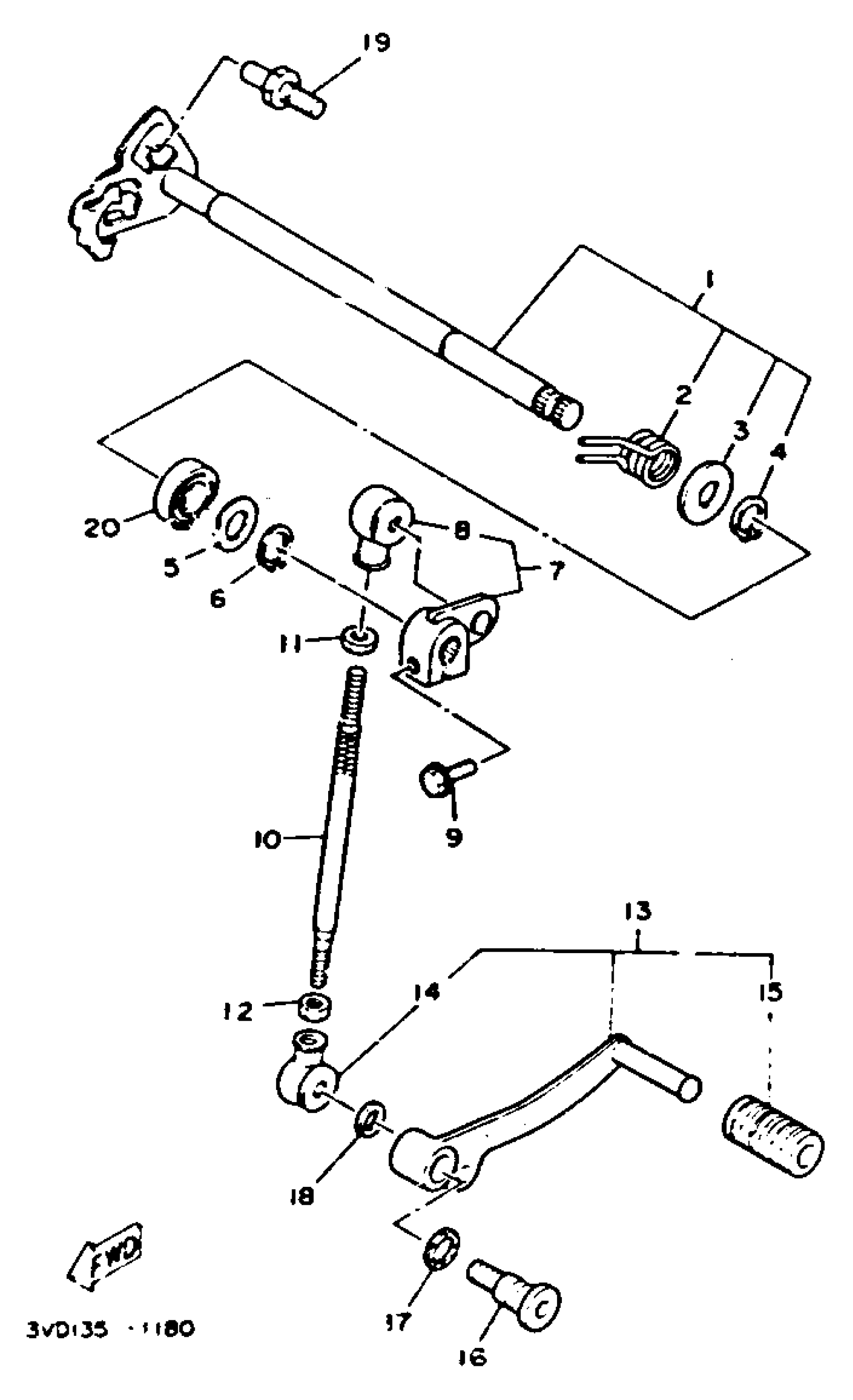

Yamaha TDM850DC (TDM850 CA) 1992 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASY.1

3LD-18101-02-00

Unavailable

2

SPRING, TORSION

90508-32142-00

$4.58

3

WASHER, PLATE(39K)

90201-191J4-00

$3.52

4

CIRCLIP(1EY)

99009-19400-00

$5.87

5

WASHER, PLATE (353)

90201-12575-00

$5.87

6

CIRCLIP

99006-10600-00

$6.59

7

SHIFT SHAFT ASSEMBLY.

3LD-18130-00-00

Unavailable

8

COVER, DUST

2H9-18154-00-00

$4.79

9

BOLT, FLANGE

95817-06020-00

$2.57

10

ROD, SHIFT

3VD-18115-00-00

$24.84

11

NUT (2H9)

90170-06228-00

$6.47

12

NUT(650)

95380-06700-00

$5.87

13

SHIFT PEDAL ASY

3VD-18110-10-00

Unavailable

14

COVER, DUST

2H9-18154-00-00

$4.79

15

COVER, CHANGE PEDAL

132-18113-01-00

$6.08

16

BOLT

4BP-27434-11-00

Unavailable

17

WASHER, WAVE (17W)

90206-12074-00

Unavailable

18

WASHER (853)

90201-08326-00

Unavailable

19

STOPPER, SCREW

5VK-18127-00-00

Unavailable

20

SEAL, OIL (30X)

93102-12321-00

Unavailable
