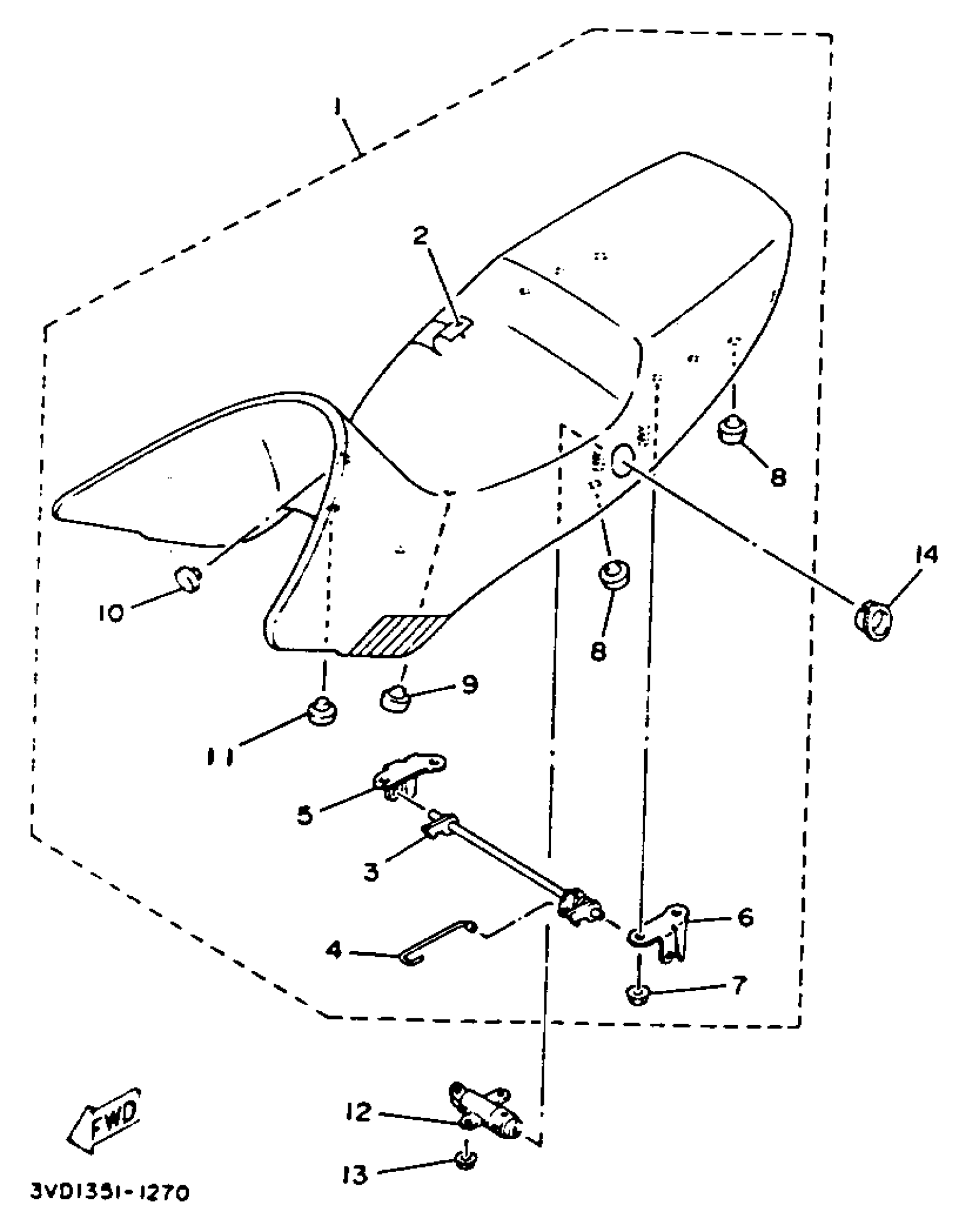

Yamaha TDM850DC (TDM850 CA) 1992 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASY

3VD-24730-20-00

Unavailable

2

COVER,SEAT

3VD-2470F-20-00

Unavailable

3

. LEVER, SEAT

3VD-24776-00-00

Unavailable

4

. ROD, CONNECTING

1JK-2478F-00-00

Unavailable

5

. BRACKET, SEAT

3VD-24728-00-00

Unavailable

6

. BRACKET, SEAT

3VD-24718-00-00

Unavailable

7

NUT, FLANGE(7NB)

95780-06500-00

$1.88

8

PAD, SEAT

1T4-24741-00-00

Unavailable

9

PAD, SEAT

1L9-24741-00-00

$8.49

10

PAD, SEAT

116-24741-00-00

Unavailable

11

PAD, SEAT

22W-24741-00-00

$7.35

12

SEAT LOCK ASSY

47X-24705-00-00

Unavailable

13

NUT, FLANGE(3GM)

95707-05500-00

$5.88

14

COVER

1AE-24796-00-00

Unavailable
