1970 Yamaha TD2 (TD2) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1970 Yamaha TD2 (TD2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

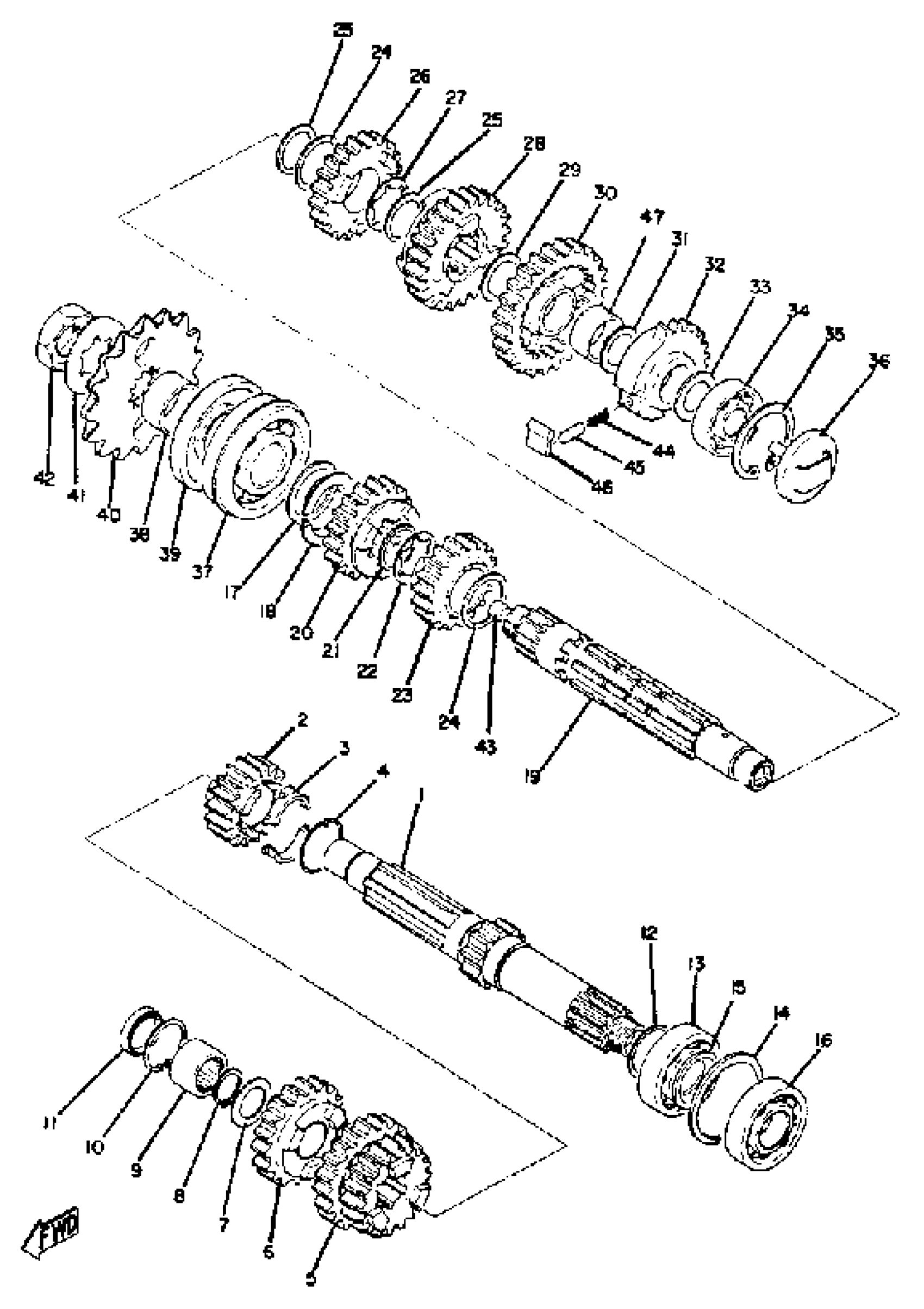

1970 Yamaha TD2 (TD2) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(177-17411-00-00)

1
Out of stock

2

GEAR, 2ND PINION

(246-17121-00-00)

1
Out of stock

3

PLATE, SETTING

(156-17115-00-00)

1
Out of stock

4

CLIP

(90468-14036-00)

1
Out of stock

5

GEAR, 3RD PINION

(240-17131-00-00)

1
Out of stock

6

GEAR, 4TH PINION

(157-17141-00-00)

1
Out of stock

6

GEAR, 4TH PINION

(240-17141-00-00)

1
Out of stock

7

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

8

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

9

BEARING, CYLINDER.#11

(93311-21704-00)

1
Out of stock

10

CIRCLIP

99009-25500-00

1

$5.62

In stock

11

PLUG, BLIND

(156-17481-00-00)

1
Out of stock

12

SHIM 1

156-17417-00-01

1
Out of stock

13

BEARING(1FF)

93306-00519-00

1

$31.24

In stock

14

CIRCLIP, INNER

(93450-47011-00)

1
Out of stock

15

SPACER

(90560-25044-00)

1
Out of stock

16

BRG,R-B 6005 47MM 85G KY

93306-00507-00

—

$36.14

In stock

17

SHIM 2

(156-17428-00-00)

1
Out of stock

18

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

19

AXLE, DRIVE

(156-17421-00-00)

1
Out of stock

20

GEAR, 4TH WHEEL

(157-17241-00-00)

1
Out of stock

21

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

22

WASHER, SPEC''L SHAP

(90209-21081-00)

1
Out of stock

23

GEAR, 5TH WHEEL

(157-17251-00-00)

1
Out of stock

24

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

25

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

26

GEAR, 3RD WHEEL

(177-17231-00-00)

1
Out of stock

26

GEAR, 3RD WHEEL

(240-17231-00-00)

1
Out of stock

27

WASHER, SPEC''L SHAP

(90209-21081-00)

1
Out of stock

28

GEAR, 2ND WHEEL

(145-17221-00-00)

1
Out of stock

28

GEAR, 2ND WHEEL

(240-17221-00-00)

1
Out of stock

29

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

30

GEAR, 1ST WHEEL

(145-17211-02-00)

1
Out of stock

31

WASHER, PLATE

(90201-20268-00)

1
Out of stock

32

GEAR, KICK PINION

(156-15631-00-00)

1
Out of stock

33

SHIM 1

(156-17427-00-06)

1
Out of stock

33

SHIM 1

(156-17427-00-07)

1
Out of stock

33

SHIM 1

(156-17427-00-08)

1
Out of stock

34

—

$31.64

In stock

35

CIR-CLIP (70R)

93420-40064-00

—
Out of stock

36

BUCKET, OIL 1

(156-17488-00-00)

1
Out of stock

37

BEARING

93306-30502-00

1
Out of stock

38

COLLAR(1AE)

90387-253M9-00

—

$34.15

In stock

39

OIL SEAL, SD-TYPE

(93102-30025-00)

1
Out of stock

40

SPROCKET, DRIVE

9383E-16105-00

1
Out of stock

40

SPROCKET, DRIVE

(170-17461-80-00)

1
Out of stock

40

SPROCKET, DRIVE

(170-17461-90-00)

1
Out of stock

40

COLLAR, DISTANCE

(170-17462-00-00)

1
Out of stock

40

SPROCKET, DRIVE

(9383E-17122-00)

1
Out of stock

41

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

42

NUT 152174630000

90179-18020-00

—
Out of stock

43

PLUG, TAPER

(90336-09002-00)

1
Out of stock

44

SPRING, COMPRESSION

(90501-05020-00)

1
Out of stock

45

UNAVAILABLE IN PRICE BOOK

90250-04007-00

1
Out of stock

46

PAWL, KICK

(152-15635-00-00)

1
Out of stock

47

UNAVAILABLE IN PRICE BOOK

90-46020-03-60

1
Out of stock
