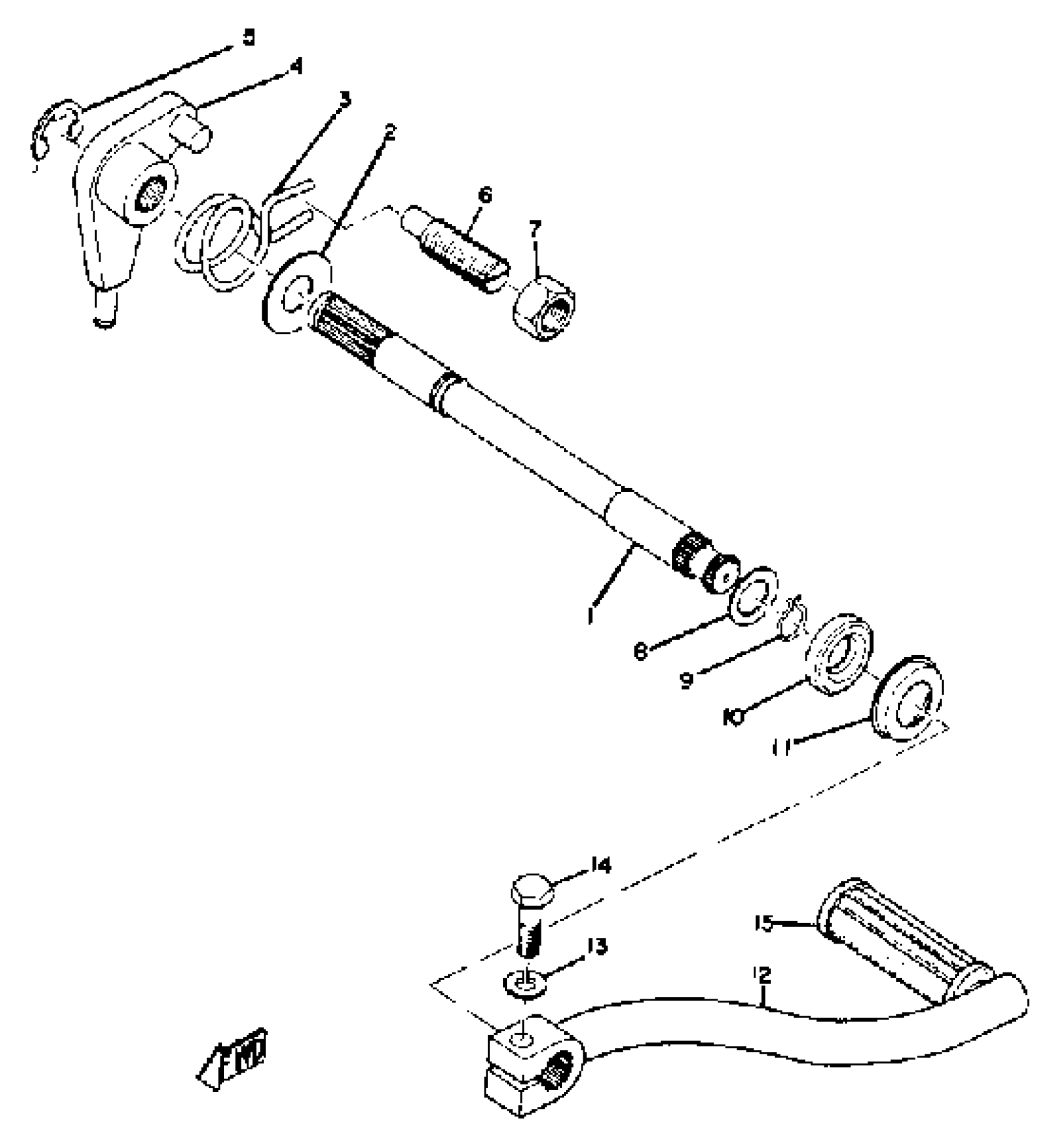

Yamaha TD2 (TD2) 1970 SHIFT SHAFT Diagram

#

Description

Price

1

SHAFT, SHIFT

(170-18125-00-00)

Unavailable

2

WASHER, PLATE

(90201-12186-00)

Unavailable

3

SPRING, TORSION

(90508-40209-00)

Unavailable

4

SHIFT LEVER ASSEMBLY

(150-18120-00-00)

Unavailable

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SCREW, SPEC''L SHAPE

(90149-10045-00)

Unavailable

7

NUT,HEXAGON

90170-10044-00

Unavailable

8

WASHER,PLATE

90201-12168-00

Unavailable

9

CLIP, SHIFT SHAFT

(150-18135-00-00)

Unavailable

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

SEAL, CHANGE SHAFT

170-18132-00-00

Unavailable

12

PEDAL, SHIFT

(240-18111-00-93)

Unavailable

12

PEDAL, SHIFT

(240-18111-10-93)

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

COVER

240-18113-00-00

Unavailable
